Removal - 2013

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Use fender covers to avoid damaging painted surfaces.
  • To avoid damage, unplug the wiring connectors carefully while holding the connector portion.
NOTE:
  • Mark all wiring and hoses to avoid misconnection.
  • For releasing the fuel system pressure before removing the engine assembly, start the engine without fuel pump relay. And then turn off the ignition switch after engine stops.
  1. Remove the engine cover.
  2. Remove the battery and battery tray.

    (Refer to "BATTERY ")

  3. Remove the engine room under cover.

    (Refer to "ENGINE ROOM UNDER COVER ")

  4. Drain the engine coolant.

    (Refer to "COOLANT ")

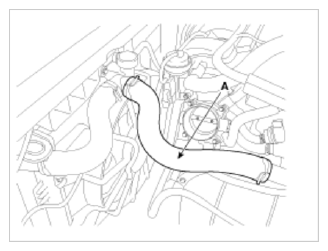

  5. Disconnect the radiator upper hose (A).
    Fig 1: Identifying Radiator Upper Hose
    G09885377Courtesy of HYUNDAI MOTOR AMERICA

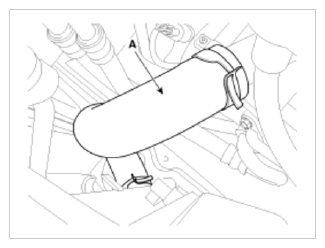

  6. Disconnect the radiator lower hose (A).
    Fig 2: Identifying Radiator Lower Hose
    G09885378Courtesy of HYUNDAI MOTOR AMERICA

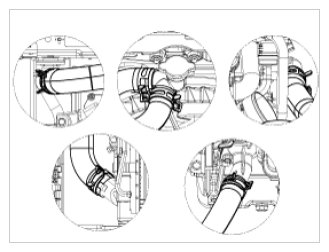

    NOTE: When installing radiator hoses, install as shown in illustrations.
    Fig 3: Identifying Radiator Hoses
    G09885379Courtesy of HYUNDAI MOTOR AMERICA
  7. Recover the refrigerant and then remove the high pressure pipe and low pressure pipe.

    (Refer to "COMPRESSOR ")

  8. Remove the transaxle wire harness connectors and control cable from the transaxle.

    (Refer to "MANUAL TRANSAXLE ")

    (Refer to "AUTOMATIC TRANSAXLE ")

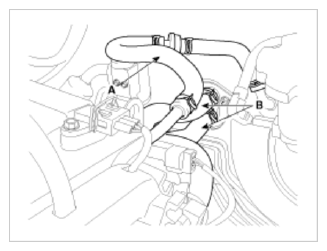

  9. Disconnect the brake booster vacuum hose (A) and the heater hoses (B).
    Fig 4: Identifying Brake Booster Vacuum And Heater Hoses
    G09885380Courtesy of HYUNDAI MOTOR AMERICA

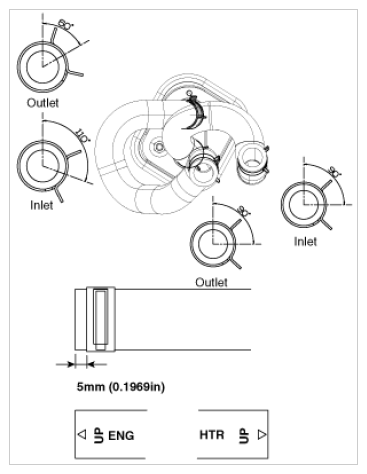

    NOTE: When installing the heater hoses, install as shown in illustrations.
    Fig 5: Identifying Heater Hoses Angle
    G09885381Courtesy of HYUNDAI MOTOR AMERICA

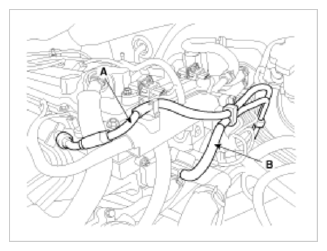

  10. Disconnect the fuel hose (A) and the purge control solenoid valve (PCSV) hose (B).
    Fig 6: Identifying Fuel Hose And Purge Control Solenoid Valve
    G09885382Courtesy of HYUNDAI MOTOR AMERICA

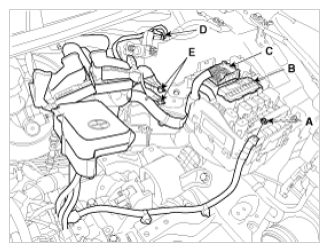

  11. Remove the engine wirings from the engine room.
    1. Remove the (+) cable nut (A).
    2. Disconnect the EMS block (B).
    3. Disconnect the fuse box connector (C).
    4. Disconnect the battery sensor connector (D).
    5. Remove the ground bolts (E).
    6. Remove the engine wirings from the engine room.
      Fig 7: Identifying Engine Wirings, Battery Sensor And Fuse Box Connector
      G09885383Courtesy of HYUNDAI MOTOR AMERICA
  12. Remove the front muffler.

    (Refer to "MUFFLER ")

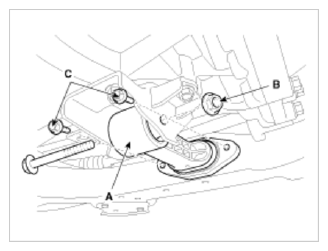

  13. Remove the roll rod bracket (A).

    Tightening torque

    Nut (B):

    107.9 ~ 127.5 N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94.0 lb-ft)

    Bolts (C):

    49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb-ft)

    Fig 8: Identifying Roll Rod Bracket And Nut
    G09885384Courtesy of HYUNDAI MOTOR AMERICA

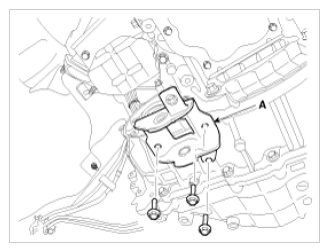

  14. Remove the roll rod mounting support bracket (A).

    Tightening torque:

    49.0 ~ 68.6 N.m (5.0 ~ 7.0 kgf.m, 36.2 ~ 50.6 lb-ft)

    Fig 9: Identifying Roll Rod Mounting Support Bracket
    G09885385Courtesy of HYUNDAI MOTOR AMERICA
  15. Remove the sub frame.

    (Refer to "SUB FRAME ")

    NOTE:
    • After removing the sub frame mounting bolt, the engine and transaxle assembly may fall downward, and so support them securely with floor jack.
    • Verify that the hoses and connectors are disconnected before removing the engine and transaxle assembly.

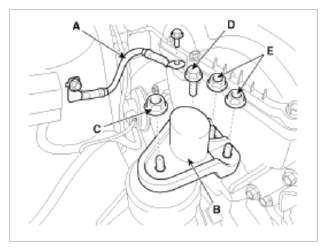

  16. Disconnect the ground cable (A), and then remove the engine mounting bracket (B).

    Tightening torque

    Ground line bolt (A):

    10.8 ~ 13.7 N.m (1.1 ~ 1.4 kgf.m, 8.0 ~ 10.1 lb-ft)

    Nut (C):

    63.7 ~ 83.4 N.m (6.5 ~ 8.5 kgf.m, 47.0 ~ 61.5 lb-ft)

    Bolt (D) and nuts (E):

    58.8 ~ 73.5 N.m (6.0 ~ 7.5 kgf.m, 43.4 ~ 54.2 lb-ft)

    Fig 10: Identifying Engine Mounting Bracket Nut And Bolt
    G09885386Courtesy of HYUNDAI MOTOR AMERICA

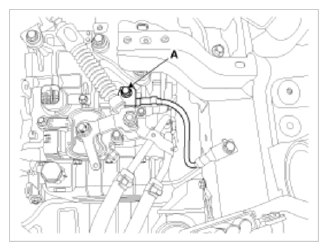

  17. Disconnect the ground line (A), and then slowly loosen the transaxle mounting bolts (B).

    Tightening torque:

    88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.8 lb-ft)

    Fig 11: Identifying Ground Line
    G09885387Courtesy of HYUNDAI MOTOR AMERICA

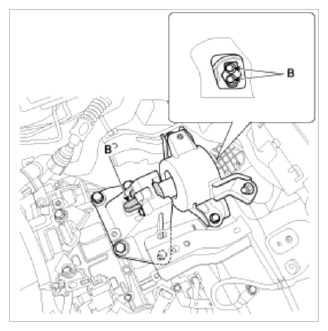

    Fig 12: Identifying Transaxle Mounting Bolts
    G09885388Courtesy of HYUNDAI MOTOR AMERICA

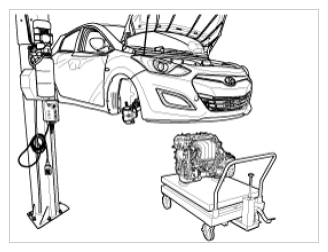

  18. Remove the engine and transaxle assembly by lifting vehicle.
    Fig 13: Removing Engine And Transaxle Assembly
    G09885389Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: When removing the engine and transaxle assembly, be careful not to damage any surrounding parts or body components.
