Circuit diagram: (A/T)

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

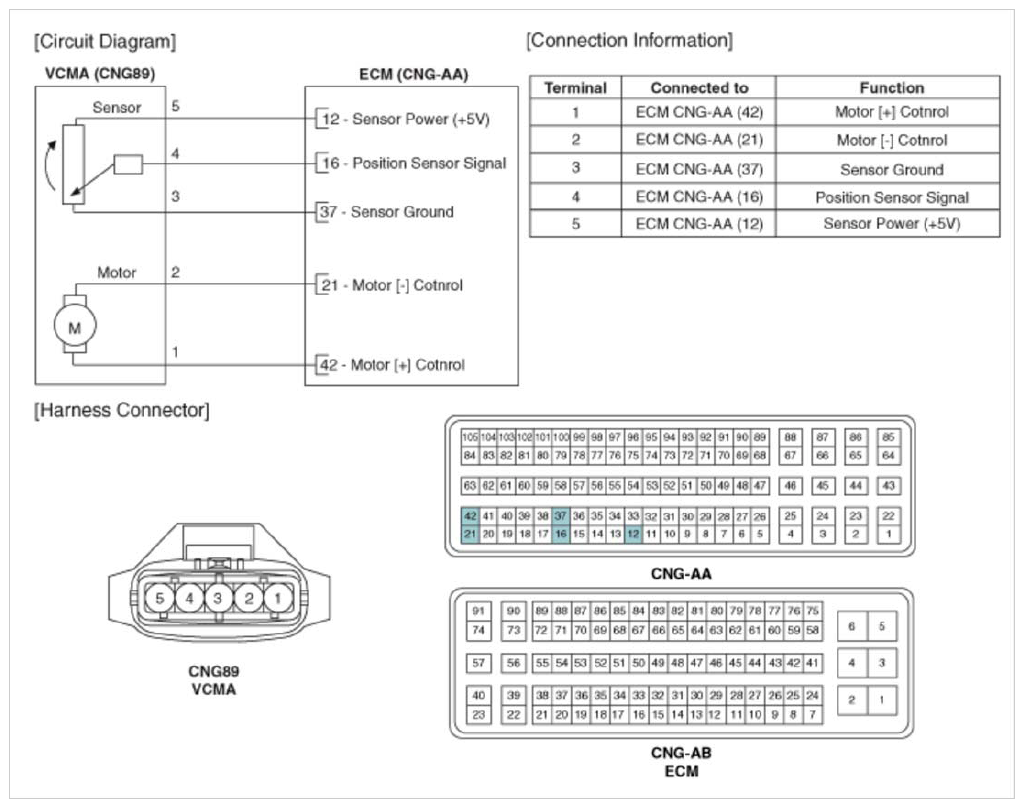

Fig 1: VCMA Schematic Diagrams (A/T)
G09885964Courtesy of HYUNDAI MOTOR AMERICA
