Ambient Air Temperature Sensor: Removal

WARNING: This page is about a different car, the 2018 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .

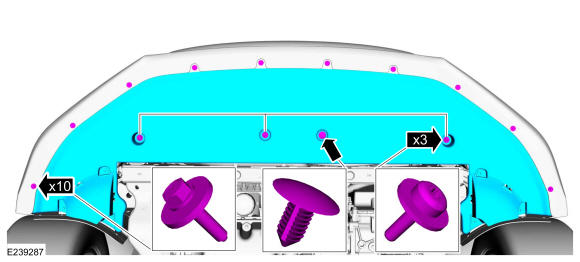

  2. Remove the retainers and the radiator undershield.
    GFD237970Courtesy of FORD MOTOR COMPANY

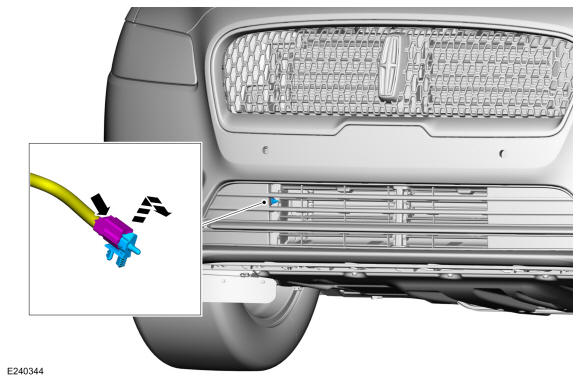

  3. Disconnect the electrical connector and remove the ambient air temperature sensor.
GFD237995Courtesy of FORD MOTOR COMPANY
