Power Transfer Unit

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

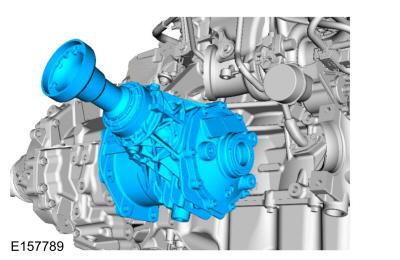

1. Install the PTU.

   Courtesy of FORD MOTOR COMPANY

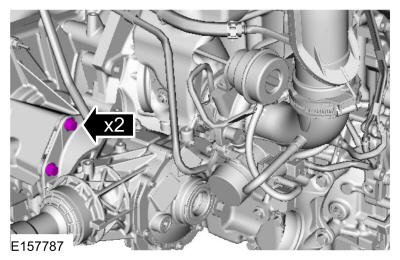

2. Install the new top PTU bolts.

   Torque: 59 lb.ft (80 Nm)

   Courtesy of FORD MOTOR COMPANY

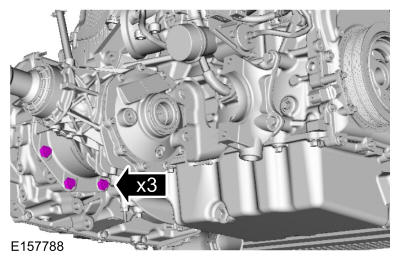

3. Install the new bottom PTU bolts.

   Torque: 59 lb.ft (80 Nm)

   Courtesy of FORD MOTOR COMPANY

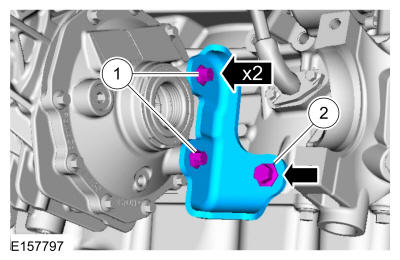

4. Install the PTU support bracket and the support bracket bolts.

   Torque: 1: 18 lb.ft (25 Nm) 2: 46 lb.ft (63 Nm)

   Courtesy of FORD MOTOR COMPANY

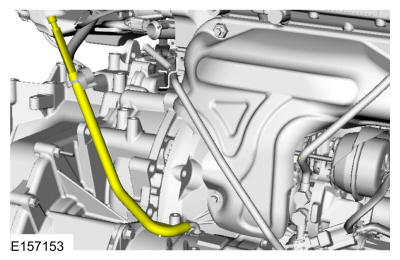

5. Connect the PTU vent hose.

   Courtesy of FORD MOTOR COMPANY

6. Install the front halfshaft RH. Refer to: Front Halfshaft RH .

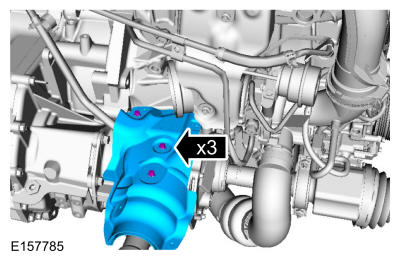

7. Install the PTU heat shield and heat shield bolts.

   Torque: 97 lb.in (11 Nm)

   Courtesy of FORD MOTOR COMPANY

8. Install the catalytic converter. Refer to: Catalytic Converter .

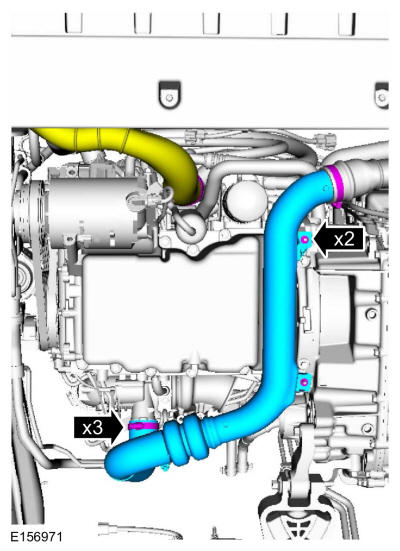

9. • Install the CAC inlet tube and the clamps and retainers.
   • Install the CAC outlet tube and clamp.

   Courtesy of FORD MOTOR COMPANY

10. Remove the PTU filler plug.

    Courtesy of FORD MOTOR COMPANY

11. Fill the PTU with clean fluid, level with the fill plug opening.

    Courtesy of FORD MOTOR COMPANY

12. Install the PTU fill plug.

    Torque: 33 lb.ft (45 Nm)

    Courtesy of FORD MOTOR COMPANY

13. Install the rear driveshaft. Refer to: Rear Driveshaft .
14. If equipped. Install the underbody shield.

Courtesy of FORD MOTOR COMPANY
