Transmission Range Control Module (TRCM): Installation

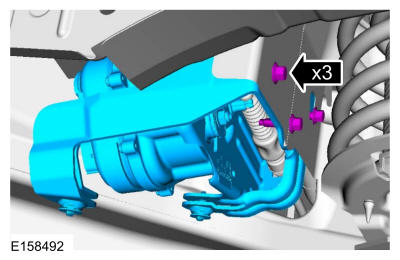

  1. Install the TRCM and tighten the bolts.

    Torque

    : 133 lb.in (15 Nm)

    GFD378866Courtesy of FORD MOTOR COMPANY

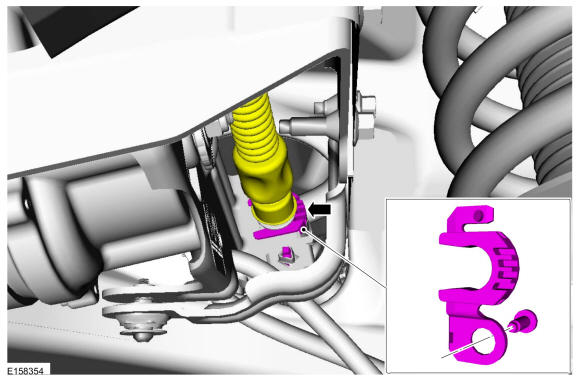

  2. Attach the selector lever cable to the selector lever cable bracket and install the retaining clip bolt.

    Torque

    : 62 lb.in (7 Nm)

    GFD378865Courtesy of FORD MOTOR COMPANY

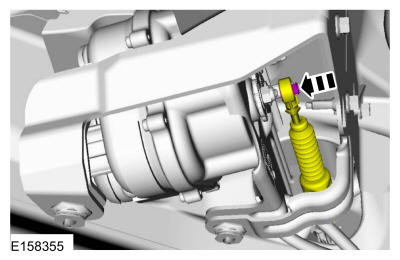

  3. Connect the selector lever cable to the TRCM lever.
    GFD378867Courtesy of FORD MOTOR COMPANY

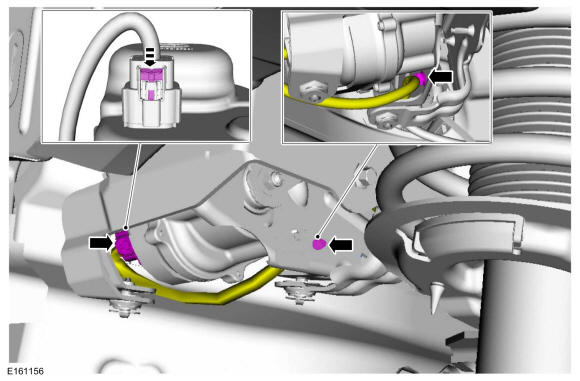

  4. Attach the wiring harness retainer and connect the TRCM electrical connector.
    GFD378868Courtesy of FORD MOTOR COMPANY
  5. Install the RH fender splash shield. Refer to: Fender Splash Shield .
  6. Adjust the selector lever cable.
