Main Control Cover 3.5L GTDI: Installation

Check for damage. Visual check.

Courtesy of FORD MOTOR COMPANY
NOTE: Install the studbolts in the correct locations as noted during disassembly.

Loosely install the bolts.

Courtesy of FORD MOTOR COMPANY
Tighten the main control cover bolts in the sequence shown.
- Tighten to 12 Nm (106 lb-in).
Fig 1: Main Control Cover (3.5L GTDI) Bolt Tightening Sequence
Courtesy of FORD MOTOR CO.
- Tighten to 9 Nm (80 lb-in).
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
- Tighten to 5 Nm (44 lb-in).
Courtesy of FORD MOTOR COMPANY
If equipped.
- Tighten to 70 Nm (52 lb-in).
Courtesy of FORD MOTOR COMPANY
If equipped.

Courtesy of FORD MOTOR COMPANY
- Tighten to 5 Nm (44 lb-in).
Courtesy of FORD MOTOR COMPANY
Fill the transaxle with clean transmission fluid. Refer to Transmission Fluid Drain and Refill .

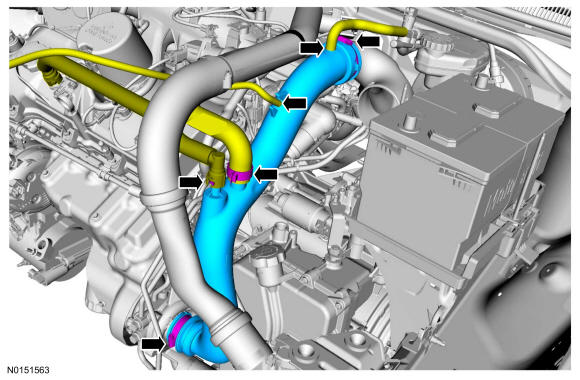

Install the ACL and outlet pipe. REFER to Intake Air Distribution and Filtering .
