Torque Converter Housing: Assembly
-
NOTE: Temporarily install the differential and the transfer shaft in the transmission case.
- Special Tool(s): Shim Gauge, Differential/Transfer Gear Bearing 307-591 (307-591/1 and 307-591/2)
- Special Tool(s): Shim Gauge, Differential/Transfer Gear Bearing 307-591/3 (studs)
-
NOTE: Make sure that the silicone has been cleaned off the machined surface of the transmission case and the torque converter housing before installing the Differential/Transfer Gear Bearing Shim Gauge 307-591/3 (4 spacers) or the preload measurement may be inaccurate.
Special Tool(s): Shim Gauge, Differential/Transfer Gear Bearing 307-591/3 (4 spacers)
- Special Tools(s): Shim Gauge, Differential/Transfer Gear Bearing 307-591/3 (remaining 4 spacers, bolts and washers)
- Tighten to 24 Nm (18 lb-ft).
- Special Tools(s): Shim Gauge, Differential/Transfer Gear Bearing 307-591/3 (4 nuts and washers)
- Tighten to 24 Nm (18 lb-ft).
- Rotate the transfer shaft and the differential several times to seat the bearing cups.

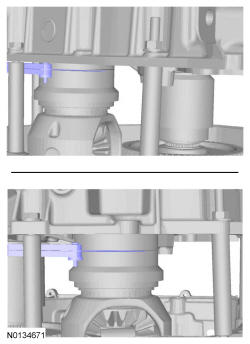

- Measure and record the smallest and largest preload gap on the Shim Gauge, Differential/Transfer Gear Bearing 307-591/1. Average the 2 measurements to get the thickness of the differential bearing preload shim. Refer to Specifications for the differential bearing preload shim part number. General Equipment: Feeler Gauge.

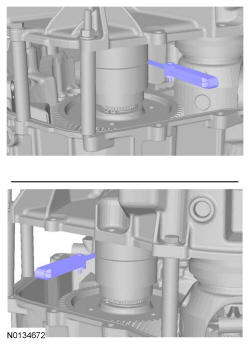

- Measure and record the smallest and largest preload gap on Shim Gauge, Differential/Transfer Gear Bearing 307-591/2. Average the 2 measurements to get the thickness of the transfer shaft bearing preload shim. Refer to Specifications for the transfer gear bearing preload shim part number. General Equipment: Feeler Gauge.
- Special Tool(s): Shim Gauge, Differential/Transfer Gear Bearing 307-591/3 (4 nuts, bolts and spacers and 8 washers)
- Special Tool(s): Shim Gauge, Differential/Transfer Gear Bearing 307-591/3 (4 spacers)
- Special Tool(s): Shim Gauge, Differential/Transfer Gear Bearing 307-591/3 (4 studs)
- Special Tool(s): Shim Gauge, Differential/Transfer Gear Bearing 307-591/1 and 307-591/2
- Assemble the torque converter housing. Refer to Torque Converter Housing .
- Special Tool(s): Handle 205-153 (T80T-4000-W), Oil Dam Seal Installer 307-583
-
NOTE: Support the torque converter housing using blocks of wood, or damage to the torque converter housing may occur.
Special Tool(s): Handle 205-153 (T80T-4000-W), Oil Dam Seal Installer 307-583
- Inspect the transfer shaft fluid dam to be sure it is seated evenly into the torque converter housing. Visual check.
- Special Tool(s): Bearing Cup Installer 307-576 General Equipment: Shop Press
- Special Tool(s): Bearing Cup Installer 307-576

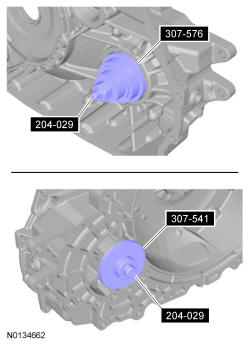

- Special Tool(s): Bearing Cup Installer 307-576, Installer, Transfer Gear Bearing 307-541, Drawbar 204-029
