Low-Reverse Clutch
The low/reverse clutch is a brake clutch that holds the low OWC which is splined to the rear planetary carrier. The low/reverse clutch is applied in manual LOW, REVERSE and 1st gear up to 8 kmh (5 mph).
Hydraulic pressure from the regulator valve, routed through the multiplex shift valve in the valve body, pushes the low/reverse clutch piston against the low/reverse clutch pack to apply the clutch. The rear planetary carrier is held stationary to the transmission case as a result of the clutch being applied.

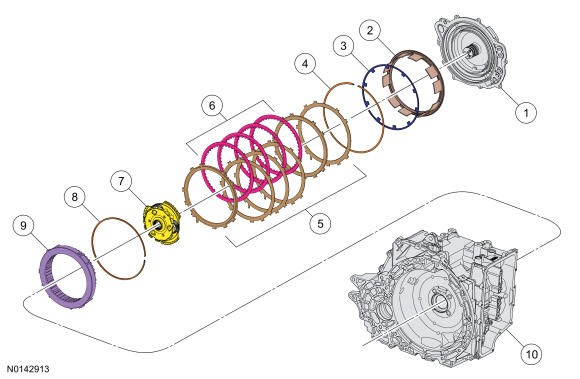

| Item | Description |
|---|---|
| 1 | Cover assembly |
| 2 | Low/reverse clutch piston |
| 3 | Low/reverse clutch piston return spring |
| 4 | Low/reverse clutch return spring snap ring |
| 5 | Low/reverse clutch steel plates |
| 6 | Low/reverse clutch friction plates |
| 7 | Rear planetary carrier |
| 8 | Low OWC snap ring |
| 9 | Low OWC |
| 10 | Transmission case |
