Safety Belt Retractor Third Row: Notes
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

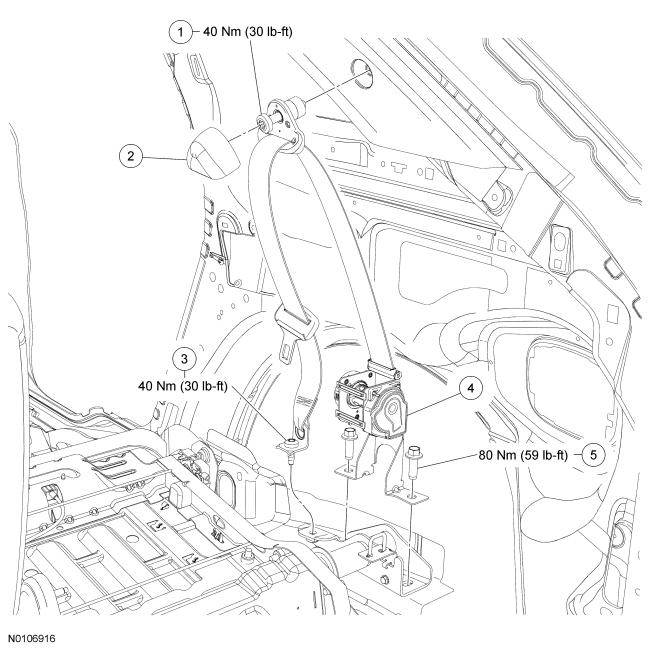

RH, Third Row Safety Belt Retractor
| Item | Part Number | Description |
|---|---|---|
| 1 | - | D-ring bolt (part of 612C16) |
| 2 | 60262 | D-ring cover |
| 3 | - | Anchor bolt (part of 612C16) |
| 4 | 612C16 | RH safety belt retractor |
| 5 | W505285 | RH safety belt retractor bolt (2 required) |

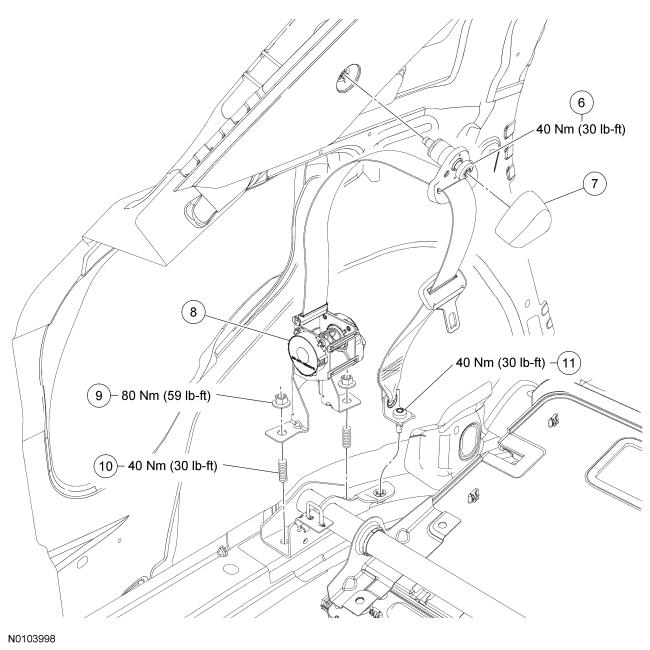

LH, Third Row Safety Belt Retractor
| Item | Part Number | Description |
|---|---|---|
| 6 | - | D-ring bolt (part of 612C17) |
| 7 | 60262 | D-ring cover |
| 8 | 612C17 | LH safety belt retractor |
| 9 | N800937 | Nut (2 required) |
| 10 | W714446 | Two-way stud (2 required) |
| 11 | - | Anchor bolt (part of 612C17) |
