Safety Belt Buckle Third Row: Notes

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

NOTE: RH shown, LH similar.

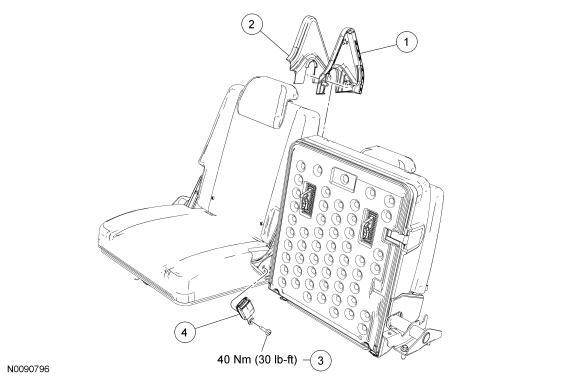

Fig 1: Safety Belt Buckle Third Row With Torque Specifications
GFD96017Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - LH inboard pivot cover
2 - RH inboard pivot cover
3 - RH safety belt buckle bolt (part of 613D48)
4 613D48 RH safety belt buckle
