Cylinder Head: Assembly

WARNING: This page is about a different variant/trim than selected.

All cylinder heads

  1. Install the valve.
    GFD91699Courtesy of FORD MOTOR COMPANY
  2. NOTE: Lubricate the valve stem seal with clean engine oil prior to installation.

    Using the Valve Stem Oil Seal Installer, install a new valve stem seal.

    GFD91703Courtesy of FORD MOTOR COMPANY

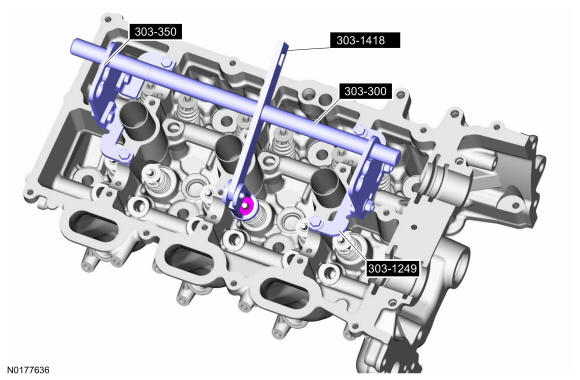

  3. Using the Valve Spring Compressors, install the valve spring, retainer and key.
    GFD231092Courtesy of FORD MOTOR COMPANY
  4. Repeat the above steps for each valve.
  5. Install the timing chain guide pin.

    • Tighten to 10 Nm (89 lb-in).

    GFD91700Courtesy of FORD MOTOR COMPANY

    RH cylinder head

  6. Install the timing chain tensioner arm pin.

    • Tighten to 10 Nm (89 lb-in).

    GFD91701Courtesy of FORD MOTOR COMPANY
  7. Install a new CHT sensor.

    • Tighten to 10 Nm (89 lb-in).

GFD91702Courtesy of FORD MOTOR COMPANY
