Window Glass Roof: Notes
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Special Tool(s)
| Deluxe Windshield Removal Tool 164-R2450 or equivalent | |
| The Pumper 164-R2459 or equivalent |
Material
| Item | Specification |
| Urethane Adhesive: Sika ® SikaTack ® MACH 60 or Sika ® SikaTack ® MACH 30 or Dow ® BETASEAL™ Express- | - |
| Dow Urethane One Step Glass PrimerBetaprime™ 5500 / 5500A / 5500SA | - |
| Motorcraft ® Ultra-Clear Spray Glass Cleaner ZC-23 | ESR-M14P5-A |
NOTE:
A new replacement glass panel must be installed whenever a glass panel has been removed.

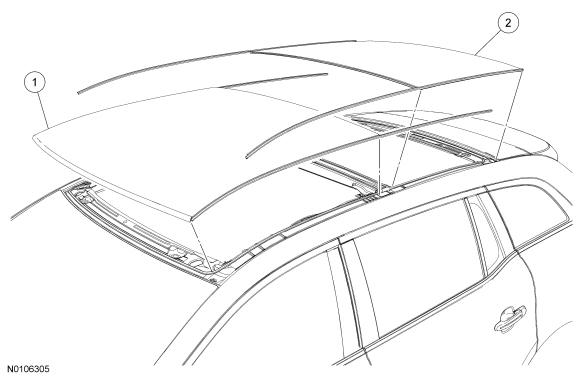

| Item | Part Number | Description |
|---|---|---|
| 1 | 500A18 | Front roof glass panel |
| 2 | 500A18 | Rear roof glass panel |
