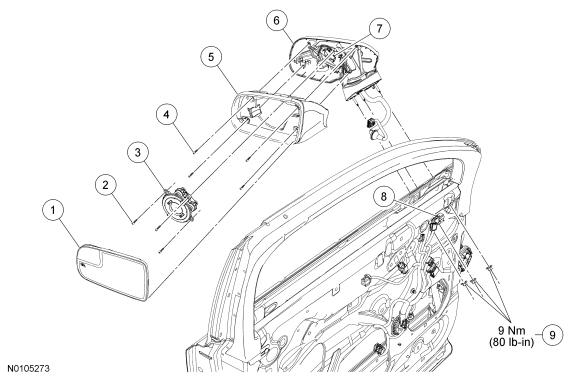

Exterior Mirrors Exploded View
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
NOTE:
LH shown, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 17K707 | Exterior mirror glass |
| 2 | - | Exterior mirror motor screw (part of 17D696) (3 required) |
| 3 | 17D696 | Exterior mirror motor |
| 4 | - | Exterior mirror bezel screw (part of 17683 LH/ 17682 RH) |
| 5 | - | Exterior mirror bezel (part of 17683 LH/ 17682 RH) |
| 6 | 17683 LH/ 17682 RH LH/ 17682 RH | Exterior mirror |
| 7 | - | Exterior mirror electrical connector (part of 17683 LH/ 17682 RH) |
| 8 | - | Electrical connector (part of 14631 LH/ 14630 RH) |
| 9 | N621906 | Exterior mirror nuts (3 required) |
- For additional information, refer to the procedures in this article.
