Exterior Mirror Control Switch: Notes

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

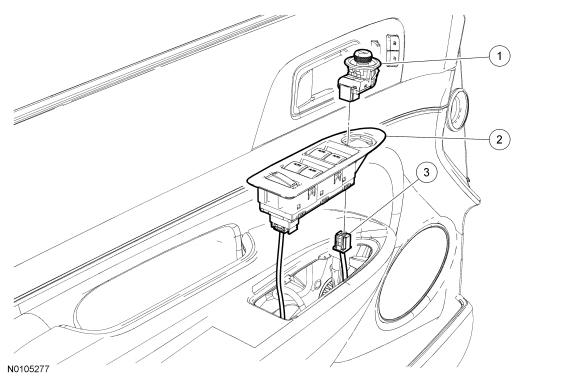

GFD95168Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 17B676 Exterior mirror control switch
2 14524 Switch bezel
3 14631 Exterior mirror control switch electrical connector
