Transfer Case Draining and Filling

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Materials

Draining

1. Follow the health and safety precautions. Refer to: Health and Safety Precautions .
2. With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
3. If equipped. Remove the retainers and the underbody shield.

   Courtesy of FORD MOTOR COMPANY

4. Remove the PTU drain plug.

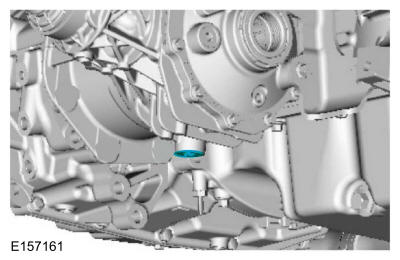

   Courtesy of FORD MOTOR COMPANY

5. Install the PTU drain plug.

   Torque: 33 lb.ft (45 Nm)

Courtesy of FORD MOTOR COMPANY

Filling

1. Remove the PTU fill plug.

   Courtesy of FORD MOTOR COMPANY

2. Fill the PTU with clean fluid, level with the fill plug opening.

   Material: Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant / XY-75W140-QL (WSL-M2C192-A)

   Courtesy of FORD MOTOR COMPANY

3. Install the PTU fill plug.

   Torque: 33 lb.ft (45 Nm)

   Courtesy of FORD MOTOR COMPANY

4. If equipped. Install the underbody shield.

Courtesy of FORD MOTOR COMPANY
