Transmission Fluid Cooler: Installation

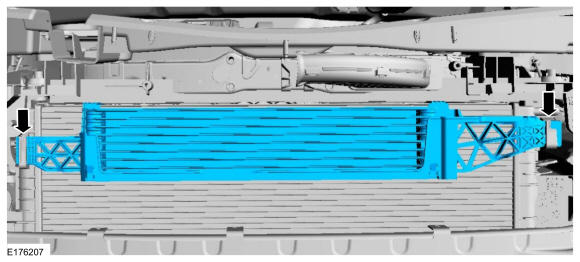

Install the transmission fluid cooler.

Courtesy of FORD MOTOR COMPANY

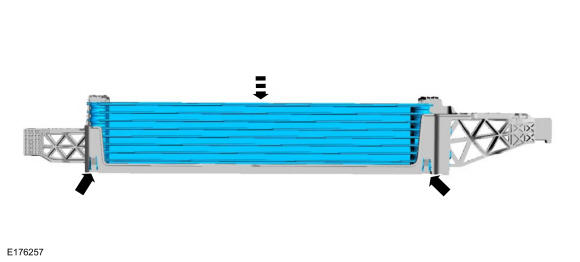

Install the transmission fluid cooler and bracket.

Courtesy of FORD MOTOR COMPANY

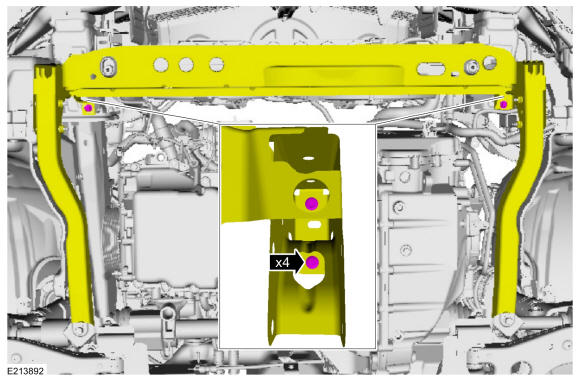

Raise the cooling module and install the cooling module support bracket bolts.
Torque:

159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY

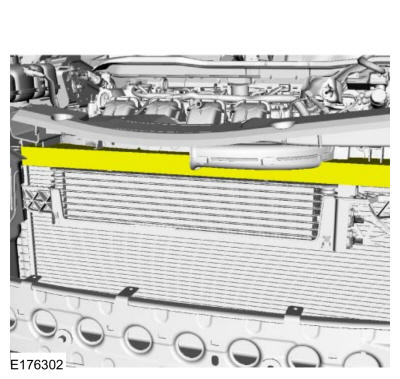

Verify the foam insulation is in place. Install new foam insulation if necessary.

Courtesy of FORD MOTOR COMPANY

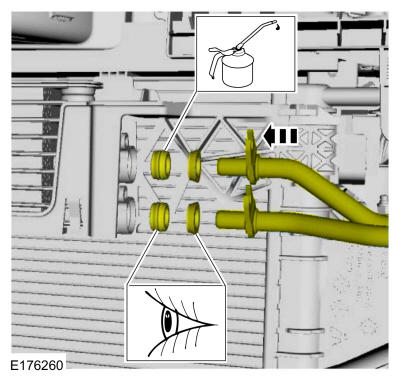

Inspect the transmission fluid cooler tube seals and backing rings. If necessary, install new seals and backing rings. Lubricate the seals and backing rings.
Material:

Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)

Courtesy of FORD MOTOR COMPANY

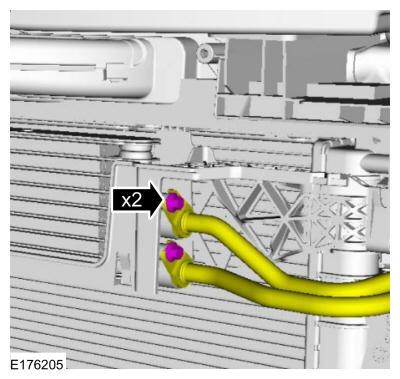

Install the transmission fluid cooler tube-to-transmission fluid cooler bolts.
Torque:

97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

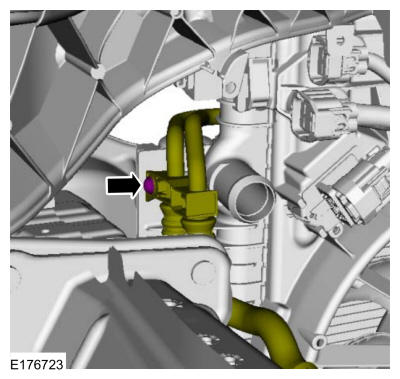

Install the transmission fluid cooler tube bracket bolt.
Torque:

44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
Install the active grille shutters. Refer to: Active Grille Shutter .
Check the transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check .
