Home >> Lincoln >> 2019 >> MKC Select, AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission External Controls >> Removal And Installation >> Upshift Paddle Switch >> Removal

Upshift Paddle Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the driver airbag. Refer to: Driver Airbag .

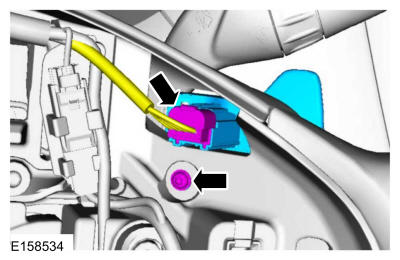

  2. Remove the upshift paddle switch.
    • Disconnect the upshift paddle switch electrical connector.
    • Remove the screw and the upshift paddle switch.

      Torque: 44 lb.in (5 Nm)

GFD395261Courtesy of FORD MOTOR COMPANY
