Selector Lever Cable: Removal

  1. Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe 2.3L EcoBoost .
  2. Remove the air cleaner. Refer to: Air Cleaner 2.0L EcoBoost .
  3. Apply the parking brake.
    GFD395233Courtesy of FORD MOTOR COMPANY
  4. Disconnect the selector lever cable from the transmission manual lever, remove the bolt and the clip.
    GFD395248Courtesy of FORD MOTOR COMPANY

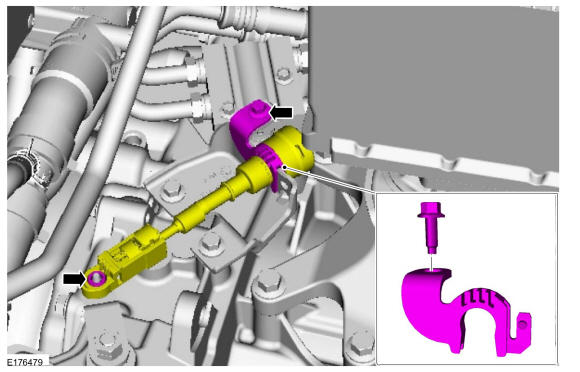

  5. Disconnect the selector lever cable retainers.
    GFD395249Courtesy of FORD MOTOR COMPANY
  6. Disconnect the selector lever cable from the TRCM, remove the selector lever cable bolt and clip and remove the selector lever cable.
GFD395250Courtesy of FORD MOTOR COMPANY
