Gear Shift Module (GSM): Removal

NOTE: It is not necessary to carry out a PMI when installing a new GSM unless specifically instructed to do so in a TSB, GSB, FSA or SSM.

NOTE: Removal steps in this procedure may contain installation details.

Remove the FCIM. Refer to: Front Controls Interface Module (FCIM) . Refer to: Front Controls Interface Module (FCIM) .

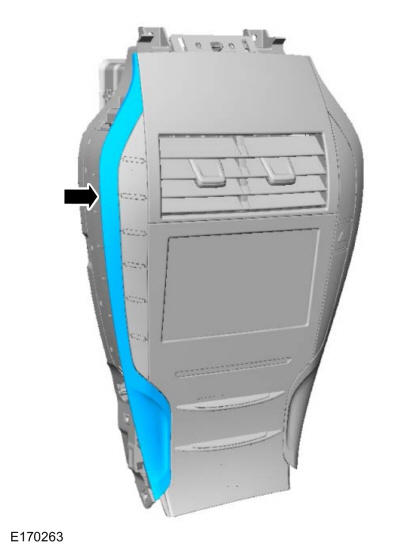

Remove the trim panel.

Courtesy of FORD MOTOR COMPANY

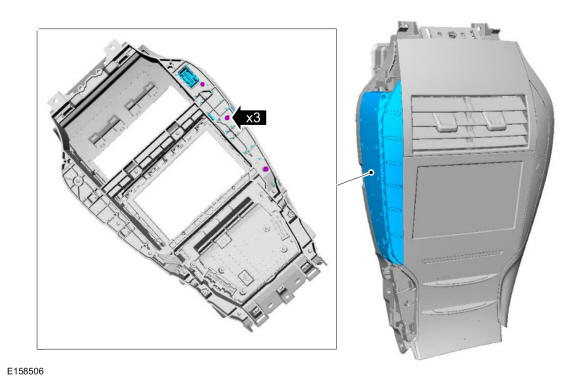

Remove the screws and the GSM.

Courtesy of FORD MOTOR COMPANY
