Steering Wheel: Removal

NOTE: To prevent damage to the clockspring, make sure the front wheels are in the straight-ahead position.

NOTE: Removal steps in this procedure may contain installation details.

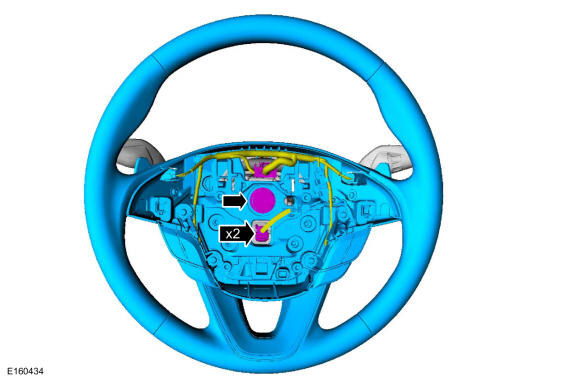

NOTE: Heated steering wheel shown, non-heated steering wheel similar.

Remove the driver airbag. Refer to: Driver Airbag .
Torque:
35 lb.ft (47.5 Nm)

Courtesy of FORD MOTOR COMPANY

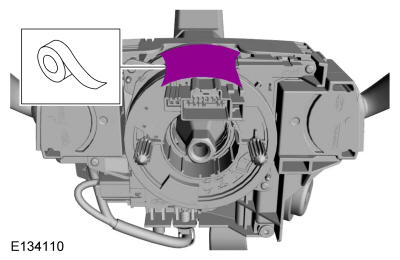

NOTE: Make sure the clockspring rotor does not rotate.

NOTE: Make sure the clockspring pins are not bent or damaged.

Courtesy of FORD MOTOR COMPANY
