Ambient Air Temperature Sensor: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

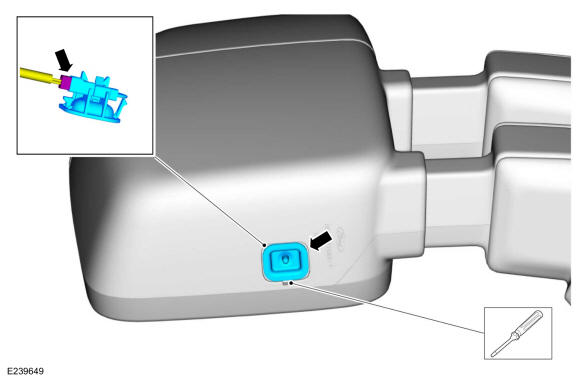

    • Using a suitable tool, pry and detach the ambient air temperature sensor bezel from the RH exterior mirror housing. Use the General Equipment: Flat-Bladed Screwdriver

    • Disconnect the ambient air temperature sensor electrical connector and remove the ambient air temperature sensor.

GFD205706Courtesy of FORD MOTOR COMPANY
