Liftgate Alignment

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

Inspection

1. Check liftgate to body dimensions. Refer to: Body and Frame .
2. 1. If dimensions are OK, liftgate alignment is not necessary. Continue to Striker Adjustment.
   2. If liftgate alignment is necessary continue to

      Adjustment  .

Adjustment

Liftgate left and right, up and down alignment

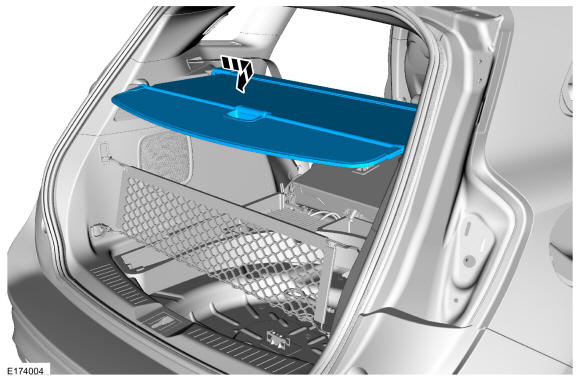

1. Remove the luggage cover.

   Courtesy of FORD MOTOR COMPANY

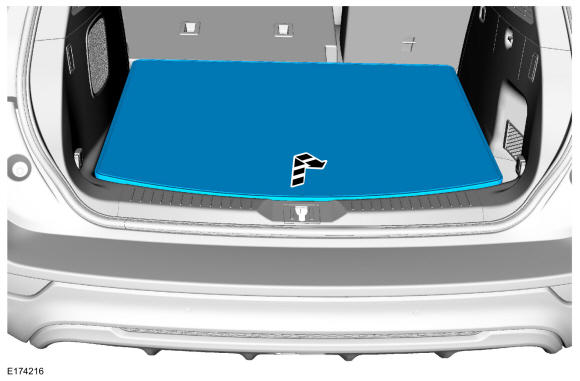

2. Remove the spare tire cover.

   Courtesy of FORD MOTOR COMPANY

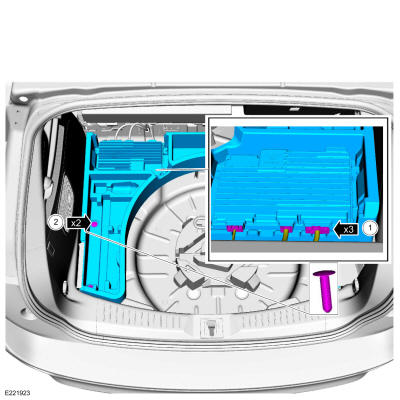

3. 1. If equipped, disconnect the DSP electrical connectors.
   2. Remove the pin-type retainers and the LH utility bin.

   Courtesy of FORD MOTOR COMPANY

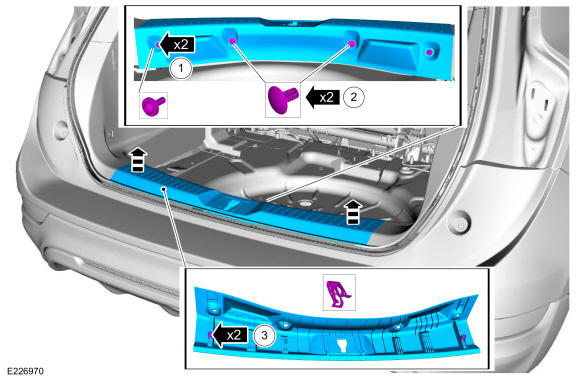

4. Remove the liftgate opening trim panel.
   1. Remove the screws.
   2. Remove the pin-type retainers.
   3. Release the clips and remove the liftgate opening trim panel.

   Courtesy of FORD MOTOR COMPANY

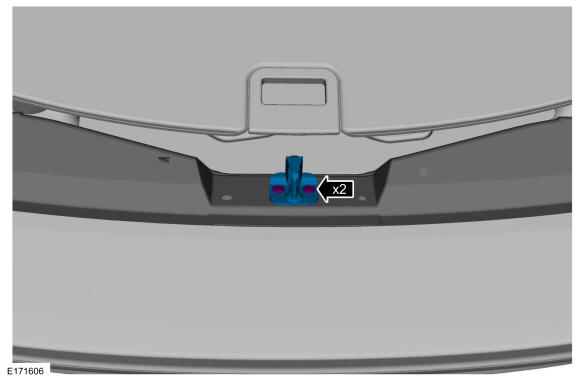

5. Remove the bolts and liftgate striker.

   Courtesy of FORD MOTOR COMPANY

6. Loosen the bolts.

   Courtesy of FORD MOTOR COMPANY

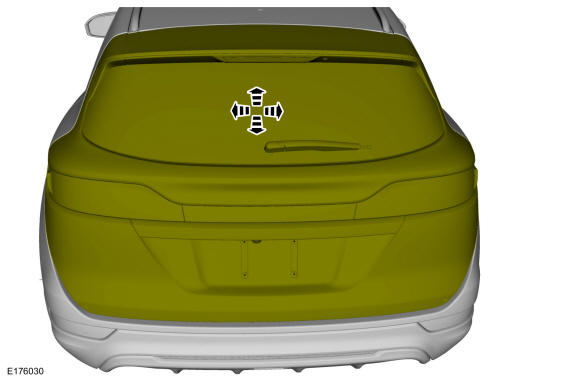

7. Adjust the liftgate up/down and left/right.

   Courtesy of FORD MOTOR COMPANY

8. Tighten the bolts.

   Torque: 22 lb.ft (30 Nm)

   Courtesy of FORD MOTOR COMPANY

9. Install the bolts and the liftgate striker.

   Courtesy of FORD MOTOR COMPANY

10. Adjust the liftgate striker.
11. Install the removed components.

    Liftgate in and out alignment

12. Remove the luggage cover.

    Courtesy of FORD MOTOR COMPANY

13. Remove the spare tire cover.

    Courtesy of FORD MOTOR COMPANY

14. 1. If equipped, disconnect the DSP electrical connectors.
    2. Remove the pin-type retainers and the LH utility bin.

    Courtesy of FORD MOTOR COMPANY

15. Remove the liftgate opening trim panel.
    1. Remove the screws.
    2. Remove the pin-type retainers.
    3. Release the clips and remove the liftgate opening trim panel.

    Courtesy of FORD MOTOR COMPANY

16. Remove the C-pillar trim panels. Refer to: C-Pillar Trim Panel .

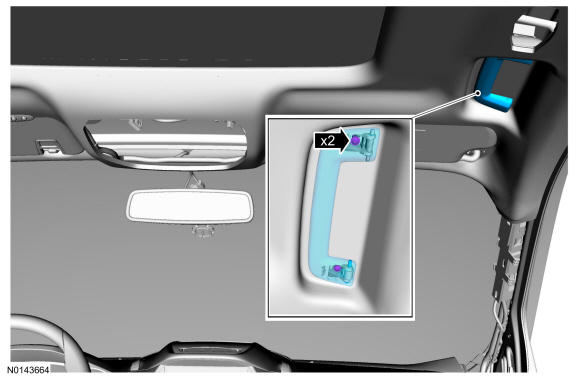

17. NOTE: RH front shown, all others similar.

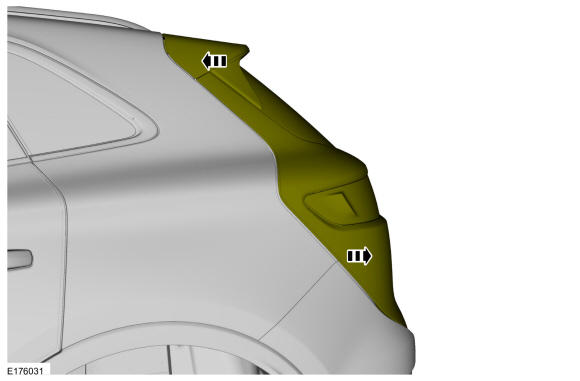

    Remove the rear grab handles.

    Courtesy of FORD MOTOR COMPANY

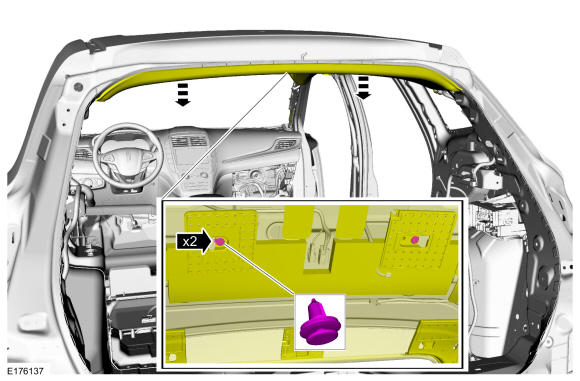

18. Remove the pin-type retainers and lower the rear of the headliner.

    Courtesy of FORD MOTOR COMPANY

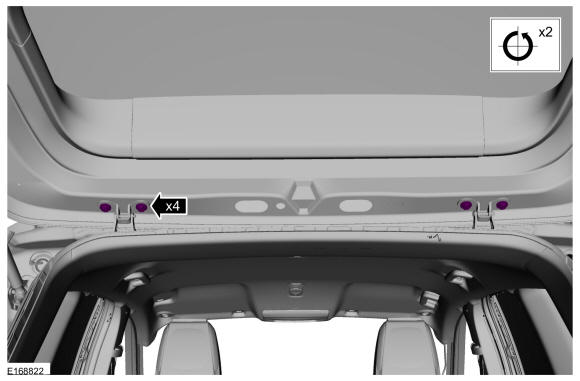

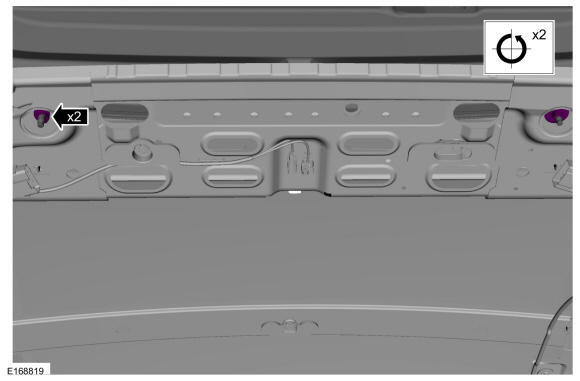

19. Loosen the liftgate hinge nuts.

    Courtesy of FORD MOTOR COMPANY

20. Remove the bolts and the liftgate striker.

    Courtesy of FORD MOTOR COMPANY

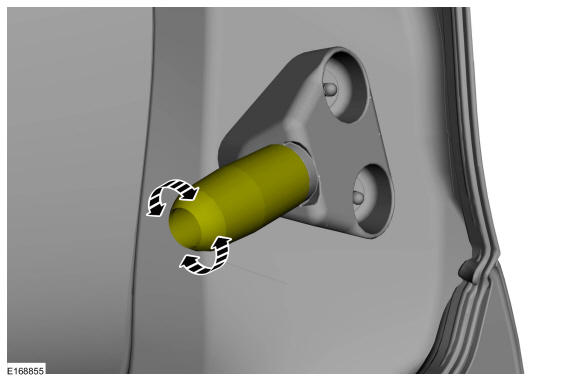

21. Adjust the liftgate stops in and out on both sides.

    Courtesy of FORD MOTOR COMPANY

22. Adjust the liftgate in and out.

    Courtesy of FORD MOTOR COMPANY

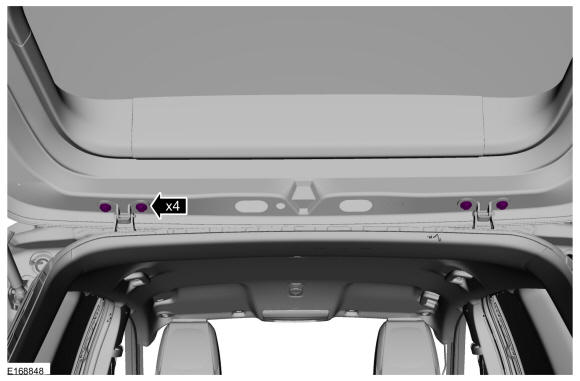

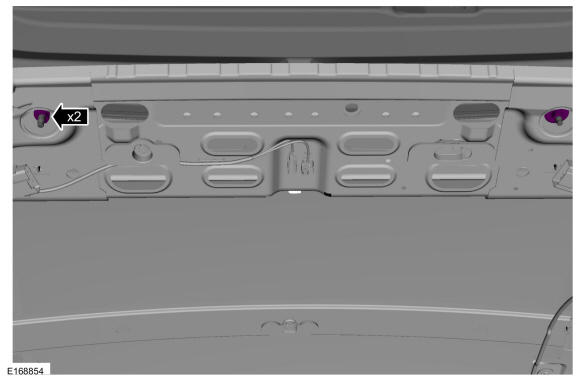

23. Tighten the liftgate hinge nuts.

    Torque: 41 lb.ft (55 Nm)

    Courtesy of FORD MOTOR COMPANY

24. Install the bolts and the liftgate striker.

    Courtesy of FORD MOTOR COMPANY

25. Adjust the liftgate striker.
26. Install the removed components.

    Power Liftgate

27. Perform the power liftgate initialization. Refer to: Power Liftgate Initialization  .
