Connector Repair Procedures

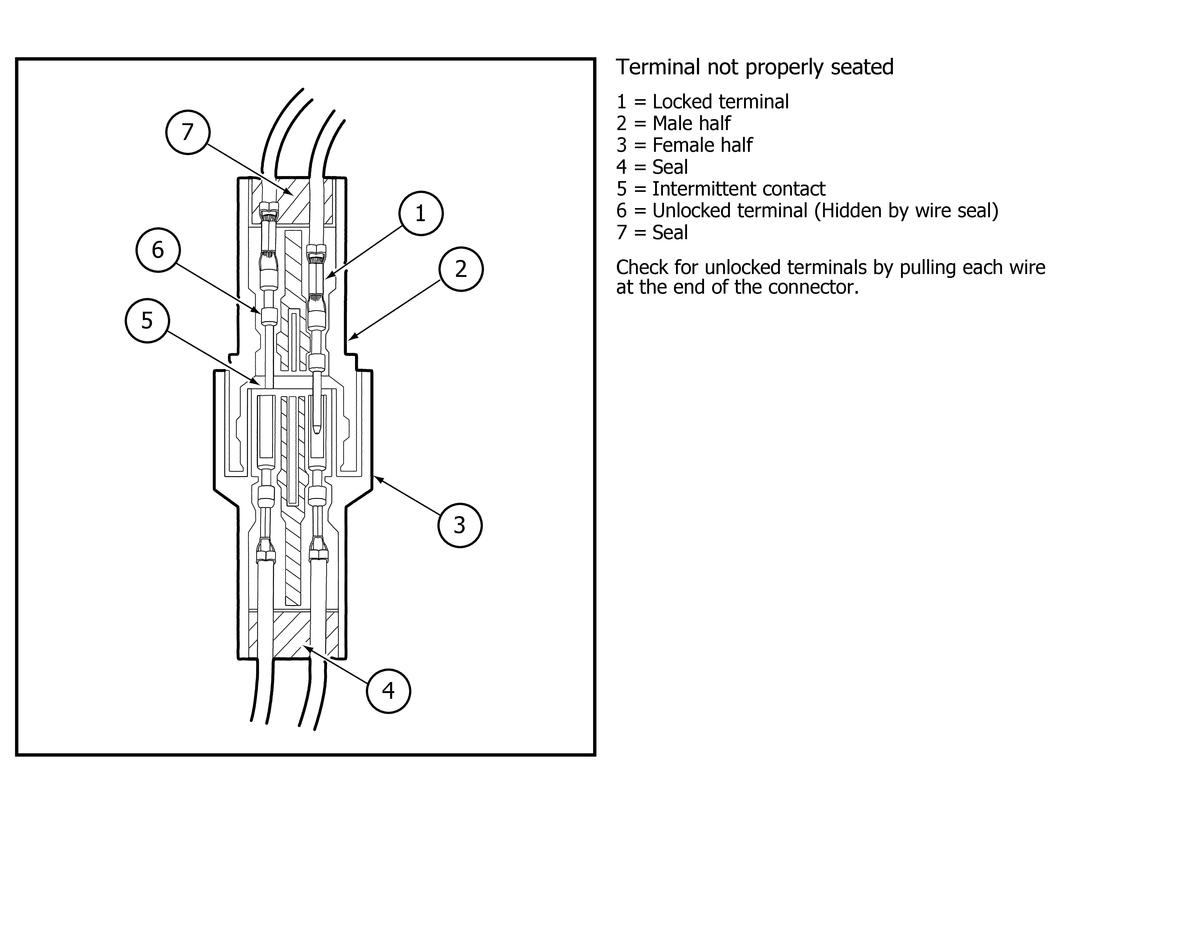

GFDWR58714Courtesy of FORD MOTOR COMPANY

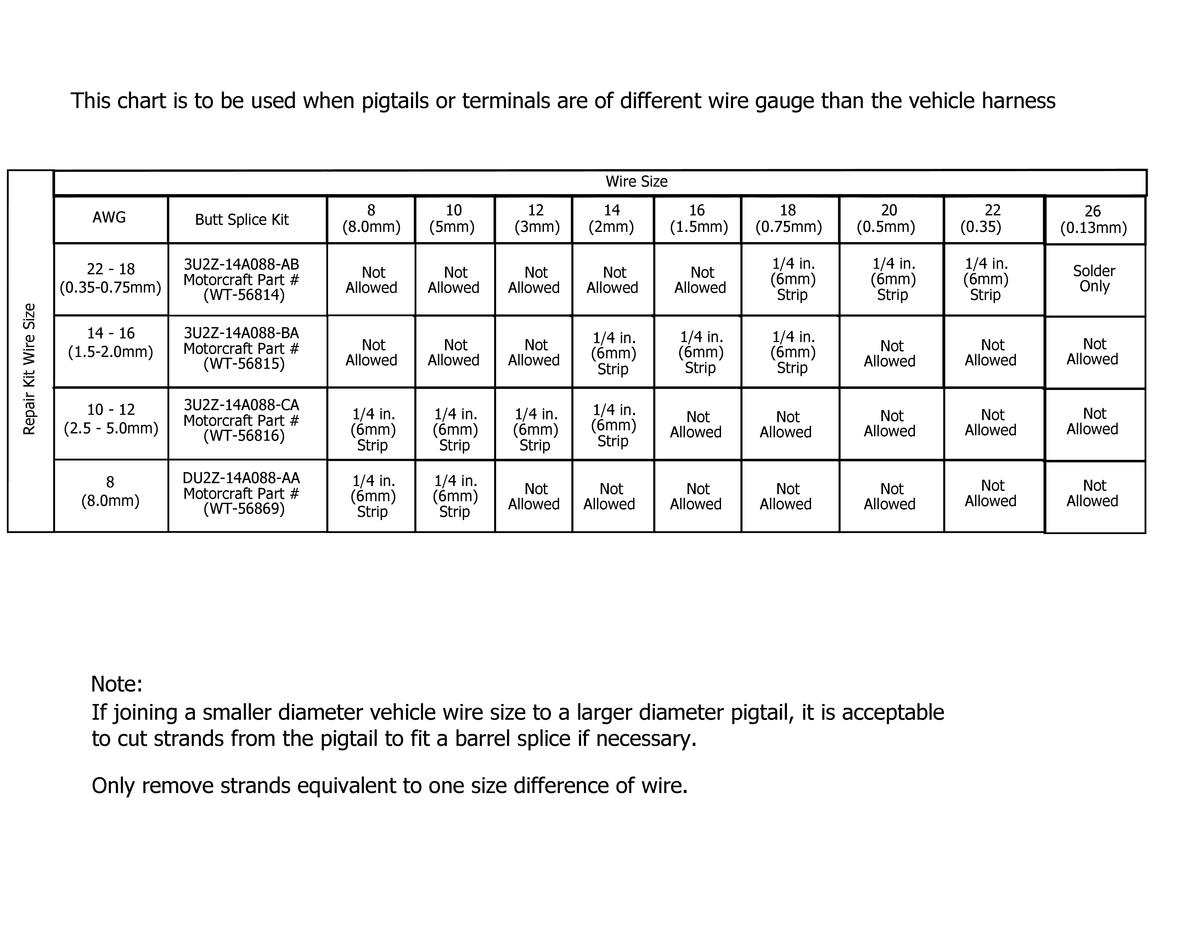

GFDWR58715Courtesy of FORD MOTOR COMPANY

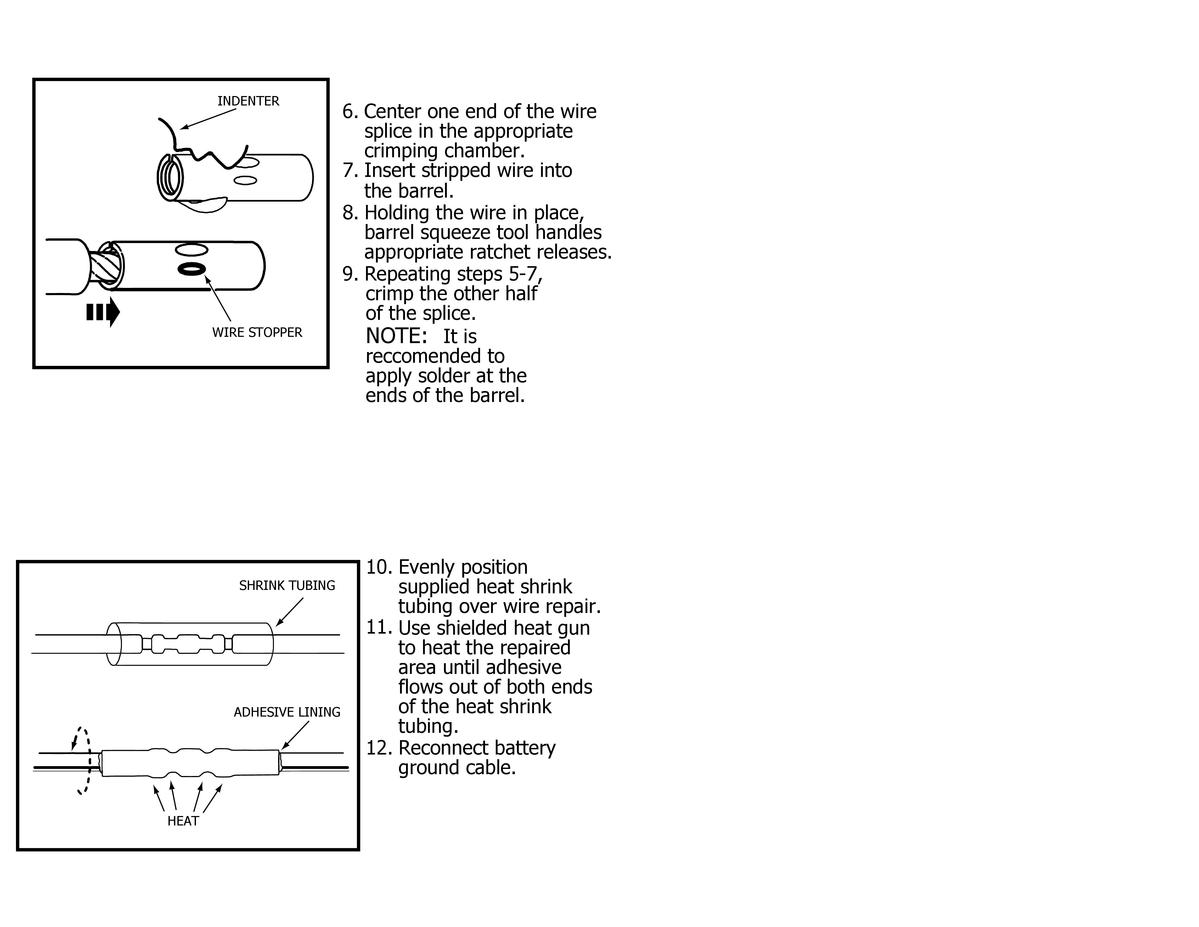

GFDWR58716Courtesy of FORD MOTOR COMPANY

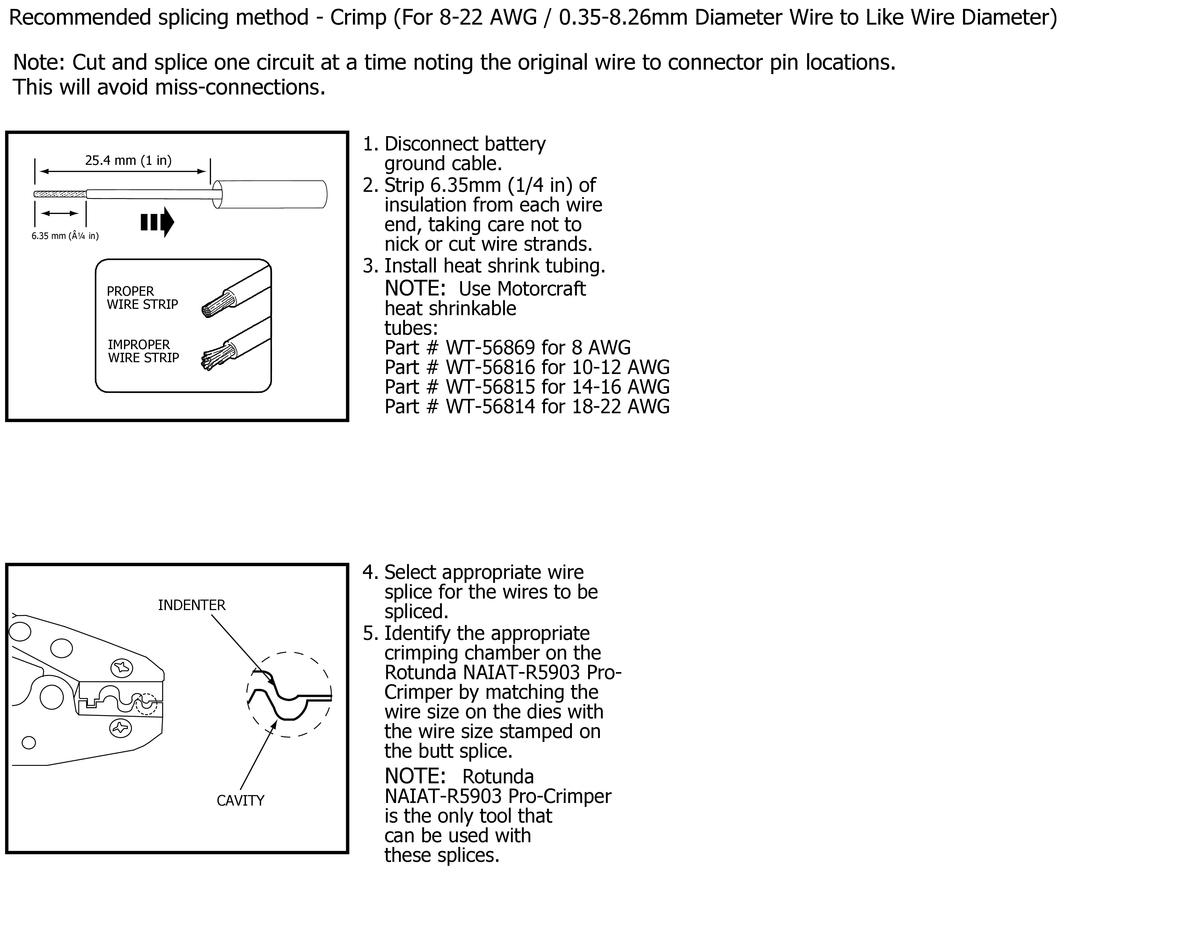

GFDWR58717Courtesy of FORD MOTOR COMPANY

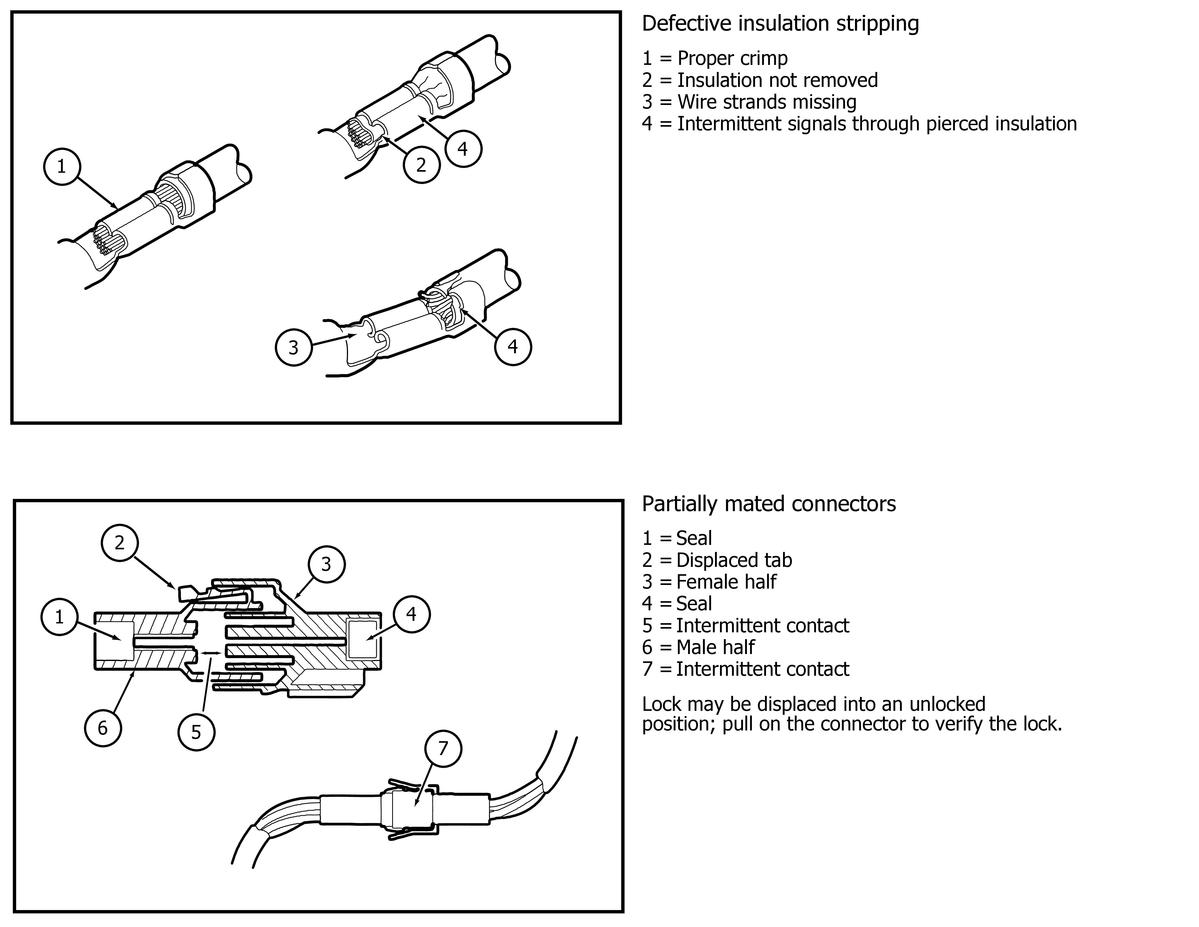

GFDWR58718Courtesy of FORD MOTOR COMPANY

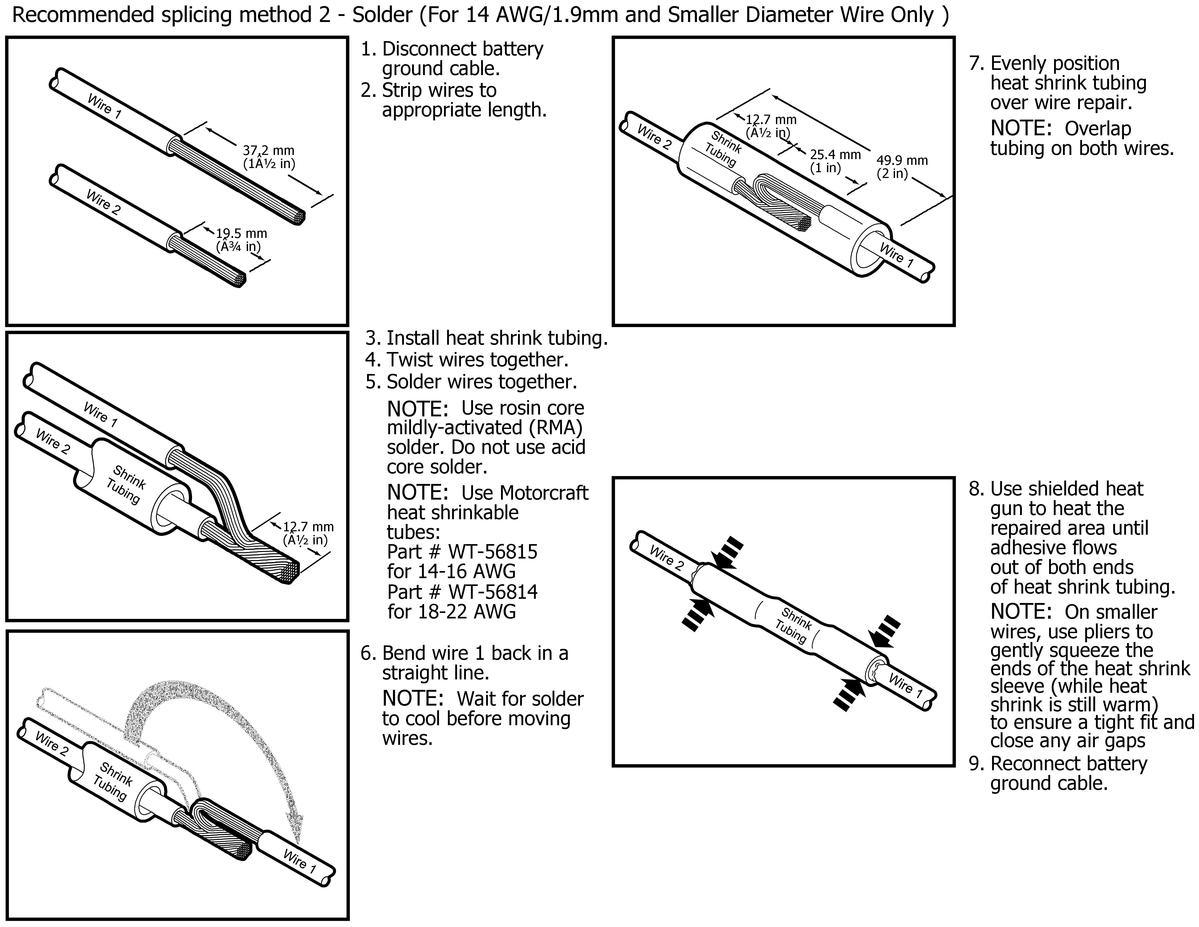

GFDWR58719Courtesy of FORD MOTOR COMPANY

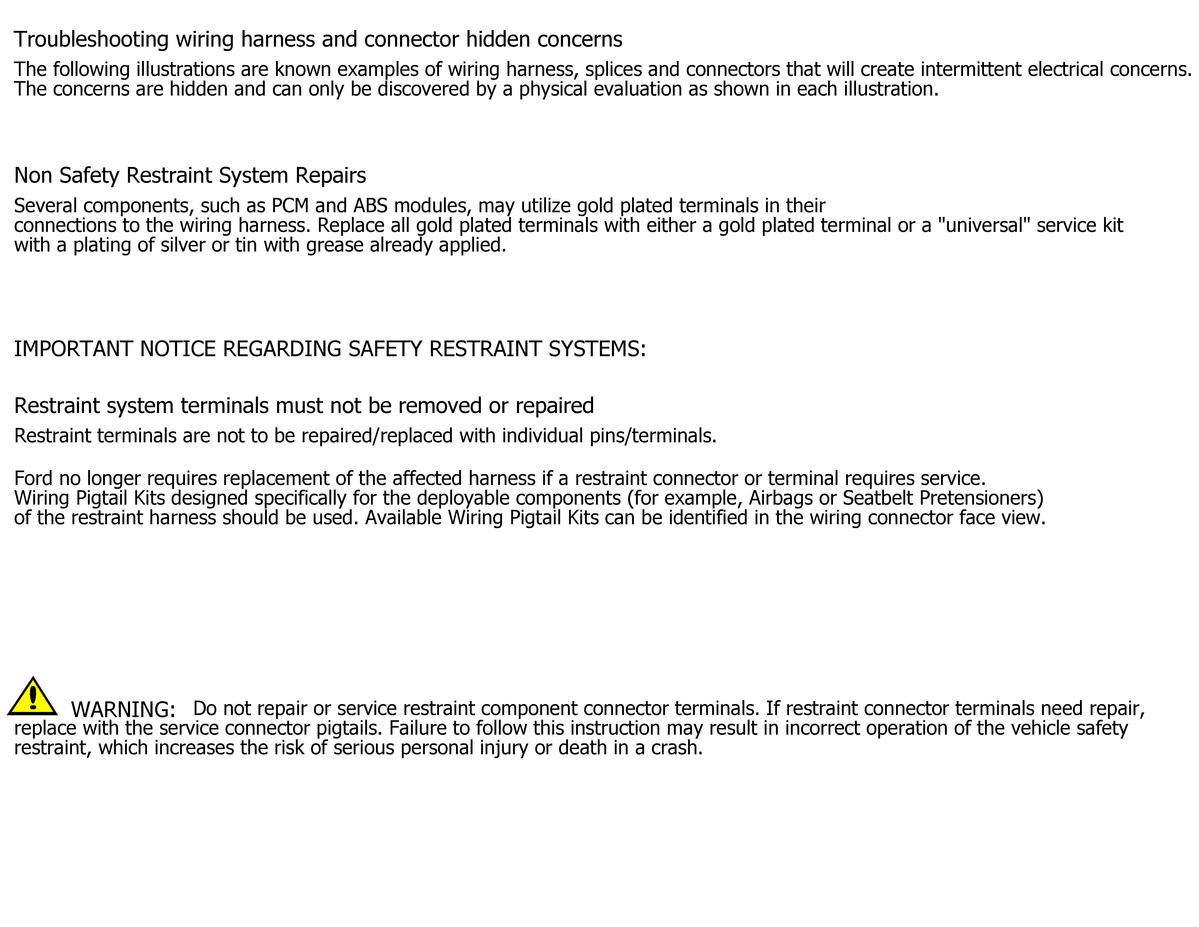

GFDWR58720Courtesy of FORD MOTOR COMPANY

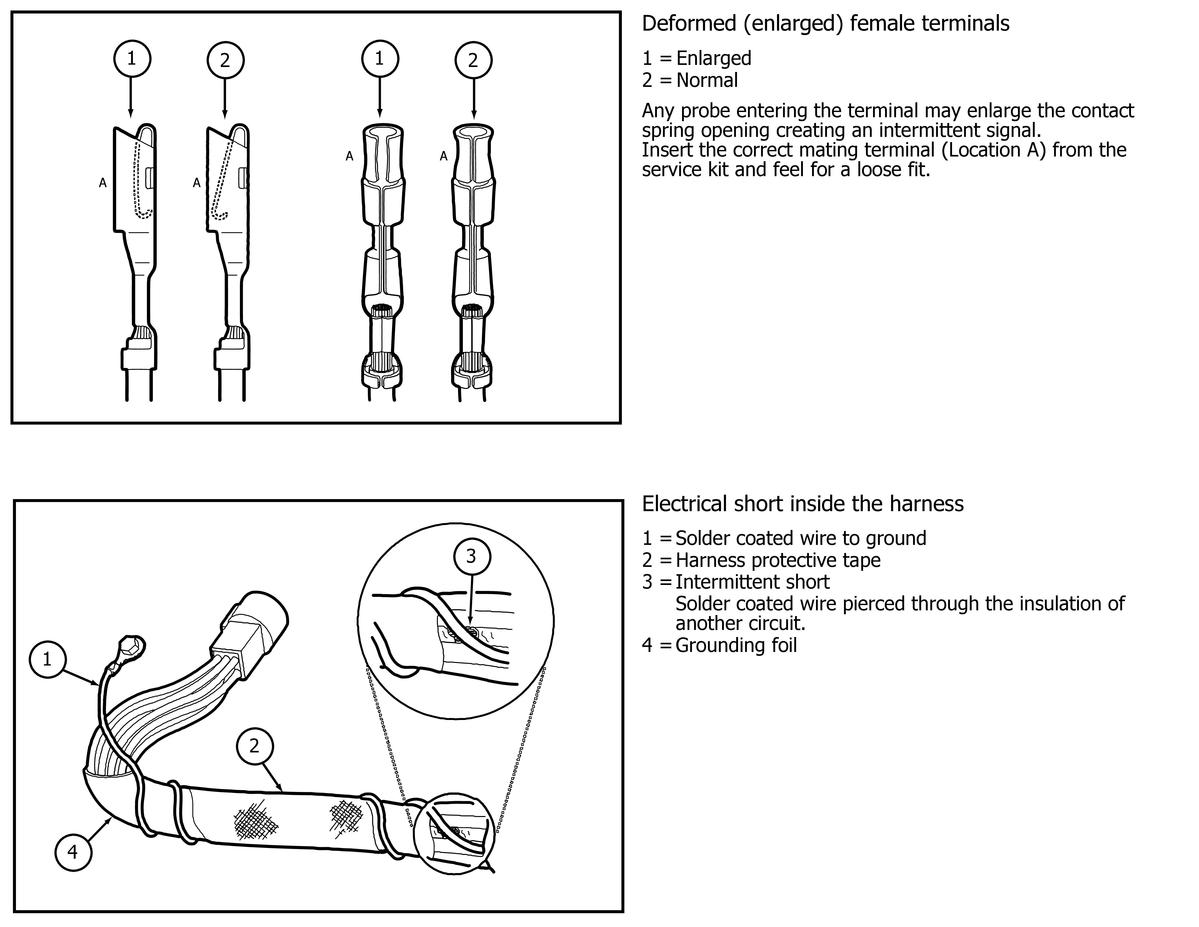

GFDWR58721Courtesy of FORD MOTOR COMPANY

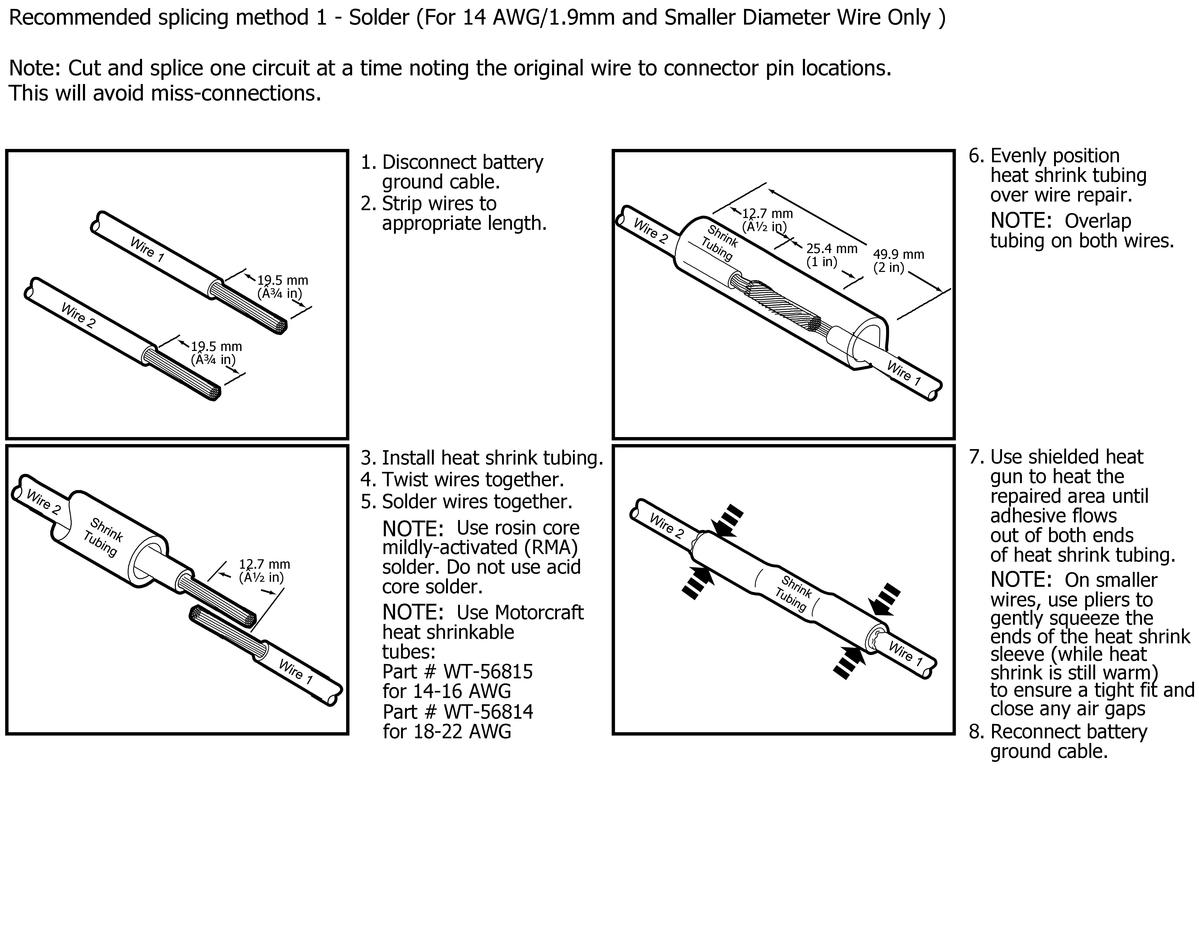

GFDWR58722Courtesy of FORD MOTOR COMPANY
