PINPOINT TEST DK: Accelerator Pedal Position (APP) Sensor: Introduction

NOTE: After clearing an APP sensor diagnostic trouble code (DTC) to verify a repair or an intermittent concern, apply the accelerator pedal before carrying out the self-test. Take 10 seconds to carry out a full sweep of the accelerator pedal from fully released to fully applied and back to fully released

This pinpoint test is intended to diagnose the following:

APP sensor (9F836)
harness circuits: APP1, APP2, APPRTN1, APPRTN2, APPVREF1, APPVREF2, VPWR and GND
PCM (12A650)

Fig 1: Accelerator Pedal Position (APP) Sensor Connector

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
APP1 (Accelerator Pedal Position 1)	2
APP2 (Accelerator Pedal Position 2)	5
APPRTN1 (Accelerator Pedal Position Return 1)	3
APPRTN2 (Accelerator Pedal Position Return 2)	4
APPVREF1 (Accelerator Pedal Position Reference Voltage 1)	1
APPVREF2 (Accelerator Pedal Position Reference Voltage 2)	6

Fig 2: Instrument Panel Cluster (IPC) Connector

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
APP2 (Accelerator Pedal Position 2)	14
APPRTN2 (Accelerator Pedal Position Return 2)	13
APPVREF2 (Accelerator Pedal Position Reference Voltage 2)	31

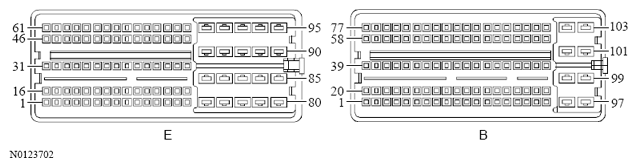

Fig 3: Powertrain Control Module (PCM) Connector - For PCM Connector Views

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
APP1 (Accelerator Pedal Position 1)	B33
APP2 (Accelerator Pedal Position 2)	B34
