Fuel Pump Driver Module (FPDM): Removal

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

NOTE: The FPDM is located beneath the 2nd row right rear seat cushion, under the carpet.
  1. Remove the rear seat cushion. Refer to: Rear Seat Cushion .

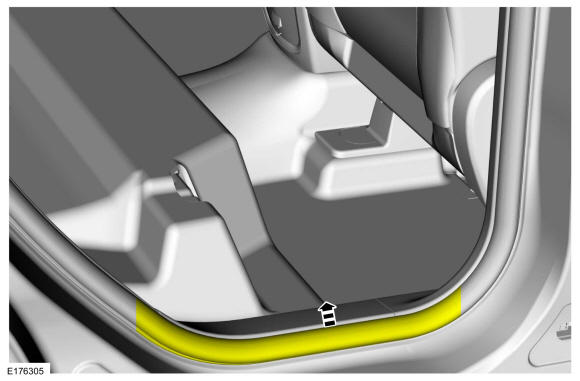

GFD394208Courtesy of FORD MOTOR COMPANY

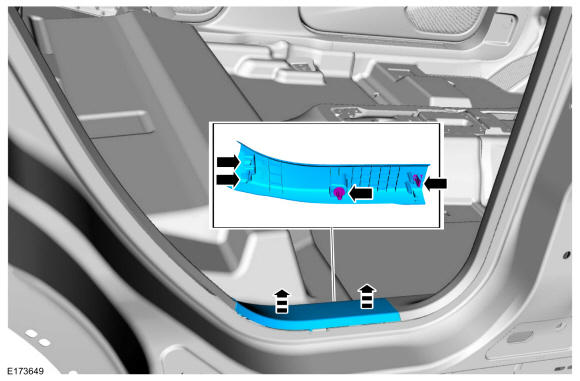

GFD394209Courtesy of FORD MOTOR COMPANY

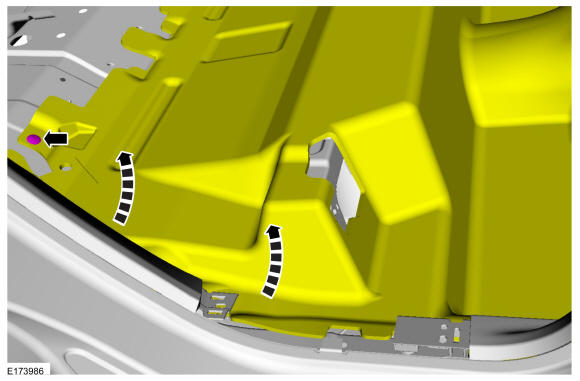

GFD394210Courtesy of FORD MOTOR COMPANY

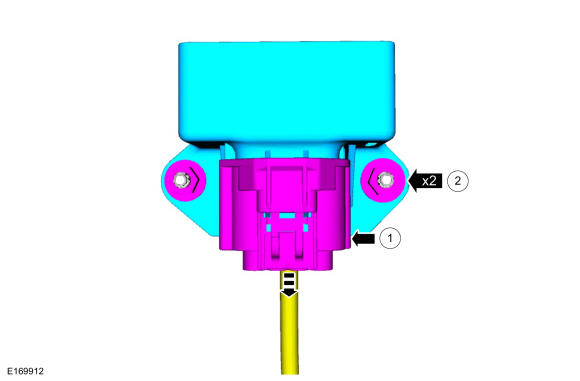

GFD394211Courtesy of FORD MOTOR COMPANY
