PINPOINT TEST JD: Crankshaft Position (CKP) Sensor: Introduction

This pinpoint test is intended to diagnose the following:

Fig 1: Crankshaft Position (CKP) Sensor Connector
G13533131Courtesy of FORD MOTOR CO.

Harness Side

Circuit Pin
VREF (Reference Voltage) 1
CKP (Crankshaft Position Sensor) 2
SIGRTN (Signal Return) 3

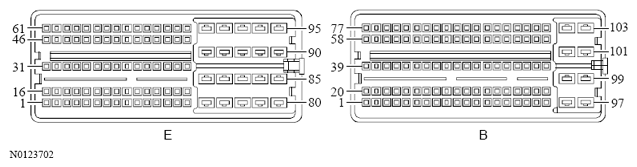

Fig 2: Powertrain Control Module (PCM) Connector - For PCM Connector Views
G13533132Courtesy of FORD MOTOR CO.

Harness Side

Circuit Pin
CKP (Crankshaft Position Sensor) E23
