Steering Column Control Module (SCCM): Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current SCCM installed. If the current SCCM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the SCCM following the on-screen instructions.
Refer to: Steering Wheel .
Refer to: Steering Column Shrouds .

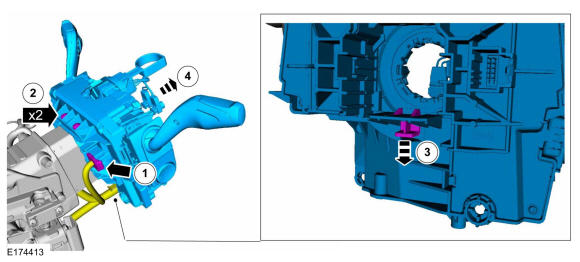

Courtesy of FORD MOTOR COMPANY
Torque:
35 lb.in (4 Nm)

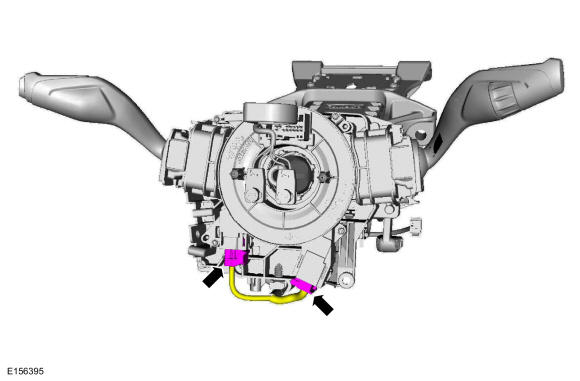

Courtesy of FORD MOTOR COMPANY
