Selector Lever Cable: Removal

  1. Remove the battery tray. Refer to: Battery Tray
  2. Disconnect the selector lever cable from the transmission manual lever.
    GFD422253Courtesy of FORD MOTOR COMPANY

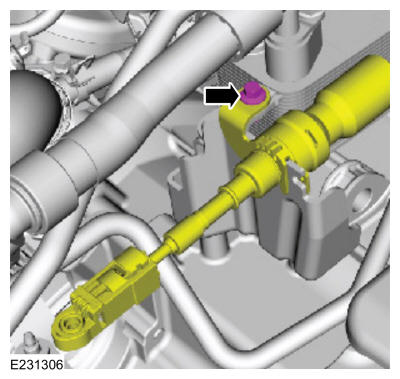

  3. Remove the selector cable retaining clip bolt.
    GFD422418Courtesy of FORD MOTOR COMPANY

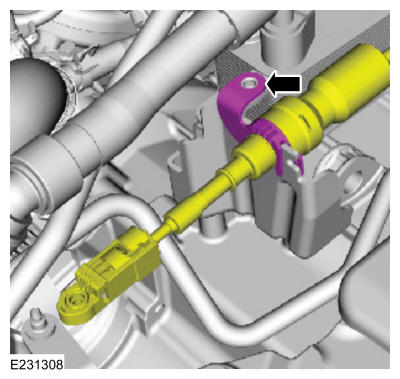

  4. Release the clip and detach the selector lever cable from the selector lever cable bracket.
    GFD422799Courtesy of FORD MOTOR COMPANY

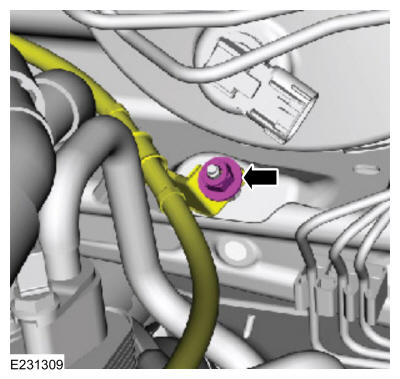

  5. Remove the selector lever cable nut.
    GFD422800Courtesy of FORD MOTOR COMPANY

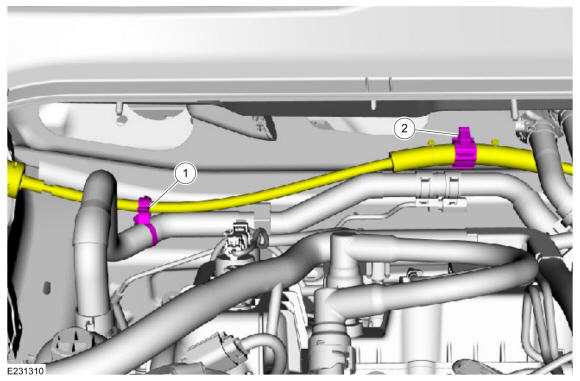

  6. Detach the selector lever cable.

    1. Detach the selector lever cable from the retainer.
    2. Detach the selector lever cable retainer.

    GFD422801Courtesy of FORD MOTOR COMPANY
  7. Remove the RH fender splash shield. Refer to: Fender Splash Shield

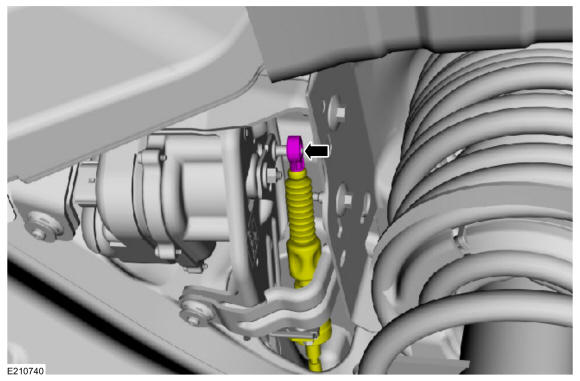

  8. Detach the selector lever cable from the TRCM lever.
    GFD422802Courtesy of FORD MOTOR COMPANY

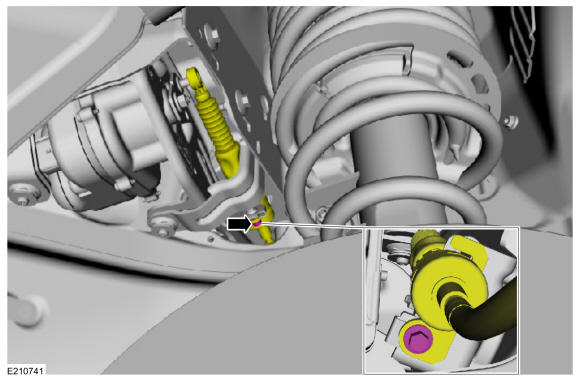

  9. Remove the selector lever cable retaining clip bolt.
    GFD422803Courtesy of FORD MOTOR COMPANY

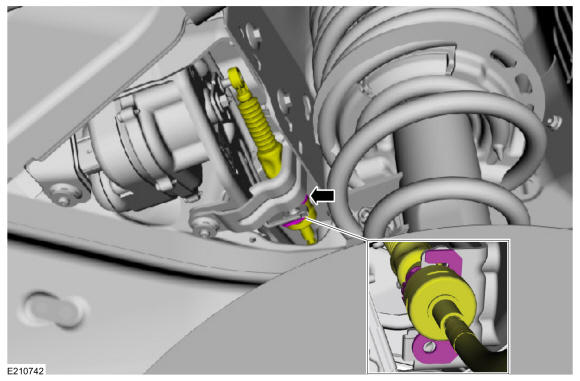

  10. Release the tab and detach the selector lever cable from the selector lever cable bracket.
    GFD422804Courtesy of FORD MOTOR COMPANY

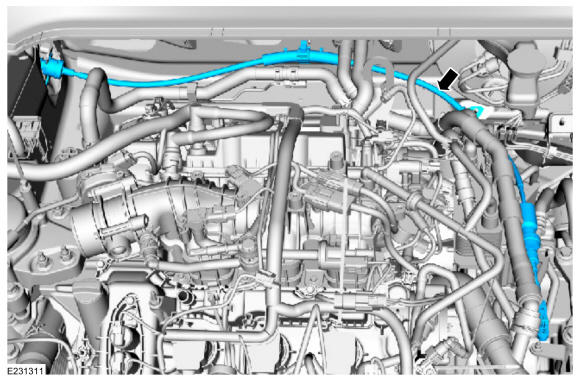

  11. Remove the selector lever cable.
GFD422805Courtesy of FORD MOTOR COMPANY
