Gear Shift Module (GSM): Removal

NOTE: Removal steps in this procedure may contain installation details.

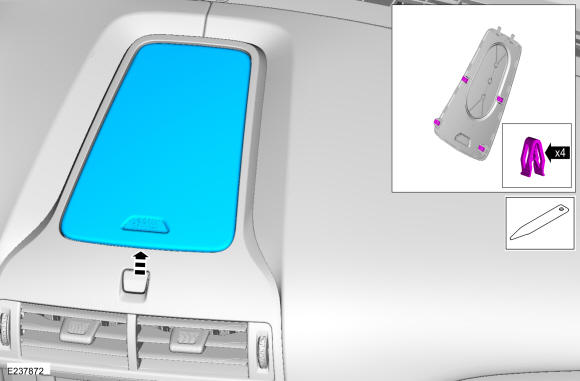

Release the clips and remove the instrument panel center speaker grille.

Courtesy of FORD MOTOR COMPANY

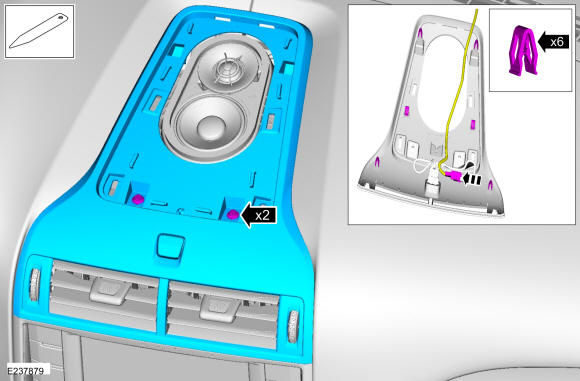

Remove the bolts, release the clips and remove the instrument panel center trim panel.
- Disconnect the electrical connector.
  Torque: 22 lb.in (2.5 Nm)
Courtesy of FORD MOTOR COMPANY
Remove the floor console. Refer to: Floor Console

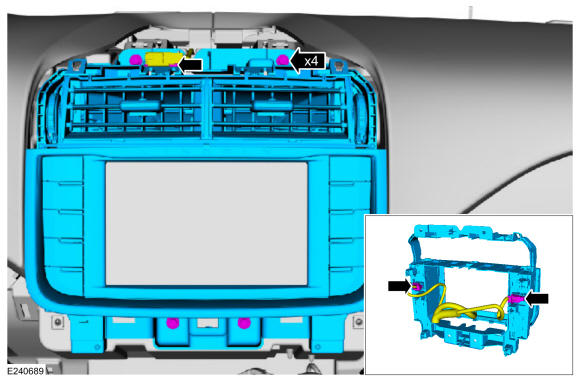

Disconnect the electrical connector retainer, remove the bolts and pull the GSM away from the instrument panel. Disconnect the electrical connectors and remove the GSM.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
