Brake Shift Interlock Override Switch: Removal

  1. Open the floor console arm rest.
    GFD422787Courtesy of FORD MOTOR COMPANY

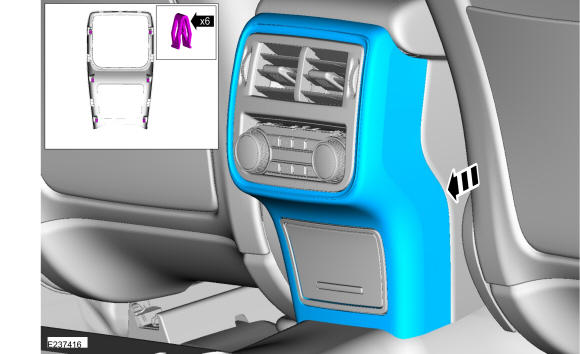

  2. Release the clips and remove the floor console rear trim panel.
    GFD422788Courtesy of FORD MOTOR COMPANY
  3. NOTE: Seats shown removed for clarity.

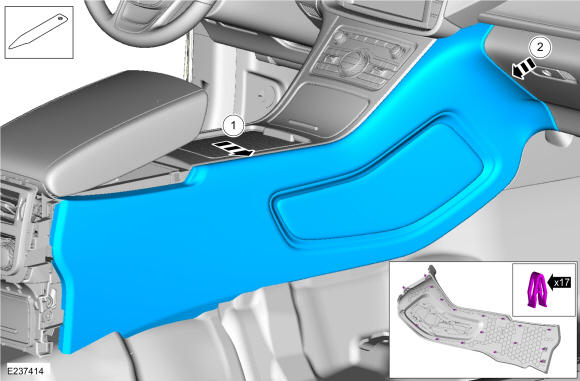

    Remove the RH floor console side trim panel

    1. Release the RH floor console side trim panel clips.
    2. Pull rearward to release the front RH floor console side trim panel clips, and remove the trim panel.

    GFD422789Courtesy of FORD MOTOR COMPANY

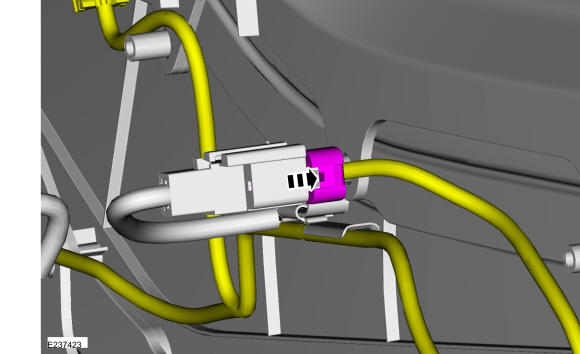

  4. Disconnect the RH floor console side trim panel electrical connector.
    GFD422790Courtesy of FORD MOTOR COMPANY
  5. NOTE: Seats shown removed for clarity.

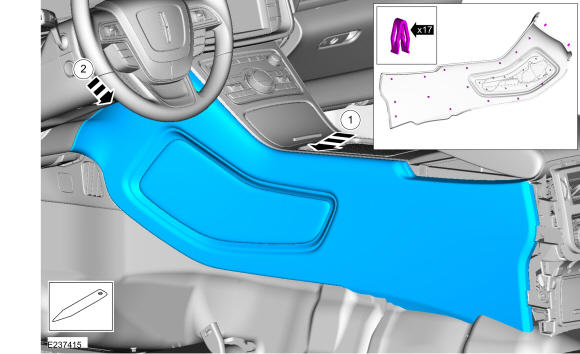

    Remove the LH floor console side trim panel

    1. Release the LH floor console side trim panel clips.
    2. Pull rearward to release the front LH floor console side trim panel clips, and remove the trim panel.

    GFD422791Courtesy of FORD MOTOR COMPANY
  6. Disconnect the LH floor console side trim panel electrical connector.
    GFD422790Courtesy of FORD MOTOR COMPANY

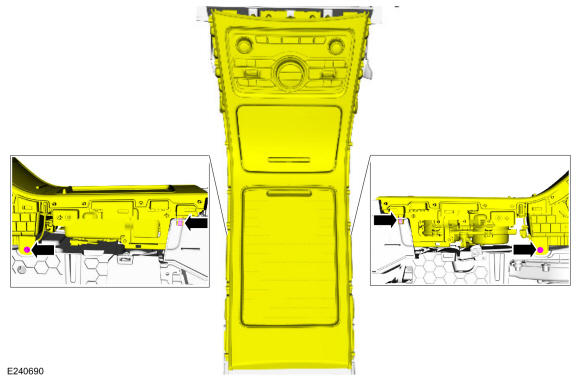

  7. Remove the bolts, unclip the retainers and position the floor console finish panel aside.
    GFD422792Courtesy of FORD MOTOR COMPANY

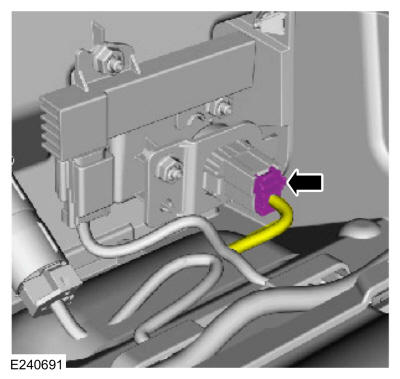

  8. Disconnect the brake shift interlock actuator override switch electrical connector.
    GFD422793Courtesy of FORD MOTOR COMPANY

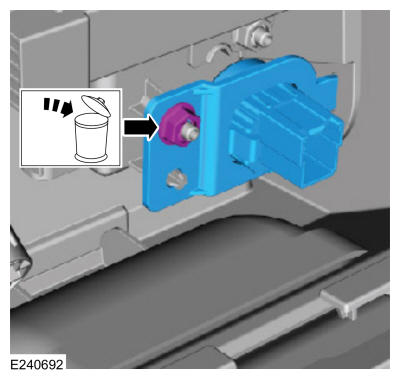

  9. Remove and discard the nut and remove the brake shift interlock actuator override switch.
GFD422794Courtesy of FORD MOTOR COMPANY
