VC Codes
VC Codes

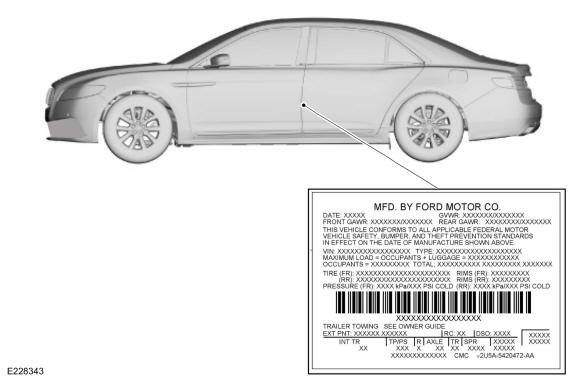

VC Label Locator
The VC label contains the manufacturer name, the month and year of manufacture, the certification statement and the VIN. It also includes GVW and tire information. If a vehicle requires replacement of the VC label and is 4 years old or less, an authorized dealer must submit the VIN to their respective regional office. The regional office will submit a web form to the assembly plant for the replacement label. Once the label has been printed, a representative from the regional office will deliver the label to the dealer and witness installation on the vehicle. If a vehicle is more than 4 years old and requires a replacement label, the dealer must submit a request to the Department of Motor Vehicles.

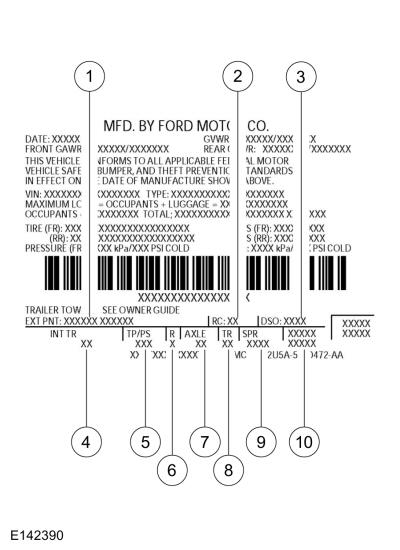

VC Label
| Item | Description |
|---|---|
| 1 | Exterior paint code |
| 2 | Region code |
| 3 | Domestic special order code |
| 4 | Interior trim code |
| 5 | Tape/paint stripe code |
| 6 | Radio code |
| 7 | Axle code |
| 8 | Transmission code |
| 9 | Spring code |
| 10 | Powertrain calibration information |
Paint Code
Paint codes are listed as a 2-part code. The first set of paint code numbers/letters indicate the vehicle primary body color. The second set of letters/numbers (if applicable) indicate a 2-tone or accent body color. All paint codes are a base coat/clear coat finish.
- AR - Iced Mocha Metallic
- EB - Chroma Crystal Blue
- FT - Blue Diamond Metallic
- G1 - Velvet Black / Absolute Black
- GS - Ceramic Pearl Metallic (tri-coat)
- J7 - Magnetic
- N5 - Rhapsody Blue
- R3 - Burgundy Velvet (tinted clear coat)
- RR - Ruby Red (tinted clear coat)
- UG - White Platinum (tri-coat)
- UM - Agate Black Metallic
- UX - Ingot Silver Metallic
- XF - Chroma Caviar Dark Gray (Cromoflare)
Interior Trim Codes
Interior trim codes are listed as a 2-part code. The first digit listed indicates the seat and fabric style. The second digit listed indicates the interior trim color.
- 7 - Premium Vinyl seats
- 9 - Venetian Leather with Linking Leather Perforated seats
- C - Venetian Leather with Lincoln Star Leather Perforated #2 seats
- F - Venetian Leather with Leather Diamond Perforated seats
- G - Vinyl with Micro perforated Luxury Leather seats
- T - Luxury Micro Perforated Leather #3 seats
Interior Trim Color Codes
- 4 - Thoroughbred Jet Black
- 5 - Cappuccino
- A - Ebony / Terra Cotta
- B - Jade Gray
- E - Destination / Alpine
- G - Rhapsody Blue Theme (Black Label)
- H - Ebony
Tape/Paint Stripe Codes
Tape and paint stripe codes do not apply.
Radio Codes
The following lists available radio codes:
- B - Premium AM/ FM stereo, SDARS (Satellite Digital Audio Receiver System), CD player, HD (High Definition)
- S - AM/ FM stereo, SDARS (Satellite Digital Audio Receiver System), CD player
Axle Codes
The following lists the available rear axle ratios.
- 2 - 3.16 ratio
- 3 - 3.39 ratio
- 4 - 2.77 ratio
- 6 - 3.36 ratio
Transmission Codes
Available transmissions are as follows:
- 6 - 6-speed automatic (6F35 mid-range)
- C - 6-speed automatic (6F55)
- J - 6-speed automatic (6F50)
Spring Codes
Spring codes are listed as a 2-part code. The first set of characters identify the front springs. The second set of characters identify the rear springs.
Front Spring Codes
- Base part number - 5310
Rear Spring Codes
- Base part number - 5560
