Radio Transceiver Module (RTM): Removal

  1. NOTE: If installing a new module, it is necessary to upload the module configuration information to the diagnostic scan tool prior to removing the module. This information must be downloaded into the new module after installation.

    Carry out the PMI procedure for the RTM.

  2. Remove the parcel shelf. Refer to: Parcel Shelf - Vehicles With: 40/20/40 Split Second Row Seating . Refer to: Parcel Shelf - Vehicles With: 40/20/40 Split Second Row Seating .

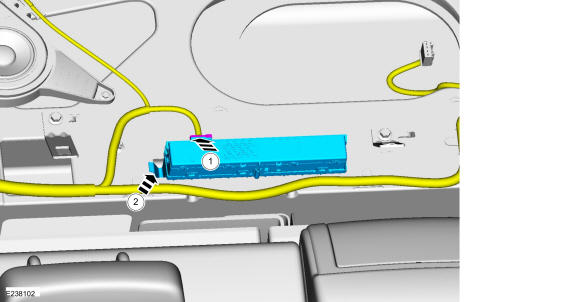

    1. Disconnect the electrical connector.
    2. Release the tab and rotate the RTM upwards to remove.
    GFD423959Courtesy of FORD MOTOR COMPANY

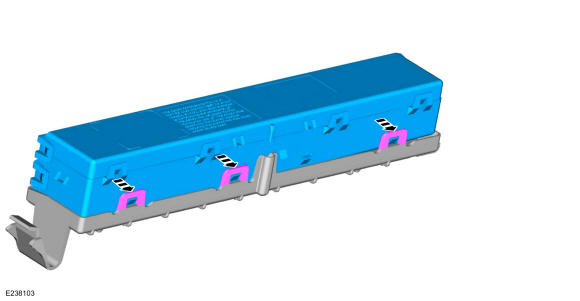

  4. NOTE: This step is only required if replacing the RTM.

    Release the tabs and separate the RTM from the bracket.

GFD423960Courtesy of FORD MOTOR COMPANY
