Body Control Module B (BCMB): Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Using a diagnostic scan tool, begin the PMI process for the BCMB following the on-screen instructions.
Remove the push pins and the LH side lower instrument panel insulation panel.

Courtesy of FORD MOTOR COMPANY

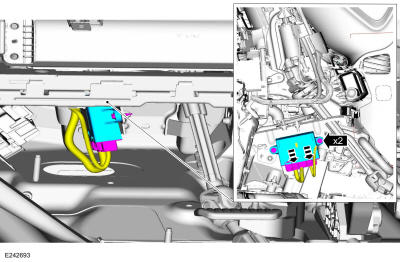

Remove the bolts and the BCMB.
- Disconnect the electrical connectors.
  Torque: 29 lb.in (3.3 Nm)

Courtesy of FORD MOTOR COMPANY
