Steering Wheel: Removal

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Vehicle with heated steering wheel shown, others similar.

NOTE: Make sure the steering wheel and the road wheels are in the straight ahead position.

Remove the driver airbag.

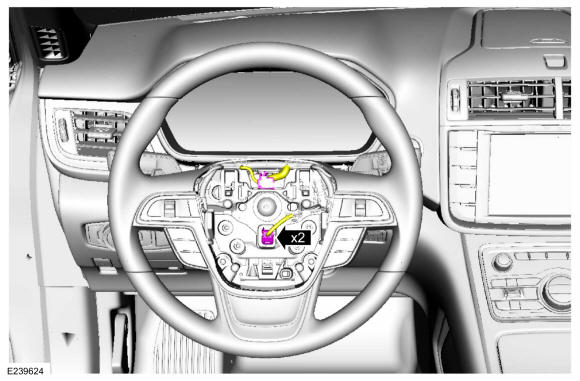

Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

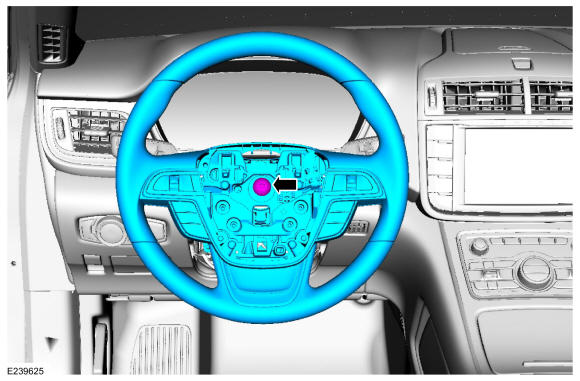

Remove the bolt.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure the clockspring rotor does not rotate.

NOTE: Make sure the clockspring electrical connector pins are not bent or damaged.

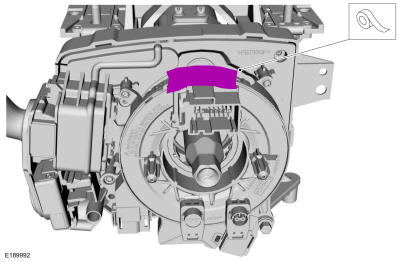

Tape the clockspring rotor to the outer housing to keep it from rotating.

Courtesy of FORD MOTOR COMPANY
