Connector Repair Procedures

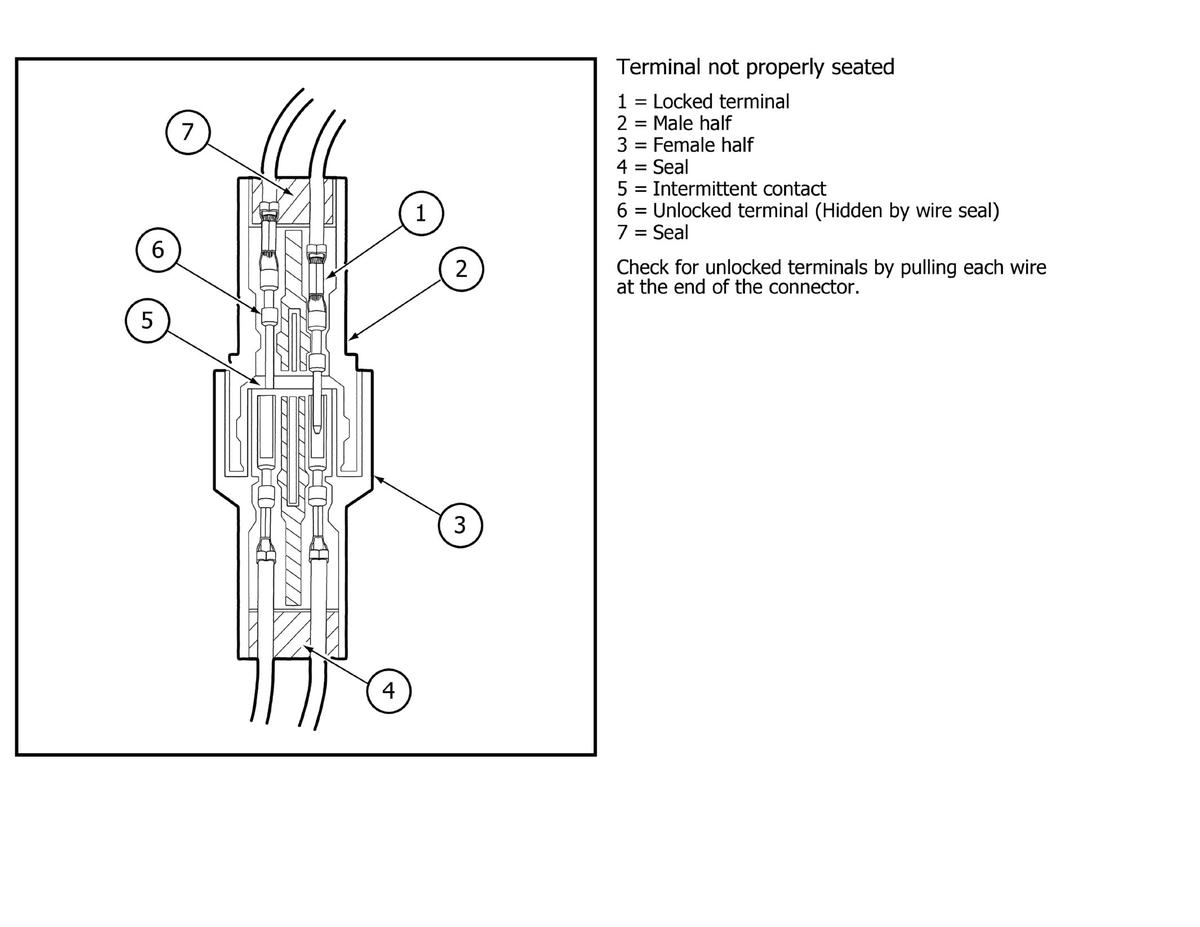

GFDWR66362Courtesy of FORD MOTOR COMPANY

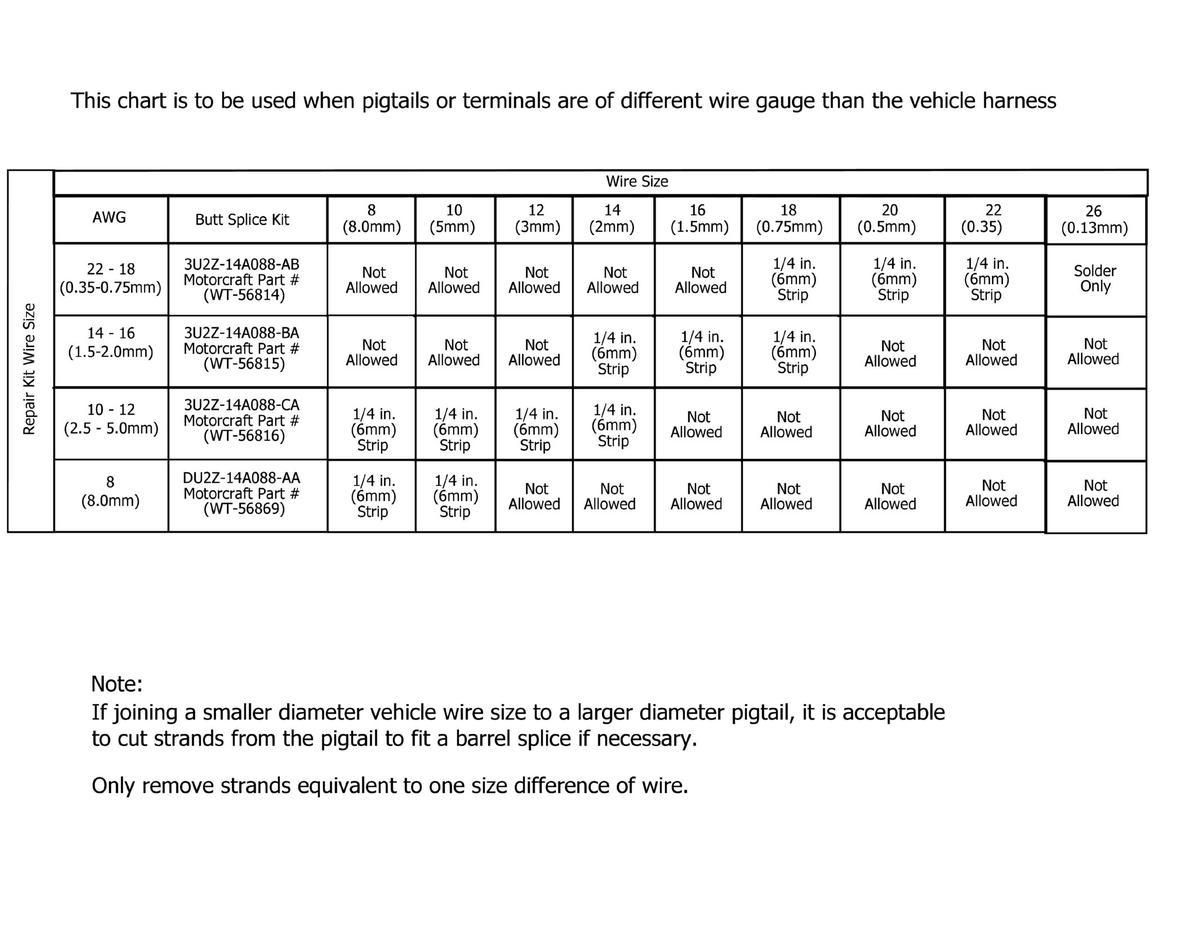

GFDWR66363Courtesy of FORD MOTOR COMPANY

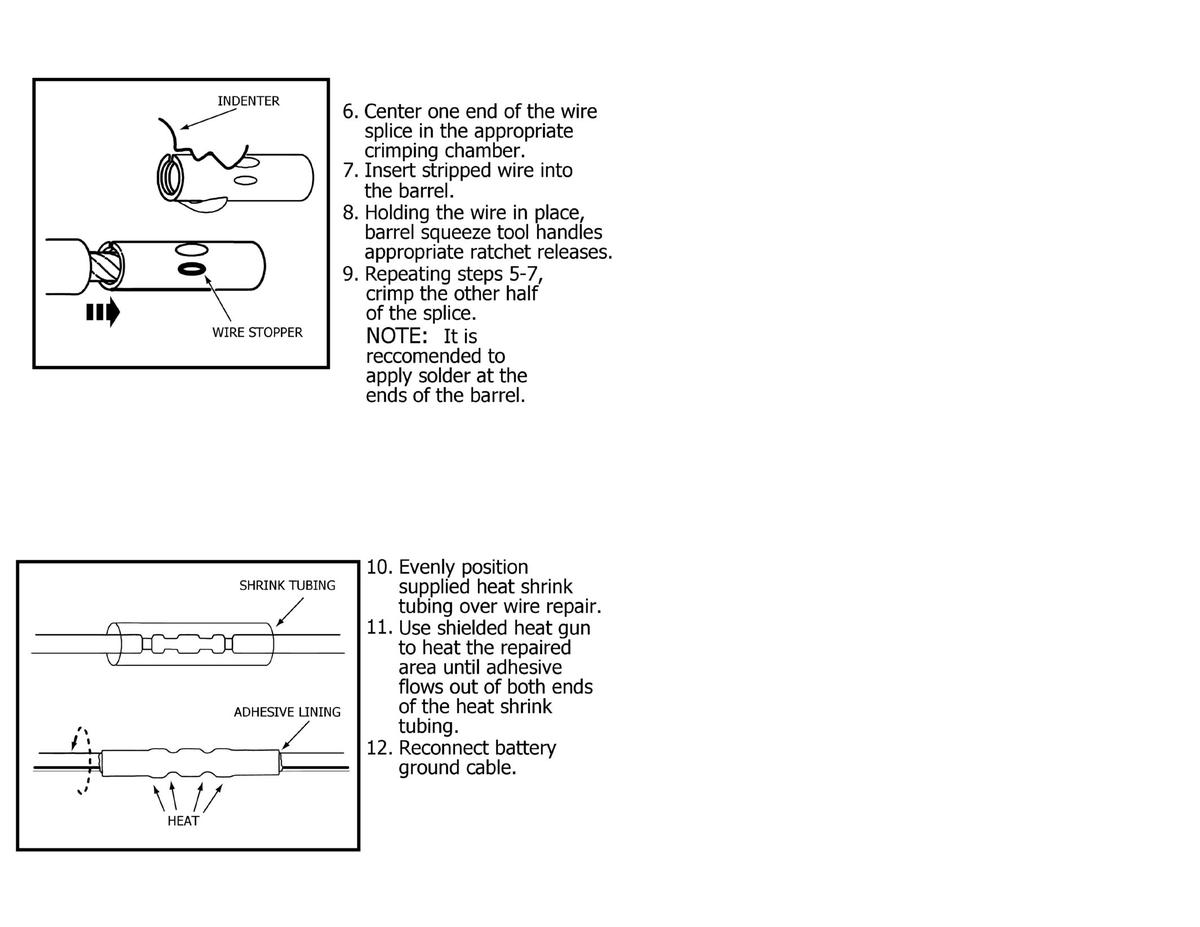

GFDWR66364Courtesy of FORD MOTOR COMPANY

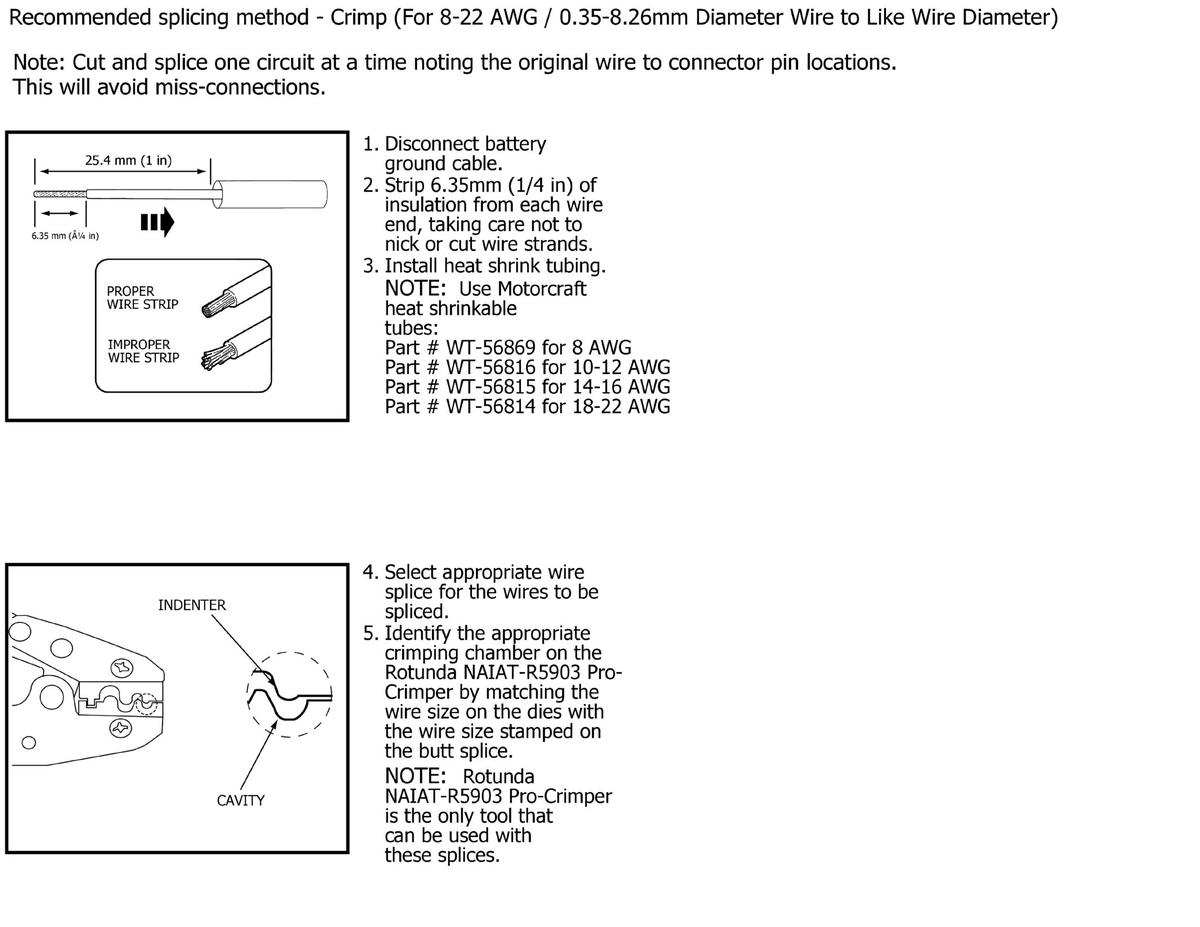

GFDWR66365Courtesy of FORD MOTOR COMPANY

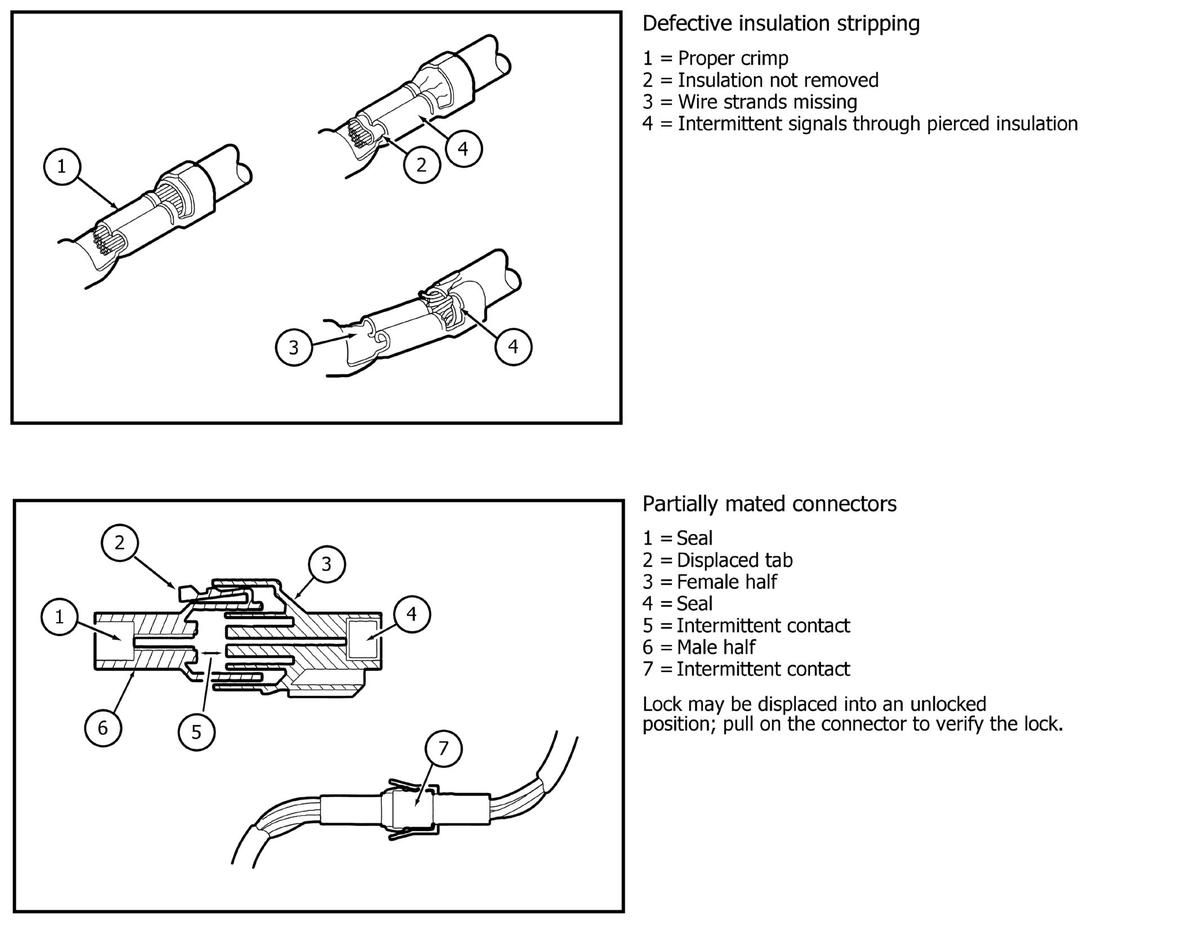

GFDWR66366Courtesy of FORD MOTOR COMPANY

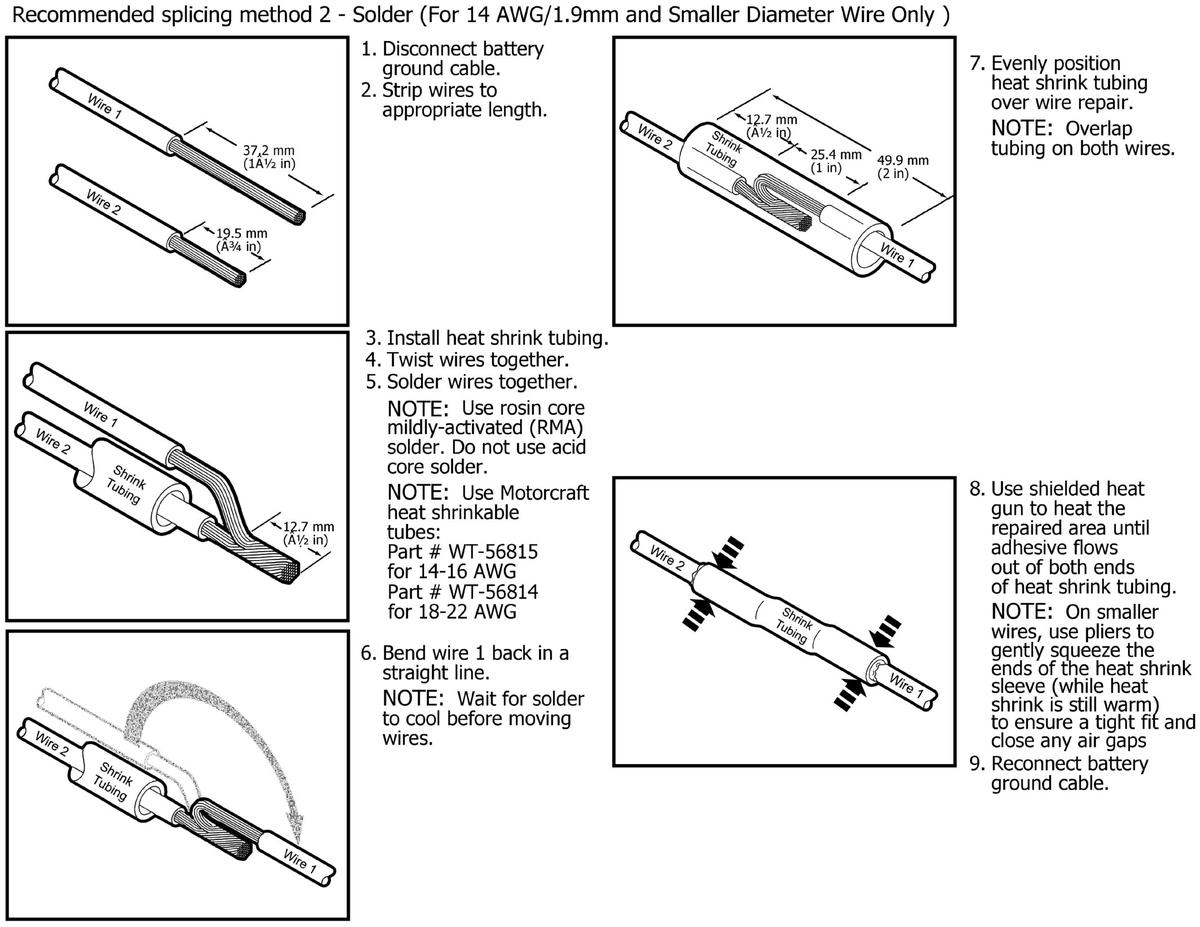

GFDWR66367Courtesy of FORD MOTOR COMPANY

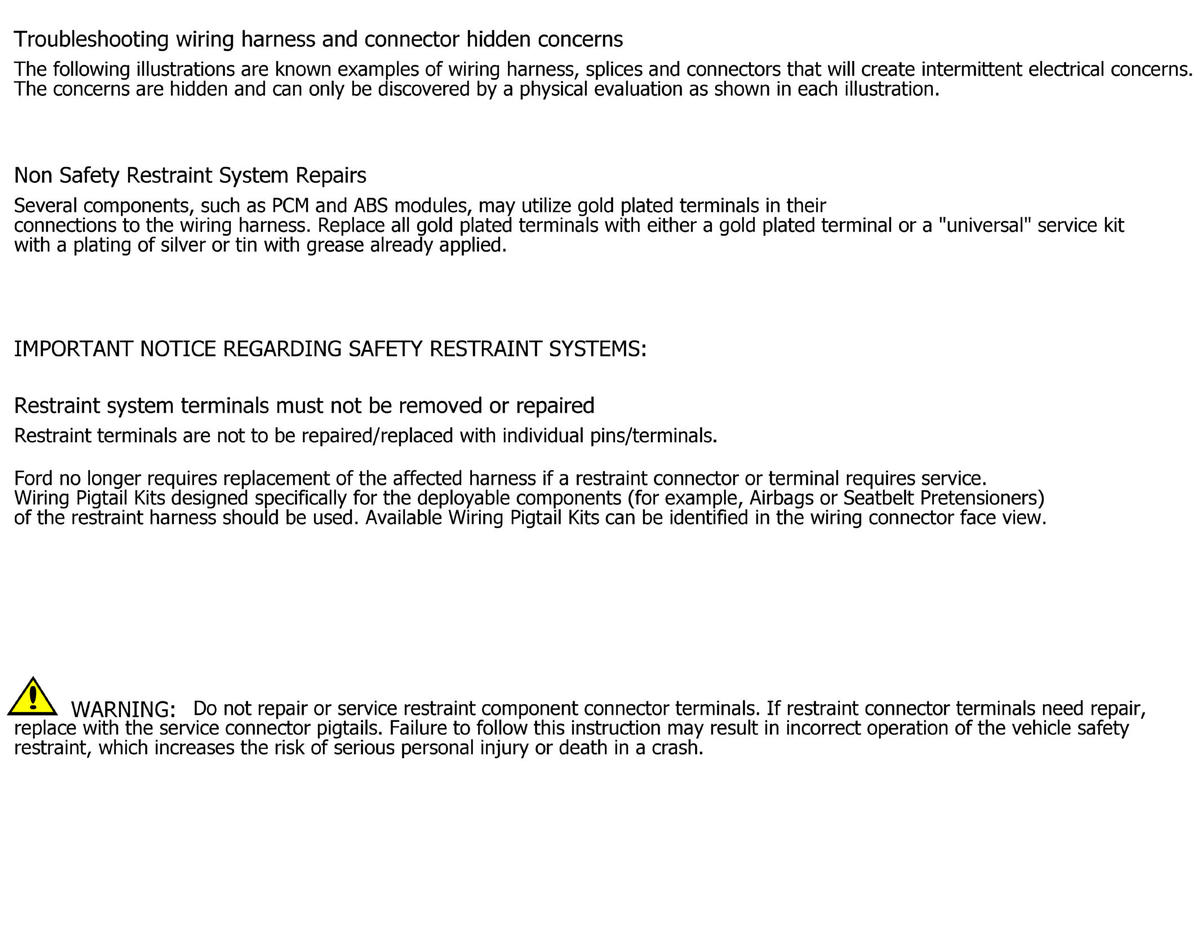

GFDWR66368Courtesy of FORD MOTOR COMPANY

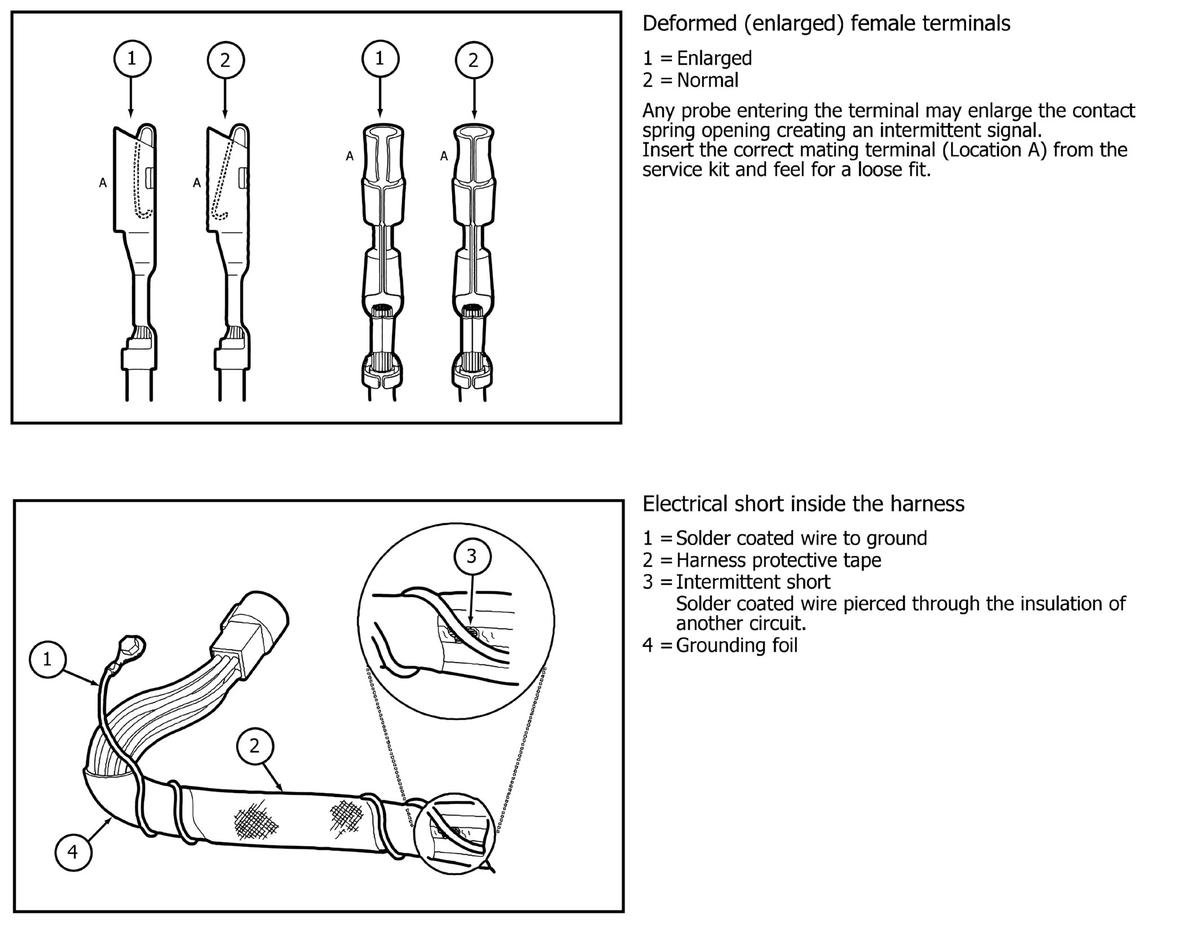

GFDWR66369Courtesy of FORD MOTOR COMPANY

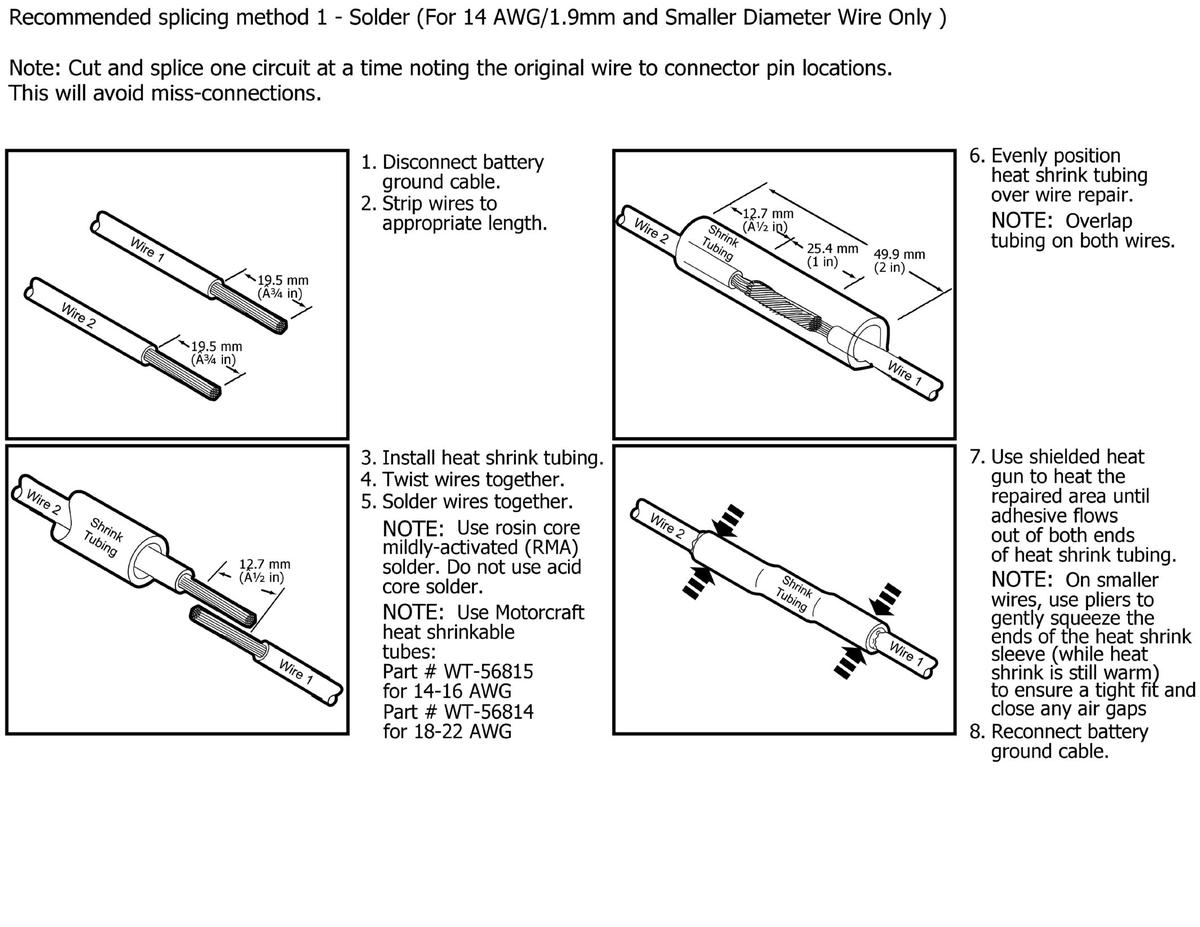

GFDWR66370Courtesy of FORD MOTOR COMPANY
