Fuel Charging and Controls - Component Location

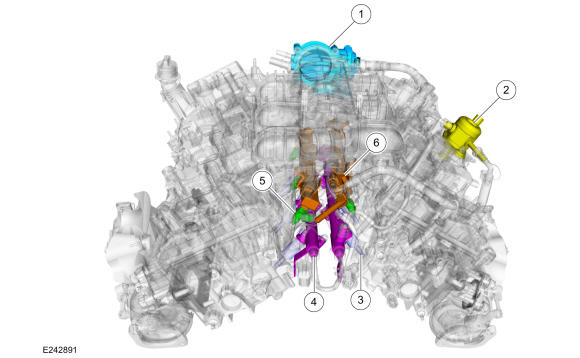

3.5L EcoBoost
| Item | Description |
|---|---|
| 1 | Throttle body Refer to: Throttle Body . |
| 2 | High-pressure fuel pump Refer to: High-Pressure Fuel Pump . |
| 3 | Direct injection fuel injector Refer to: Fuel Injectors . |
| 4 | Direct injection fuel rail Refer to: Direct Injection Fuel Rail LH . Refer to: Direct Injection Fuel Rail RH . |
| 5 | Port injection fuel injector Refer to: Fuel Injectors . |
| 6 | Port injection fuel rail Refer to: Port Injection Fuel Rail LH . Refer to: Port Injection Fuel Rail RH . |

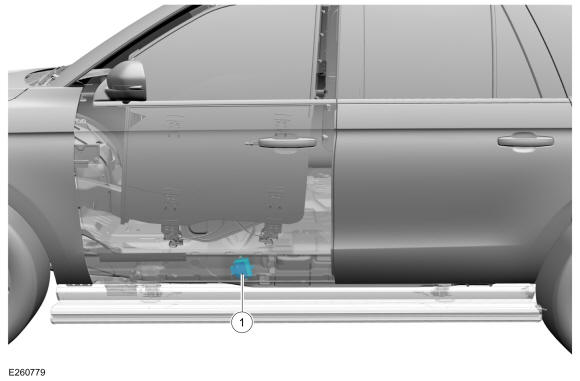

Fuel Pump Driver Module
| Item | Description |
|---|---|
| 1 | Fuel pump driver module. Refer to: Fuel Pump Driver Module (FPDM) . Comments: The fuel pump driver module is located midway on the outside of the left frame rail. |
