Connector Repair Procedures

WARNING: This page is about a different car, the 2018 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

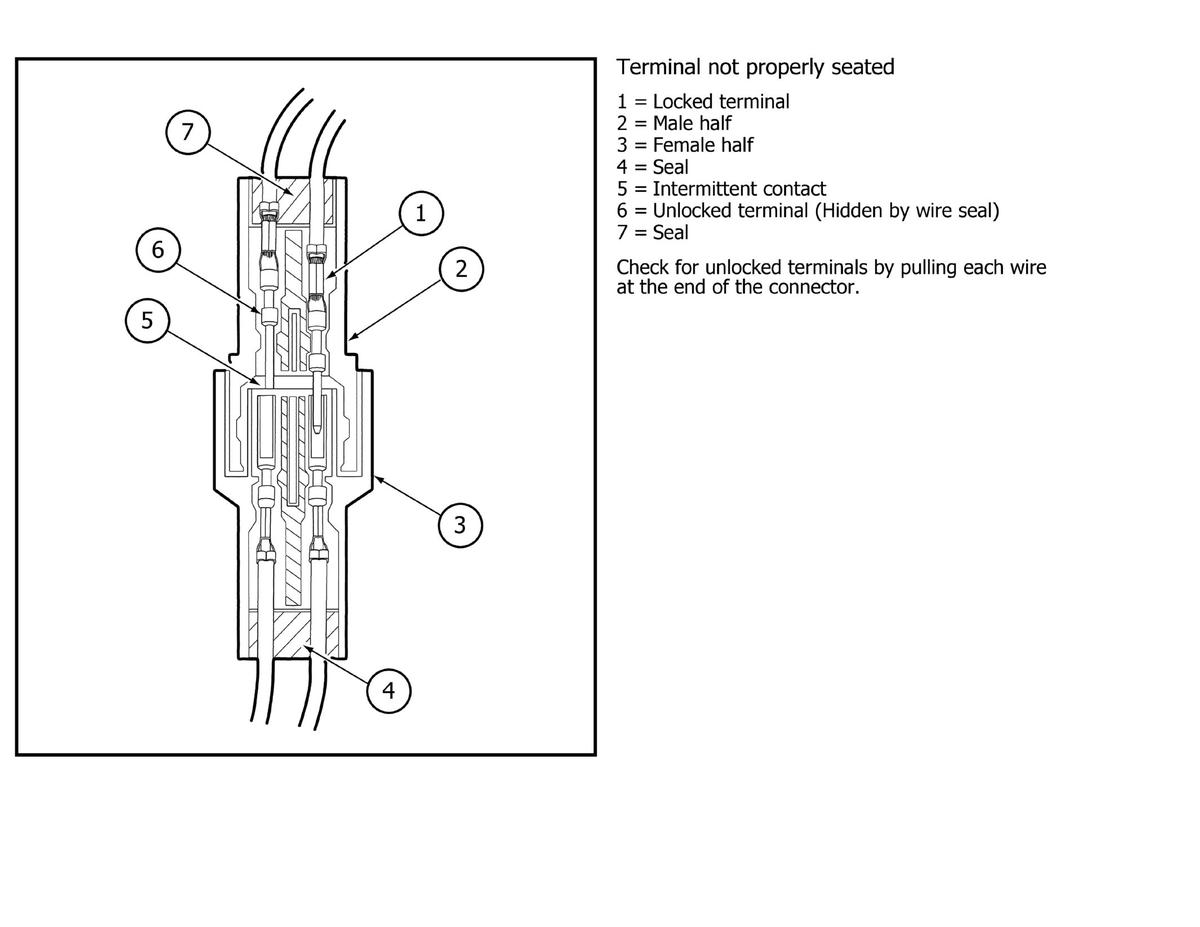

GFDWR13663Courtesy of FORD MOTOR COMPANY

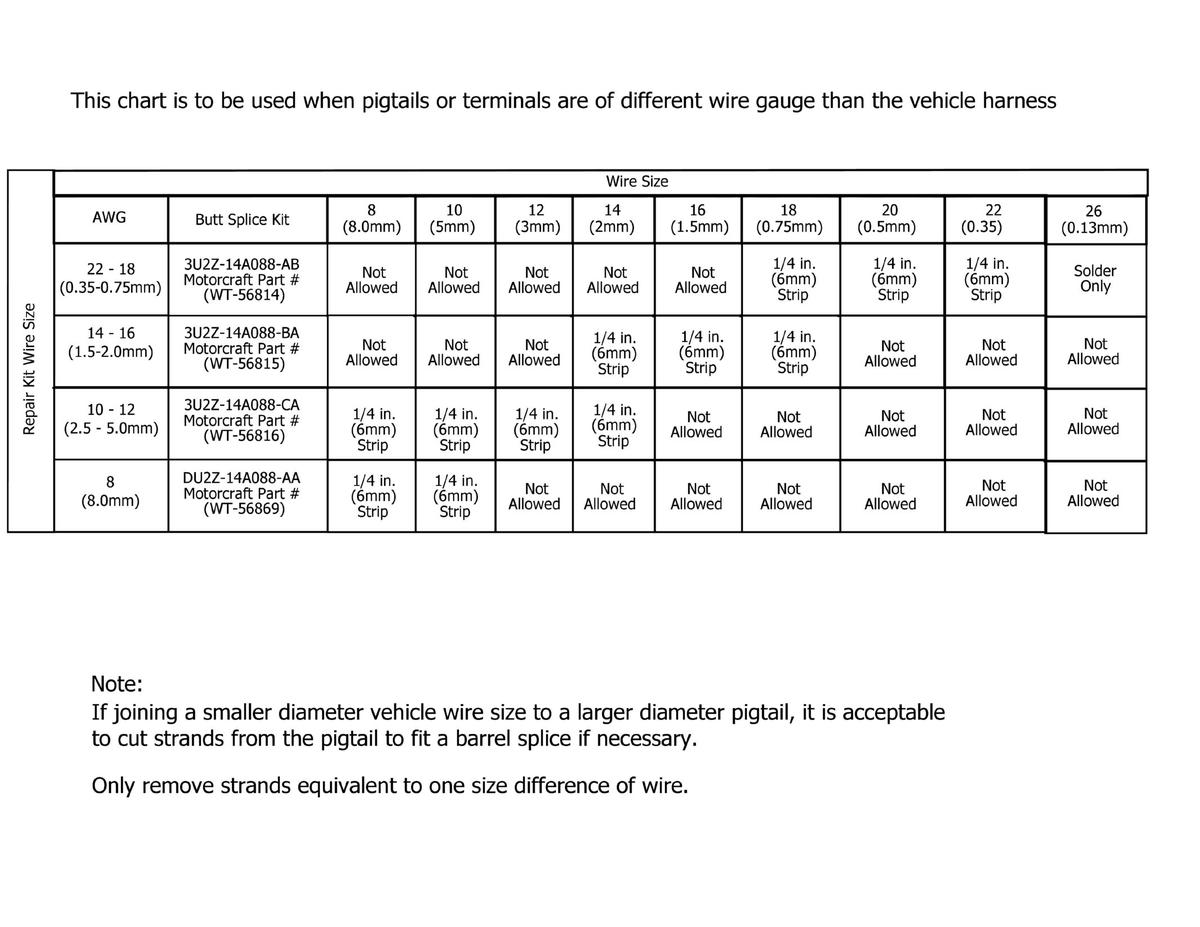

GFDWR13664Courtesy of FORD MOTOR COMPANY

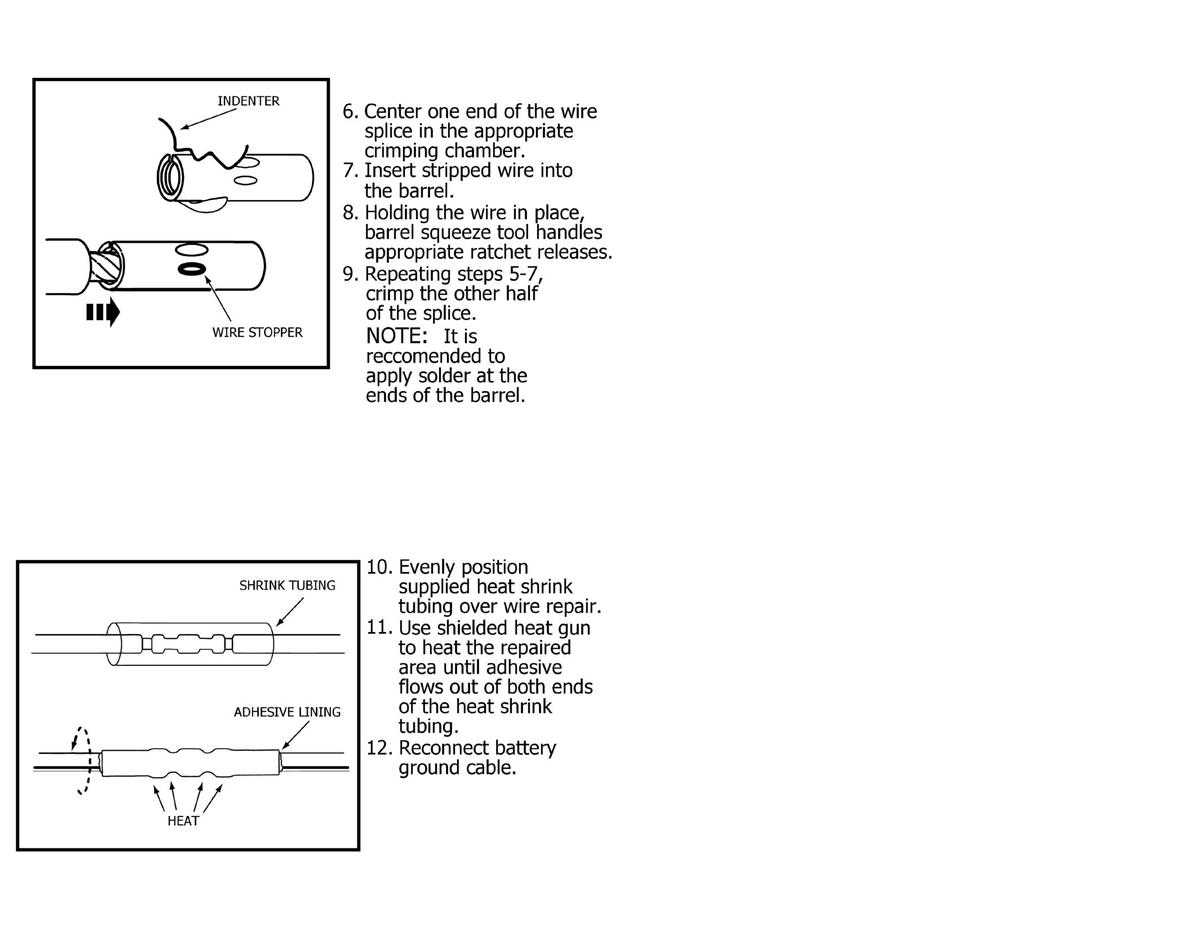

GFDWR13665Courtesy of FORD MOTOR COMPANY

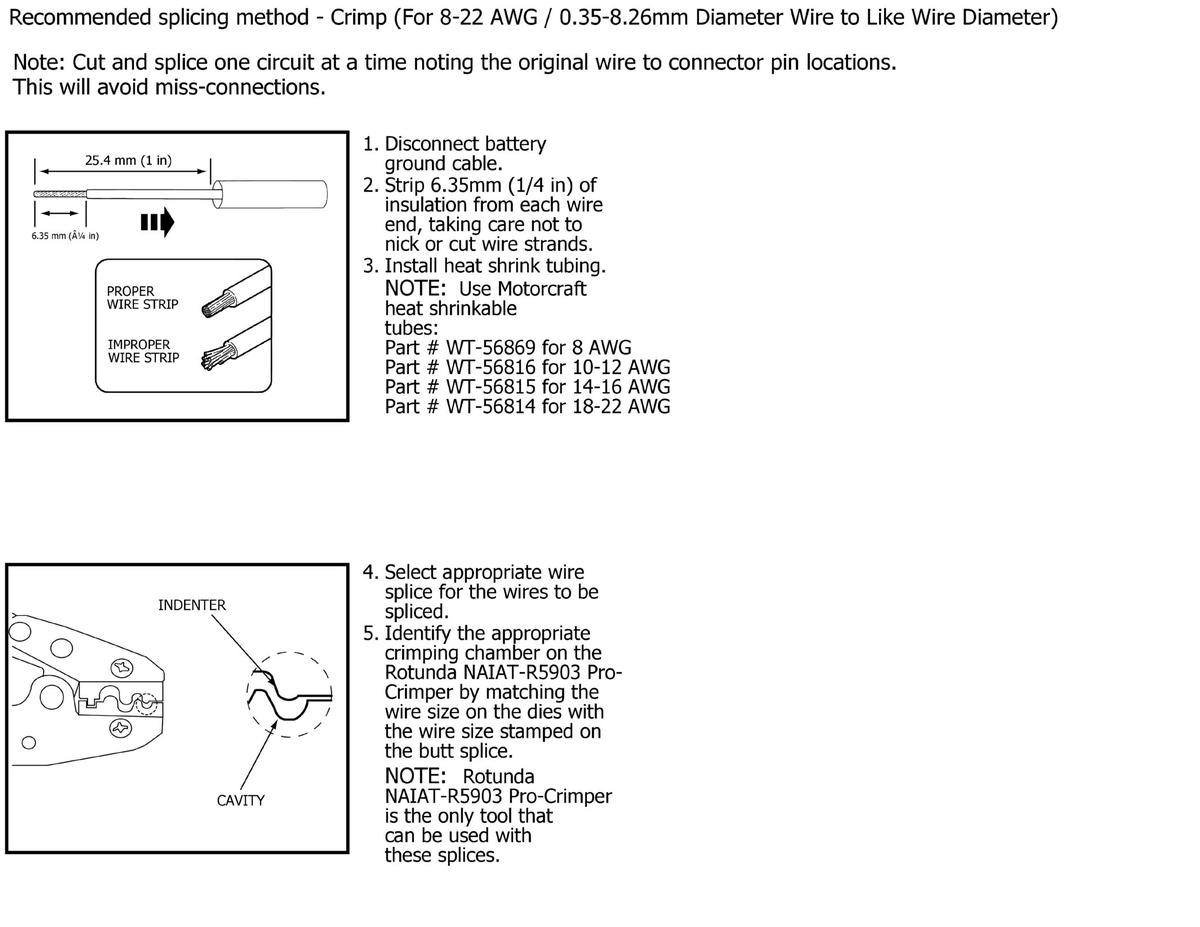

GFDWR13666Courtesy of FORD MOTOR COMPANY

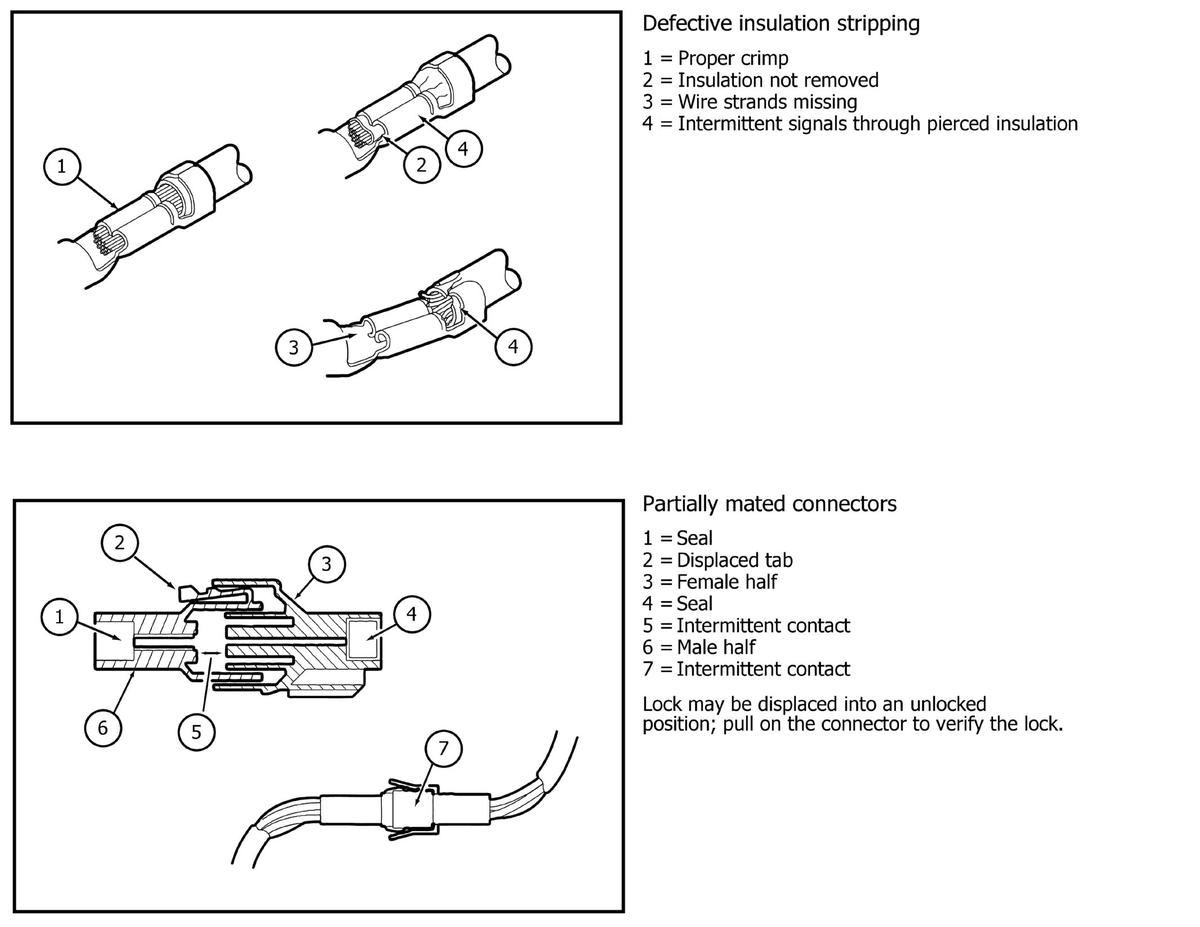

GFDWR13667Courtesy of FORD MOTOR COMPANY

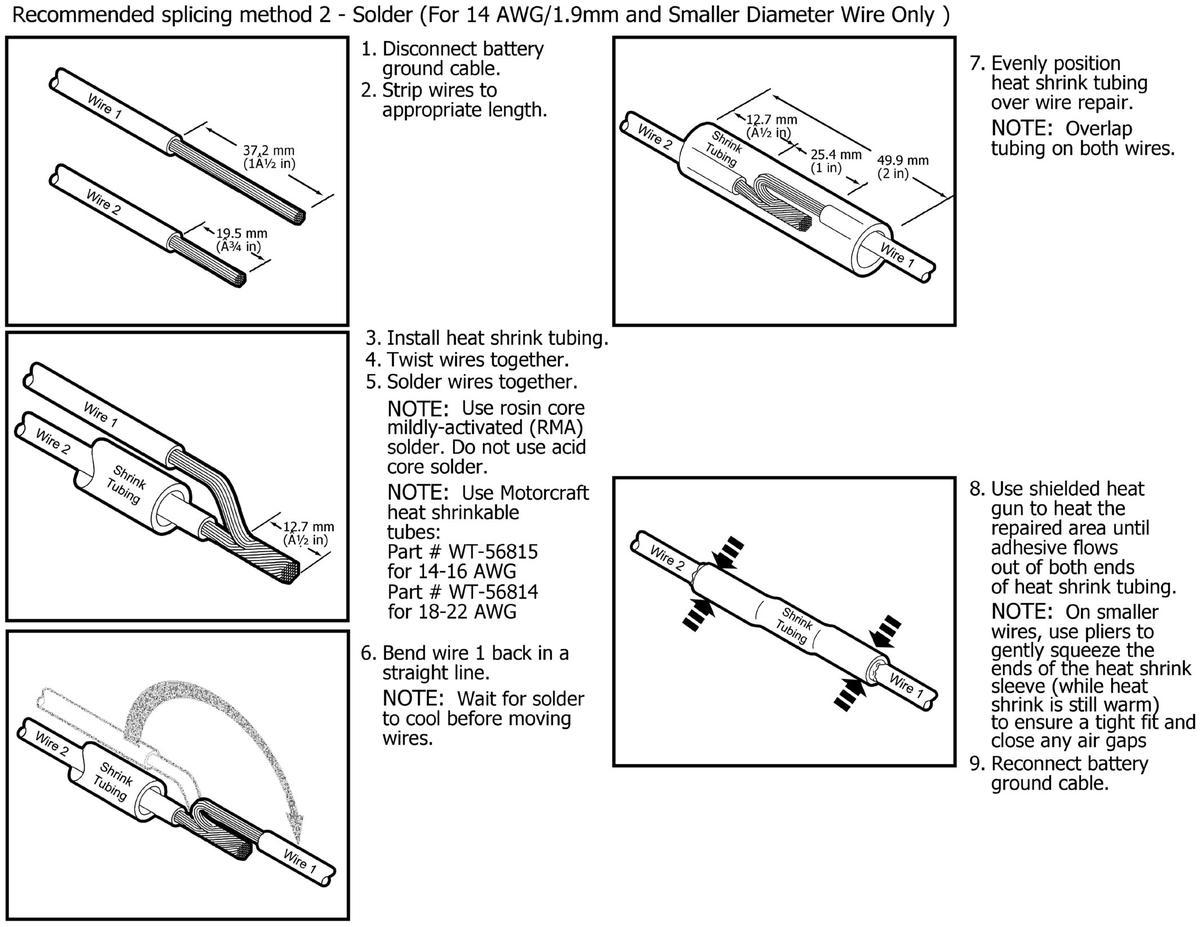

GFDWR13668Courtesy of FORD MOTOR COMPANY

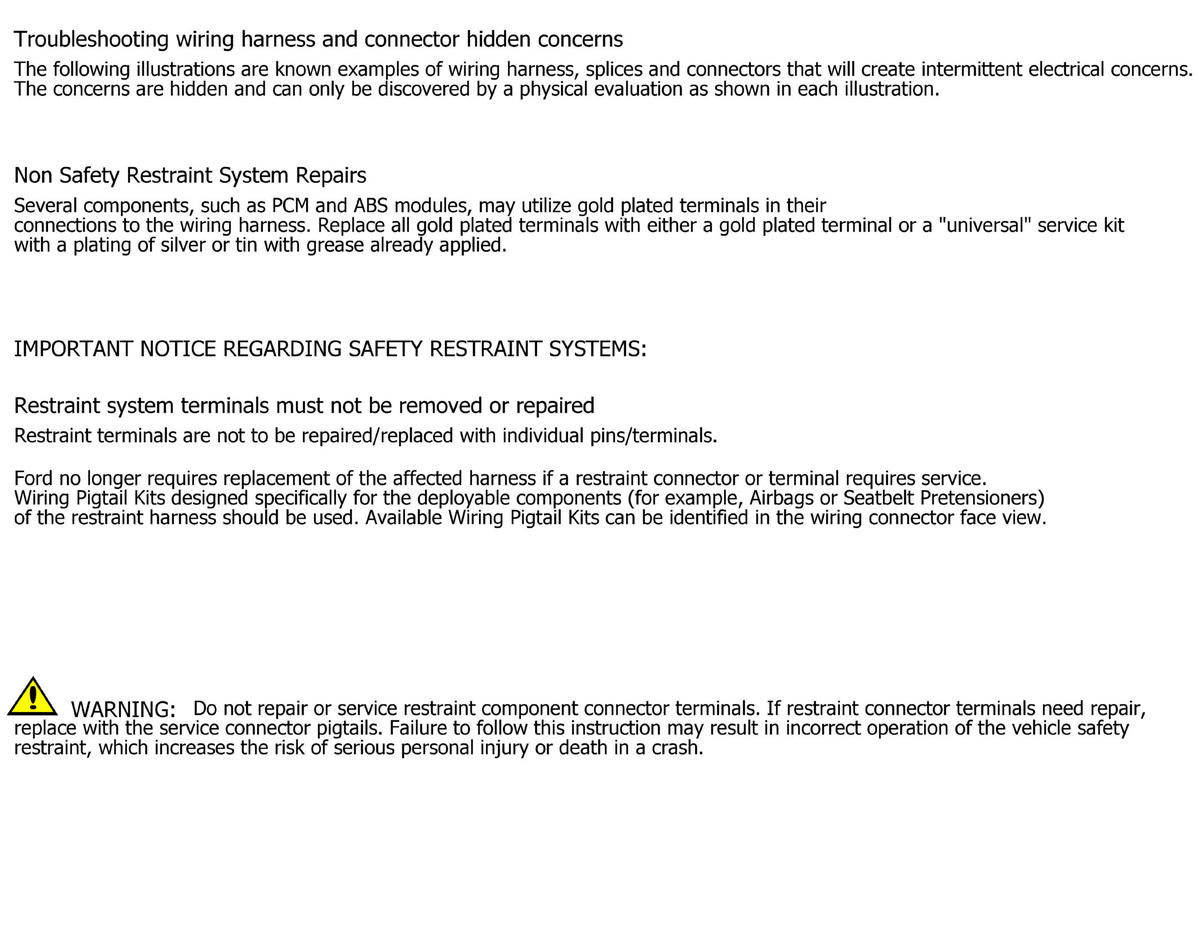

GFDWR13669Courtesy of FORD MOTOR COMPANY

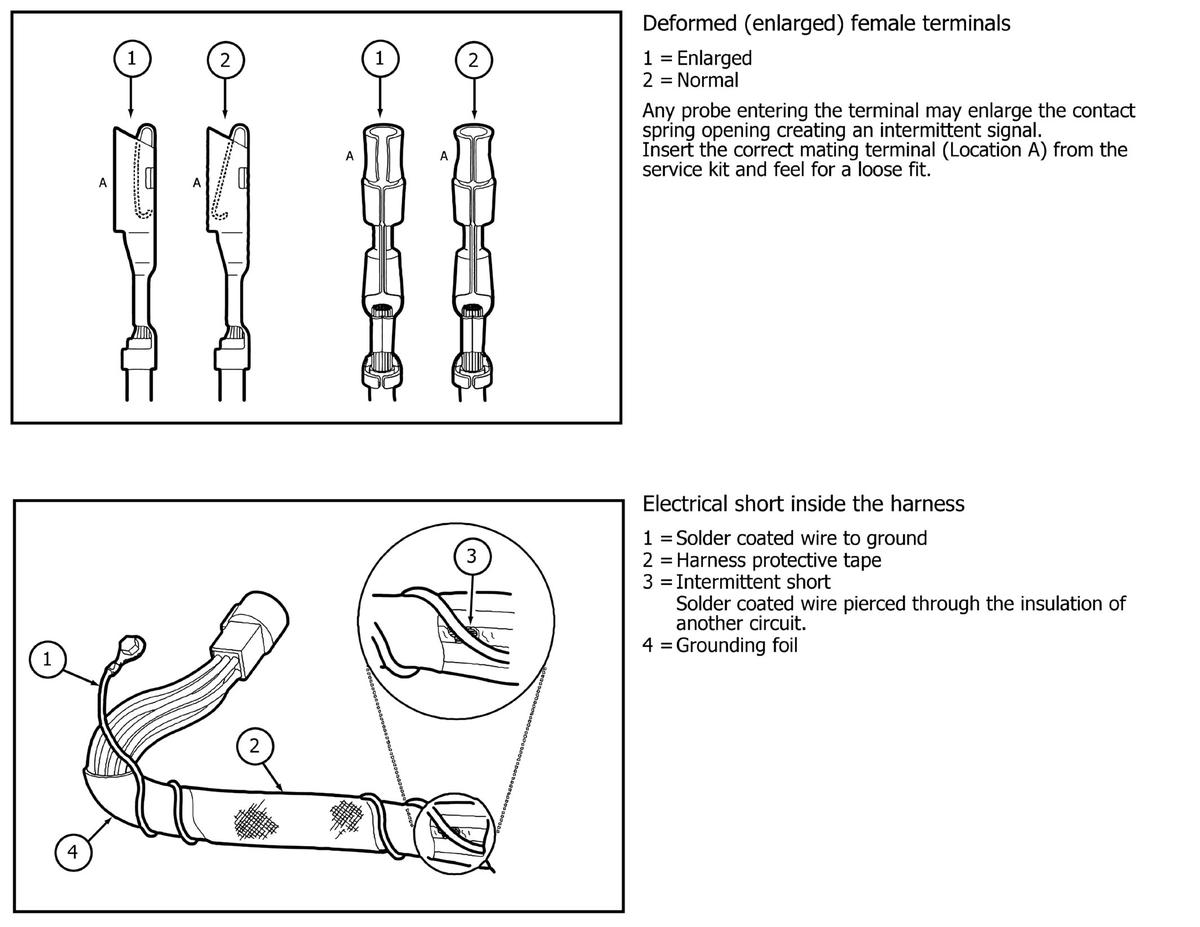

GFDWR13670Courtesy of FORD MOTOR COMPANY

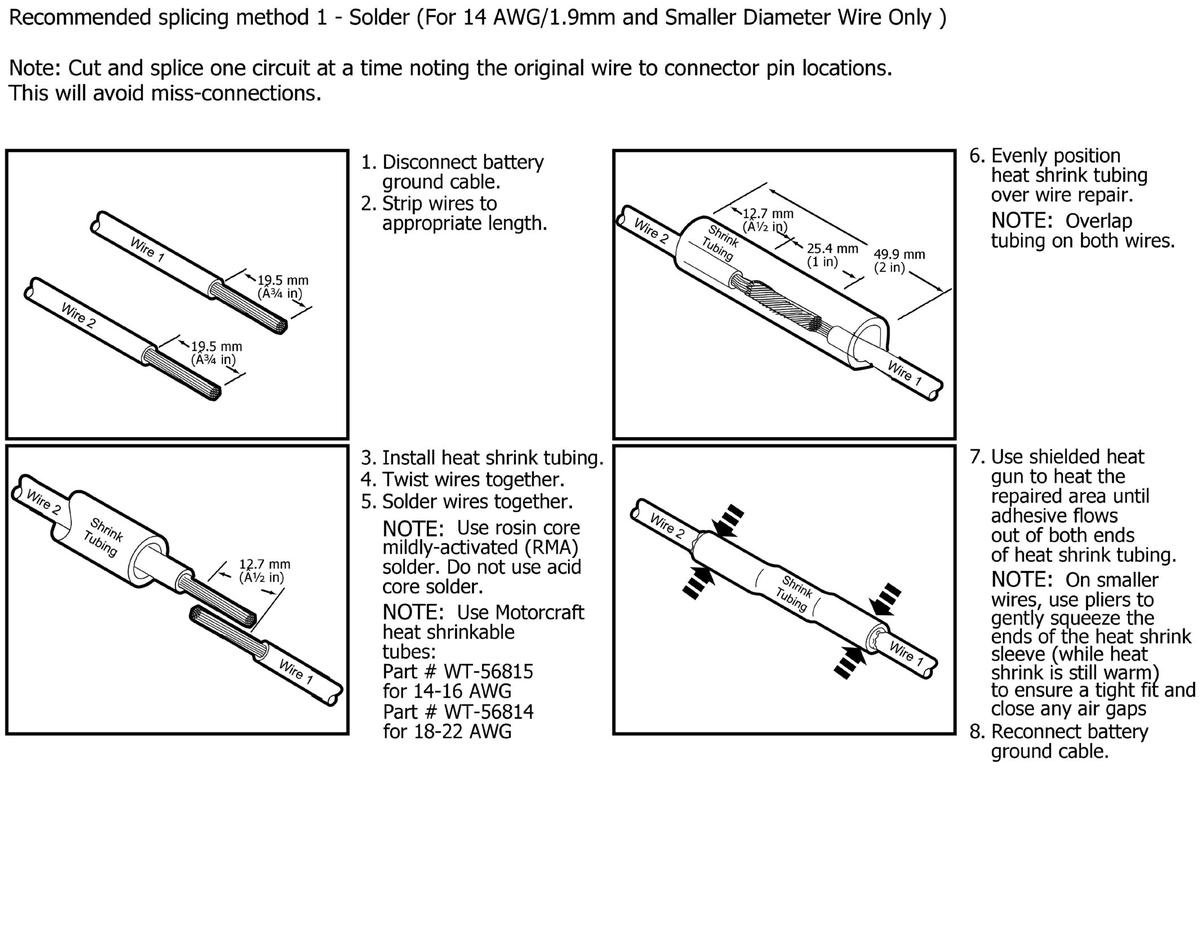

GFDWR13671Courtesy of FORD MOTOR COMPANY
