Valve Stem Diameter

Check

NOTE: Refer to the appropriate SPECIFICATIONS .

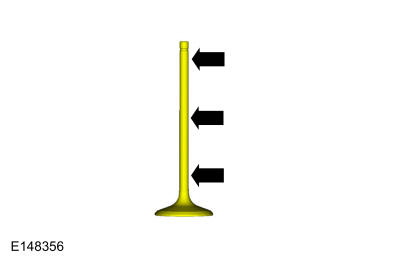

  1. Measure the diameter of each intake and exhaust valve stem at the points shown. Verify the diameter is within specification.
GFD272200Courtesy of FORD MOTOR COMPANY
