Removal - 2014

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
  1. Engine cover.

    (Refer to "ENGINE COVER ")

  2. Air cleaner assembly and air duct.

    (Refer to "AIR CLEANER ")

  3. Battery and battery tray.

    (Refer to "BATTERY ")

  4. Remove the ECM (Engine Control Module).

    (Refer to "ENGINE CONTROL MODULE (ECM) ")

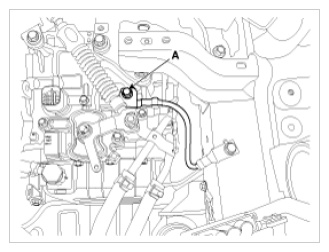

  5. Remove the ground line after removing the bolt (A).
    Fig 1: Identifying Engine Control Module Bolt
    G09886150Courtesy of HYUNDAI MOTOR AMERICA

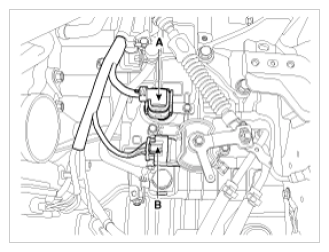

  6. Disconnect the solenoid valve connector (A) and inhibitor switch connector (B).
    Fig 2: Identifying Solenoid Valve And Inhibitor Switch Connector
    G09886151Courtesy of HYUNDAI MOTOR AMERICA

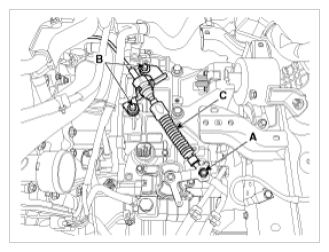

  7. Remove the control cable (C) after removing the nut (A) and the bolt (B).

    Tightening torque:

    1. 9.8 ~ 13.7 N.m (1.0 ~ 1.4 kgf.m, 7.2 ~ 10.1 lb-ft)
    2. 14.7 ~ 21.6 N.m (1.5 ~ 2.2 kgf.m, 10.9 ~ 15.9 lb-ft)
    Fig 3: Identifying Control Cable Nut And Bolt
    G09886152Courtesy of HYUNDAI MOTOR AMERICA

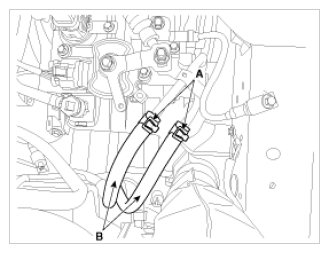

  8. Disconnect the hose (B) after removing the automatic transaxle fluid cooler hose clamp (A).
    Fig 4: Identifying Automatic Transaxle Fluid Cooler Hose Clamp
    G09886153Courtesy of HYUNDAI MOTOR AMERICA

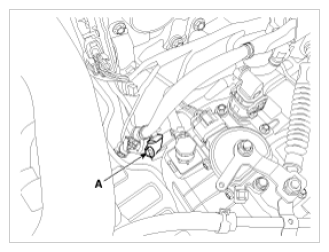

  9. Remove the wiring mounting bolt (A).
    Fig 5: Identifying Wiring Mounting Bolt
    G09886154Courtesy of HYUNDAI MOTOR AMERICA

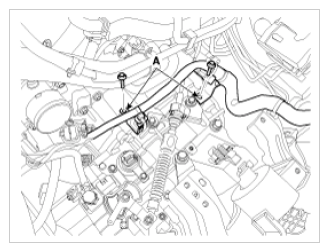

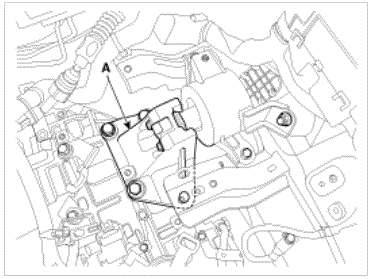

  10. Remove the solenoid valve connector and inhibitor switch connector wiring mounting bracket (A) and (B).

    Tightening torque:

    Bolt (A): 9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

    Bolt (B): 14.7 ~ 21.6 N.m (1.5 ~ 2.2 kgf.m, 10.9 ~ 15.9 lb-ft)

    Fig 6: Identifying Solenoid Valve Connector And Inhibitor Switch Connector Wiring Mounting Bracket
    G09886155Courtesy of HYUNDAI MOTOR AMERICA

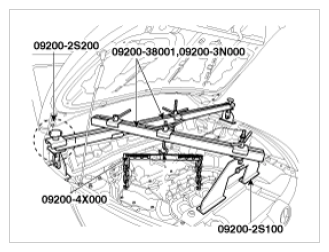

  11. Using the engine support fixture (beam No.: 09200-38001 or 09200-3N000, supporter No.: 09200-2S100, 09200-2S200, adapter No.: 09200-4X000), hold the engine and transaxle assembly safely.
    Fig 7: Holding Engine And Transaxle Assembly Using Tools
    G09886156Courtesy of HYUNDAI MOTOR AMERICA

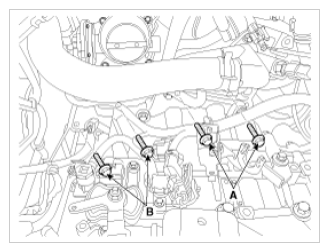

  12. Remove the automatic transaxle upper mounting bolt (A-2ea) and the starter motor mounting bolt (B-2ea).

    Tightening torque:

    (A, B) 42.2 ~ 54.0 N.m (4.3 ~ 5.5 kgf.m, 31.1 ~ 39.8 lb-ft)

    Fig 8: Identifying Automatic Transaxle Upper Mounting Bolt
    G09886157Courtesy of HYUNDAI MOTOR AMERICA
  13. Remove the automatic transaxle mounting bracket cover (A).
    Fig 9: Identifying Service Cover
    G00554114Courtesy of HYUNDAI MOTOR AMERICA
  14. Remove the automatic transaxle mounting bracket bolts (A).

    Tightening torque:

    88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.8 lb-ft)

    Fig 10: Identifying Automatic Transaxle Mounting Bracket Bolt
    G00554135Courtesy of HYUNDAI MOTOR AMERICA

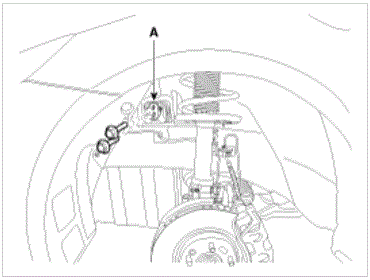

  15. Remove the automatic transaxle mounting support bracket (A).

    Tightening torque:

    58.8 ~ 78.5 N.m (6.0 ~ 8.0 kgf.m, 43.4 ~ 57.9 lb-ft)

    Fig 11: Identifying Automatic Transaxle Mounting Support Bracket
    G00554136Courtesy of HYUNDAI MOTOR AMERICA
  16. Lift the vehicle with a jack.

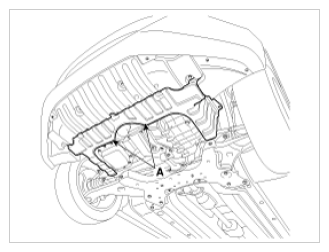

  17. Remove the under cover (A).

    Tightening torque:

    6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

    Fig 12: Identifying Under Cover
    G09886159Courtesy of HYUNDAI MOTOR AMERICA
  18. Remove the roll rod bracket (A).

    Tightening torque:

    Nut (B): 107.9 ~ 127.5 N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94.0 lb-ft)

    Bolts (C): 49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb-ft)

    Fig 13: Identifying Roll Rod Bracket
    G00554137Courtesy of HYUNDAI MOTOR AMERICA

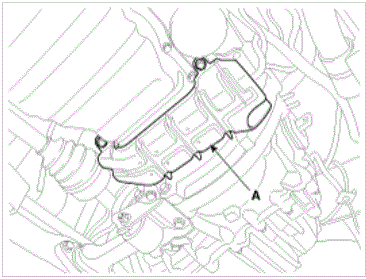

  19. Remove the air guide bracket (A).

    Tightening torque:

    8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

    Fig 14: Identifying Air Guide Bracket
    G00554138Courtesy of HYUNDAI MOTOR AMERICA
  20. Remove the drive shaft assembly.

    (Refer to "FRONT DRIVESHAFT ")

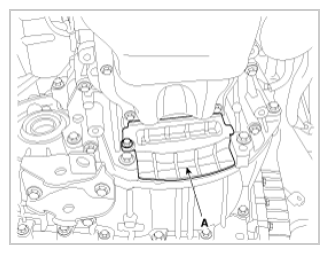

  21. Remove the dust cover (A).

    Tightening torque:

    42.2 ~ 48.1 N.m (4.3 ~ 4.9 kgf.m, 31.1 ~ 35.4 lb-ft)

    Fig 15: Identifying Dust Cover
    G09886161Courtesy of HYUNDAI MOTOR AMERICA

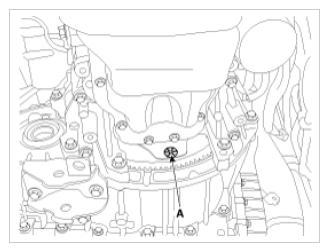

  22. Remove the torque converter mounting bolt (A-4ea) with rotating the crankshaft.

    Tightening torque:

    45.1 ~ 52.0 N.m (4.6 ~ 5.3 kgf.m, 33.3 ~ 38.3 lb-ft)

    Fig 16: Identifying Torque Converter Mounting Bolt
    G09886162Courtesy of HYUNDAI MOTOR AMERICA
    NOTE: • Lubricant should be applied on thread of bolt before tightening.

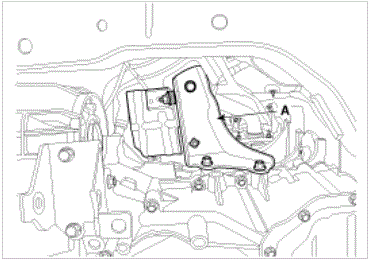

  23. Remove the heat protector (A).

    Tightening torque:

    19.6 ~ 29.4 N.m (2.0 ~ 3.0 kgf.m, 14.5 ~ 21.7 lb-ft)

    Fig 17: Identifying Heat Protector
    G00554139Courtesy of HYUNDAI MOTOR AMERICA

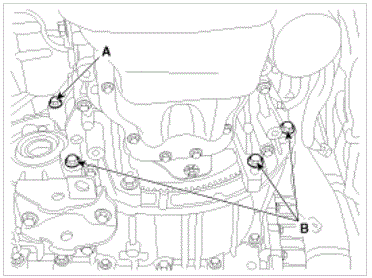

  24. Remove the automatic transaxle with a jack after removing the mounting bolt (A-2ea, B-3ea).

    Tightening torque:

    1. 42.2 ~ 53.9 N.m (4.3 ~ 5.5 kgf.m, 31.1 ~ 39.8 lb-ft)
    2. 42.2 ~ 48.1 N.m (4.3 ~ 4.9 kgf.m, 31.1 ~ 35.4 lb-ft)
      Fig 18: Identifying Automatic Transaxle Bolts
      G00554140Courtesy of HYUNDAI MOTOR AMERICA
