Repair procedures: Replacement

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Recover the refrigerant with a recovery/charging station.
  3. Disconnect the A/C pressure transducer connector (A).

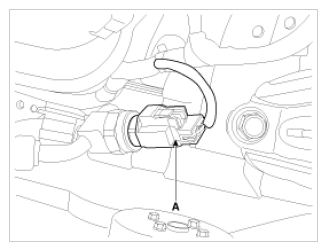

    Fig 1: Identifying A/C Pressure Transducer Connector
    G09887899Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the A/C pressure transducer (A).

    Tightening torque:  10.0 ~ 12.0 N.m (1.02~ 1.22 kgf.m, 7.4~8.8 lb-ft)

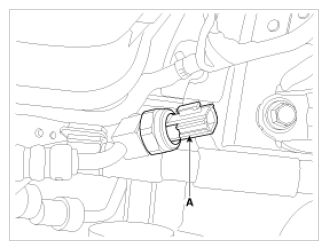

    Fig 2: Identifying A/C Pressure Transducer
    G09887900Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Be careful not to bend the liquid & suction pipe.
  5. Install in the reverse order of removal.

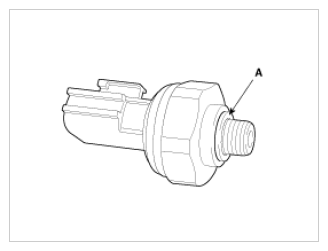

    Fig 3: Identifying O-Ring
    G09887901Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When installing, replace it with a new O-ring (A).
