Washer Hose Repair

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This procedure may be carried out on rubber hoses only. If a plastic washer hose is damaged, a new washer hose must be installed.

1.

Locate and verify the damaged washer hose.

2.

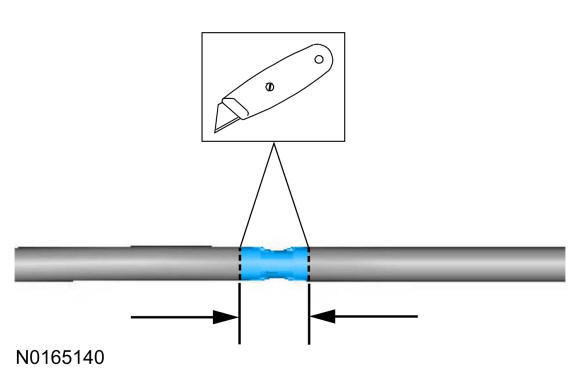

Cut the hose cleanly and remove the damaged portion of the washer hose. Dimension: 0.5000 in (12.7 mm).

GFD137855

Courtesy of FORD MOTOR COMPANY

3.

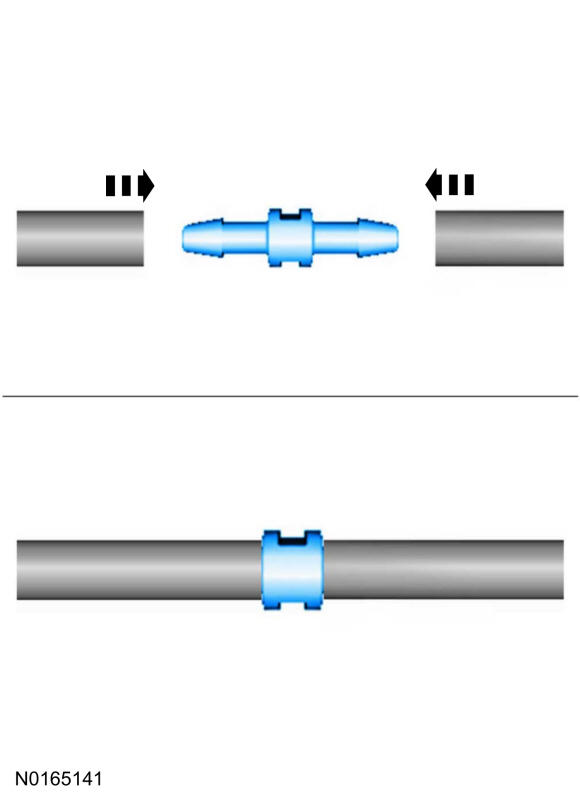

Install a windshield washer hose adapter between the cut ends of the hose.

GFD137856

Courtesy of FORD MOTOR COMPANY

4.

NOTE: In difficult cases, clamping may be required.

If necessary, install a segment of 6.4 mm (0.25 in) ID black rubber hose over the ends of the washer hose and clamp both ends of the rubber hose using spring clamps.
