Repair procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Take care not to scratch the center fascia panel and related parts.
Eject all the disc before removing the audio unit to prevent damaging the CD player's load mechanism.

Disconnect the negative (-) battery terminal.

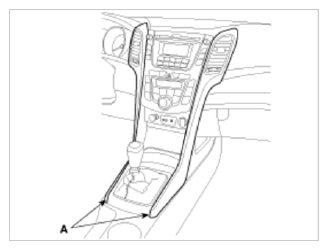

Remove the crash pad center garnish (A).

Fig 1: Identifying Crash Pad Center Garnish
Courtesy of HYUNDAI MOTOR AMERICA

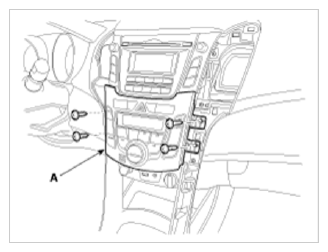

Remove the heater & A/C controller unit (A) after loosening the mounting screws (4EA).

Fig 2: Identifying Heater, A/C Controller Unit Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the mounting screws (4EA).
Remove the audio assembly (A) after disconnecting the connectors and cables (B).

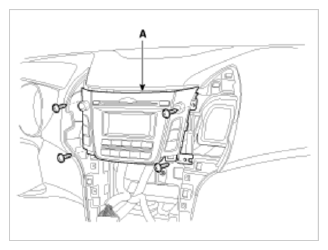

Fig 3: Identifying Audio Assembly
Courtesy of HYUNDAI MOTOR AMERICA

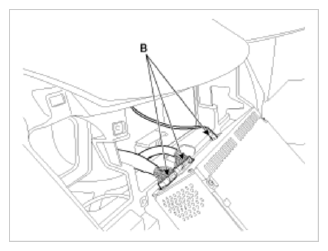

Fig 4: Identifying Audio Assembly Cables
Courtesy of HYUNDAI MOTOR AMERICA

NOTE: If the CD does not eject, do not attempt to remove it because the audio unit may be damaged. Contact an authorized dealership for assistance.
