Repair procedures: Replacement

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to protect your hands.

NOTE:

Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

Detach the mounting clips, remove the rear transverse trim (A).

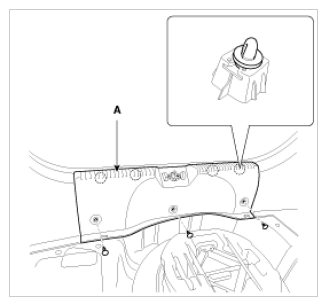

Fig 1: Identifying Rear Transverse Trim Mounting Clips
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- Replace any damaged clips.
