Cruise Control Module (CCM): Removal

WARNING: This page is about a different car, the 2019 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure, refer to Health and Safety Precautions . Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions .
Remove the front bumper cover. Refer to: Front Bumper Cover .
Release the CCM grommets from the ball studs and remove the CCM.
- Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY
Remove the active grille shutter. Refer to: Active Grille Shutter .

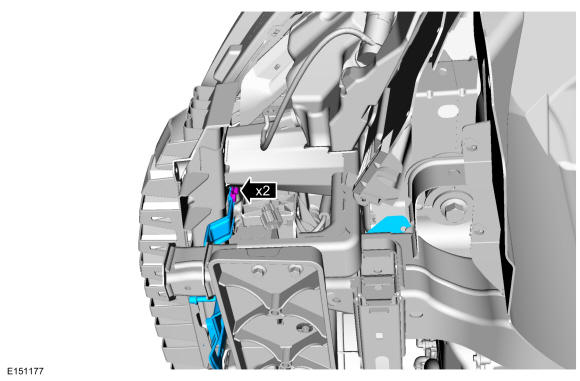

Remove the CCM bracket bolts.
Torque

: 20 lb.ft (27 Nm)

Courtesy of FORD MOTOR COMPANY

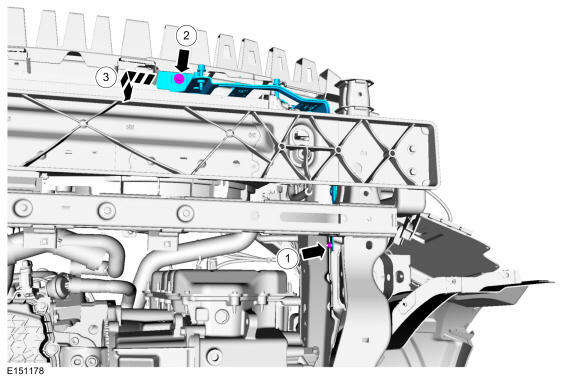

Remove the CCM bracket.
1. Remove the CCM bracket nut.
  Torque

  : 80 lb.in (9 Nm)
2. Remove the CCM bracket bolt.
  Torque

  : 80 lb.in (9 Nm)
3. Slide the CCM bracket out of the front bumper slot.

Courtesy of FORD MOTOR COMPANY
