Heated Rear Seat Module: Removal

  1. Remove the rear seat cushion. Refer to: Rear Seat Cushion .

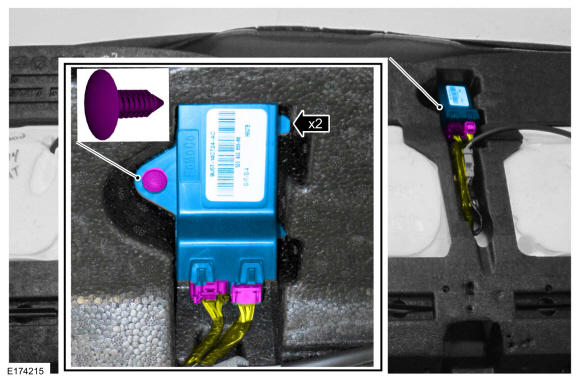

  2. Disconnect the 2 electrical connectors. Remove the pin-type retainer and the heated rear seat module.
GFD230281Courtesy of FORD MOTOR COMPANY
