Main Control Valve Body: Installation

  1. NOTE: Be careful not to pinch the TSS, OSS or TR sensor wiring harnesses under the valve body, or damage to the wiring harness or connectors may occur.
    NOTE: Make sure that the manual pin (part of the TR sensor) is correctly installed in the manual valve.

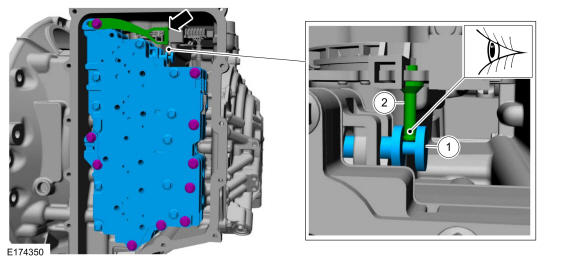

    Position the TSS, OSS and TR sensor wiring harnesses aside, align the manual pin in the manual valve, install the main control valve body and loosely install the bolts.

    1. Manual valve
    2. Manual pin

    GFD236982Courtesy of FORD MOTOR COMPANY
  2. NOTE: Tighten the bolts in the sequence shown below.

    Install the main control valve body bolts. Tighten the bolts in the sequence shown below.

    Torque: 106 lb.in (12 Nm)

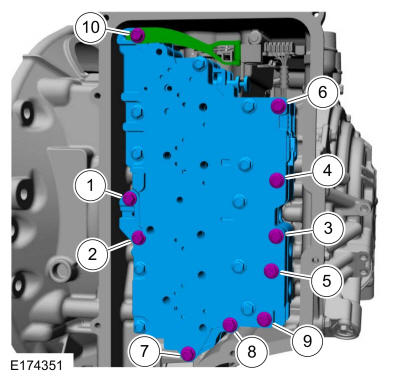

    Fig 1: Main Control Valve Body Tightening Sequence
    GFD236983Courtesy of FORD MOTOR COMPANY
  3. NOTE: Make sure not to pinch the TSS, OSS or TR sensor wiring harnesses behind the solenoid body when positioning the solenoid body in place.

    Install the solenoid body bolts hand-tight.

    1. Bolt

      Distance: 1.65in (42mm)

    2. Bolt

      Distance: 2.48in (63mm)

    3. Bolt

      Distance: 3.15in (80mm)

    4. Bolt

      Distance: 3.74in (95mm)

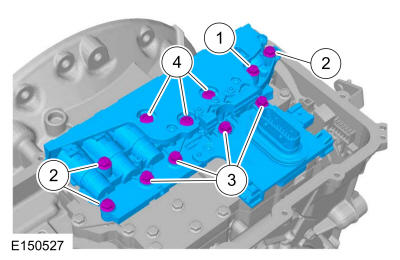

    Fig 2: Solenoid Body Tightening Sequence (1 of 2)
    GFD236984Courtesy of FORD MOTOR COMPANY
  4. Tighten the solenoid body bolts in the sequence shown below.

    Torque: 106 lb.in (12 Nm)

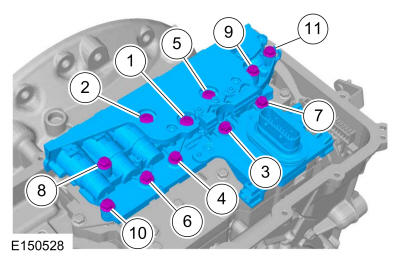

    Fig 3: Solenoid Body Tightening Sequence (2 of 2)
    GFD236985Courtesy of FORD MOTOR COMPANY

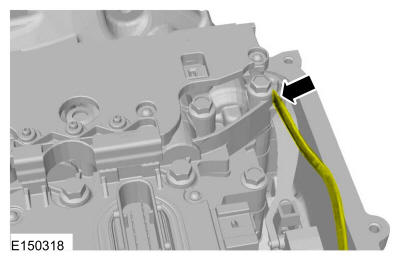

  5. Route the OSS sensor wiring harness into the retainer.
    GFD236979Courtesy of FORD MOTOR COMPANY

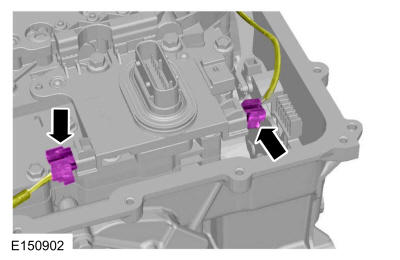

  6. Connect the TSS and OSS sensor electrical connectors.
    GFD236978Courtesy of FORD MOTOR COMPANY

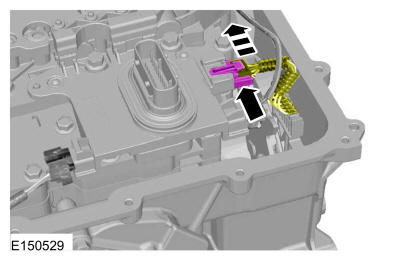

  7. Connect the TR sensor electrical connector and slide the lock tab to the LOCK position.
    GFD236986Courtesy of FORD MOTOR COMPANY
  8. Install the main control cover. Refer to: Main Control Cover - 2.7L EcoBoost (238kW/324PS) . Refer to: Main Control Cover - 3.0L EcoBoost . Refer to: Main Control Cover - 3.7L Duratec (227kW/301PS) .
  9. If a replacement transmission assembly is being installed or a new solenoid body is installed, the PCM must be reflashed with a new solenoid body strategy and identification data file. Refer to: Transmission Strategy Download .
