Transfer Shaft: Disassembly

  1. Inspect the transfer shaft bearings for damage or excessive wear. Install new if necessary.
    GFD237444Courtesy of FORD MOTOR COMPANY

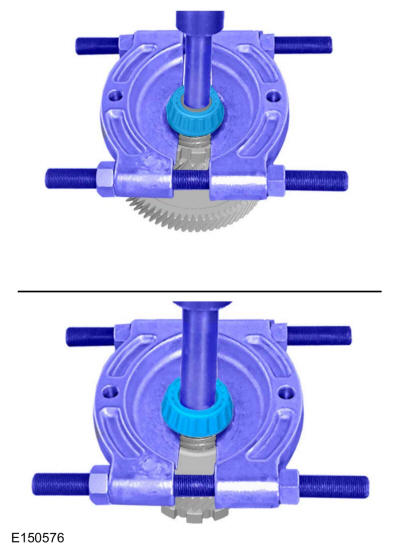

  2. Using the general equipment, remove the transfer shaft bearings. Use the General Equipment: Bearing Separator, Use the General Equipment: Hydraulic Press.
    GFD237445Courtesy of FORD MOTOR COMPANY
  3. Inspect the transfer shaft assembly for damage.

    1. Inspect the park pawl wheel for damage and install new, if necessary.
    2. Inspect the transfer shaft and transfer shaft input gear for damage and install new, if necessary.

GFD237446Courtesy of FORD MOTOR COMPANY
