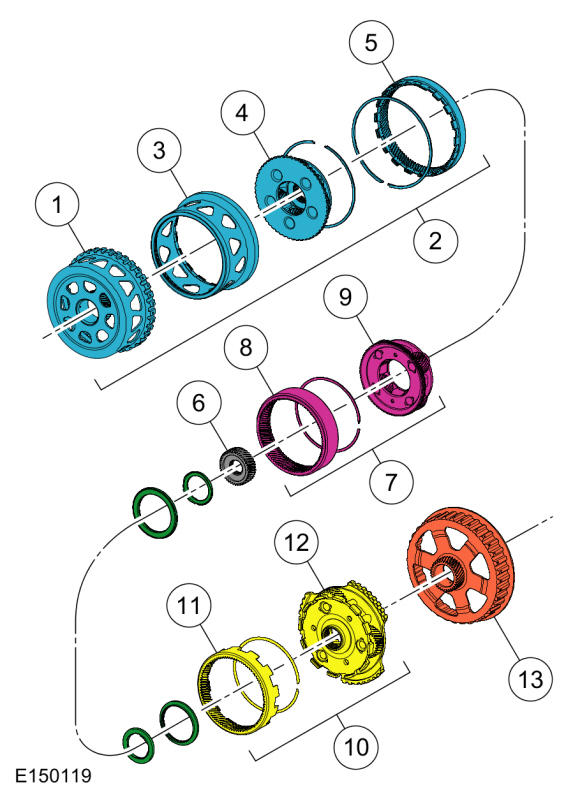

Planetary Gearset Exploded View
| Item | Description |
|---|---|
| 1 | Gear and shell assembly - front sun |
| 2 | Front planetary carrier/rear planetary ring gear assembly |
| 3 | Planetary carrier shell - front |
| 4 | Carrier - front planetary |
| 5 | Ring gear - rear planetary |
| 6 | Gear - center planetary sun |
| 7 | Center planetary carrier/front ring gear assembly |
| 8 | Ring gear - front planetary |
| 9 | Planetary carrier assembly - center |
| 10 | Rear planetary carrier/center ring gear assembly |
| 11 | Gear - center ring |
| 12 | Carrier - rear planetary |
| 13 | Gear - rear planetary sun |
