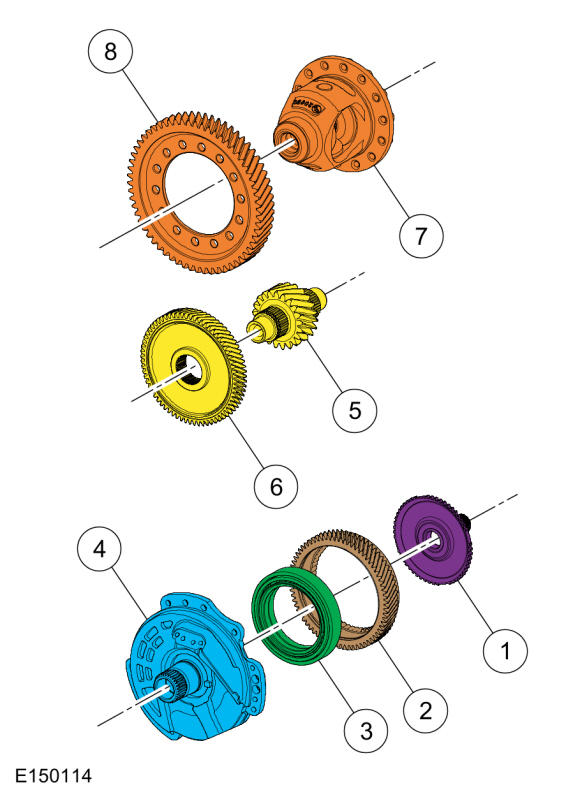

Final Drive Gearset Exploded View

GFD236876Courtesy of FORD MOTOR COMPANY
Item  Description
1 Front planetary carrier hub
2 Transfer shaft drive gear
3 Transfer shaft drive gear bearing
4 Stator support assembly
5 Transfer shaft
6 Transfer gear
7 Differential assembly
8 Differential ring gear
