Transmission Range Control Module (TRCM): Installation

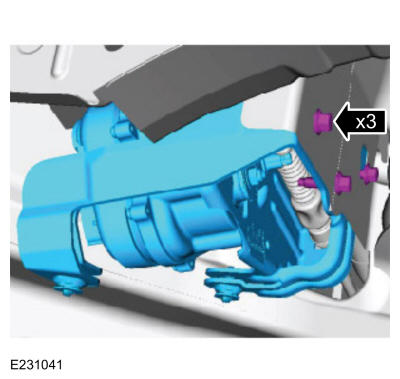

  1. Install the TRCM and the bolts.

    Torque: 133 lb.in (15 Nm)

    GFD237594Courtesy of FORD MOTOR COMPANY

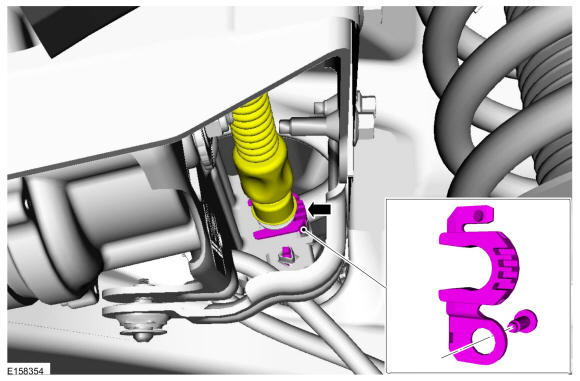

  2. Attach the selector lever cable to the selector lever cable bracket and install the retaining clip bolt.

    Torque: 62 lb.in (7 Nm)

    GFD237593Courtesy of FORD MOTOR COMPANY

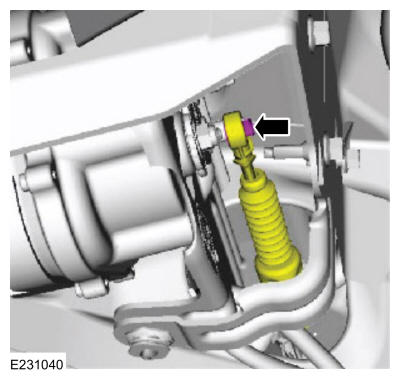

  3. Connect the selector lever cable to the TRCM lever.
    GFD237592Courtesy of FORD MOTOR COMPANY

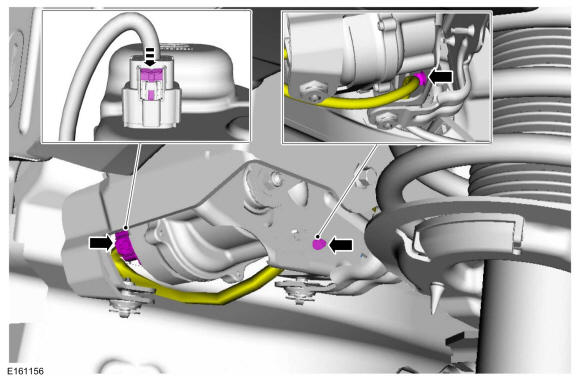

  4. Attach the wiring harness retainer and connect the TRCM electrical connector.
    GFD237595Courtesy of FORD MOTOR COMPANY
  5. Install the RH fender splash shield. Refer to: Fender Splash Shield .
  6. Adjust the selector lever cable. Refer to: Selector Lever Cable Adjustment .
